Ebony Twilight Metallic

Jet Black, Perforated Leather-Appointed Seat Trim

EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

AXLE, 3.49 FINAL DRIVE RATIO

DENALI PREFERRED EQUIPMENT GROUP includes standard equipment

WHEELS, 20" (50.8 CM) ALUMINUM PAINTED WHEELS WITH AFTER MIDNIGHT FINISH

BLACK DIAMOND EDITION includes (PEC) Denali Ultimate Package content and (QH8) 20" aluminum painted wheels with After Midnight finish

DENALI ULTIMATE PACKAGE includes (CWM) Denali Technology Package content, (C3U) Dual SkyScape 2-panel power sunroof, (F45) Adaptive Ride Control and (V92) Trailering Package

DENALI TECHNOLOGY PACKAGE includes (UV2) HD Surround Vision, (KSG) Adaptive Cruise Control, (UGN) Enhanced Automatic Emergency Braking, (DRZ) Rear Camera Mirror and (CWA) Rear Camera Mirror Washer

TRAILERING PACKAGE includes factory-installed hitch, 4000 lbs. towing, 7-pin wiring harness, Class III hitch, (V08) heavy-duty cooling system, (PZ8) Hitch Guidance with Hitch View and (CTT) Hitch Guidance Also includes (KW7) 170-amp alternator with (LGX) 3.6L V6 engine.)

LPO, FLOOR LINER PACKAGE includes (RIA) front and second row all-weather floor liner, LPO, (RIB) third row all-weather floor liner, LPO and (CAV) integrated cargo liner, LPO

LPO, ROADSIDE SAFETY PACKAGE includes (RYT) First-Aid Kit, LPO and (S08) Highway Safety Kit, LPO

COOLING SYSTEM, HEAVY-DUTY

ALTERNATOR, 170 AMPS

HITCH GUIDANCE, TRAILERING ASSIST GUIDELINE

HITCH GUIDANCE WITH HITCH VIEW

ADAPTIVE RIDE CONTROL Includes (FE5) Performance Ride and Handling Suspension.)

SUSPENSION, PERFORMANCE RIDE AND HANDLING

SUNROOF, DUAL SKYSCAPE 2-PANEL POWER with tilt-sliding front and fixed rear with sunscreen

LICENSE PLATE BRACKET, FRONT

LPO, ALL-WEATHER FLOOR LINER, FIRST AND SECOND ROW

LPO, ALL-WEATHER FLOOR LINER, 3RD ROW

ADAPTIVE CRUISE CONTROL

LPO, INTEGRATED CARGO LINER

ENHANCED AUTOMATIC EMERGENCY BRAKING

HD SURROUND VISION

REAR CAMERA MIRROR

REAR CAMERA MIRROR WASHER

LPO, FIRST AID KIT WITH GMC LOGO

LPO, HIGHWAY SAFETY KIT WITH GMC LOGO

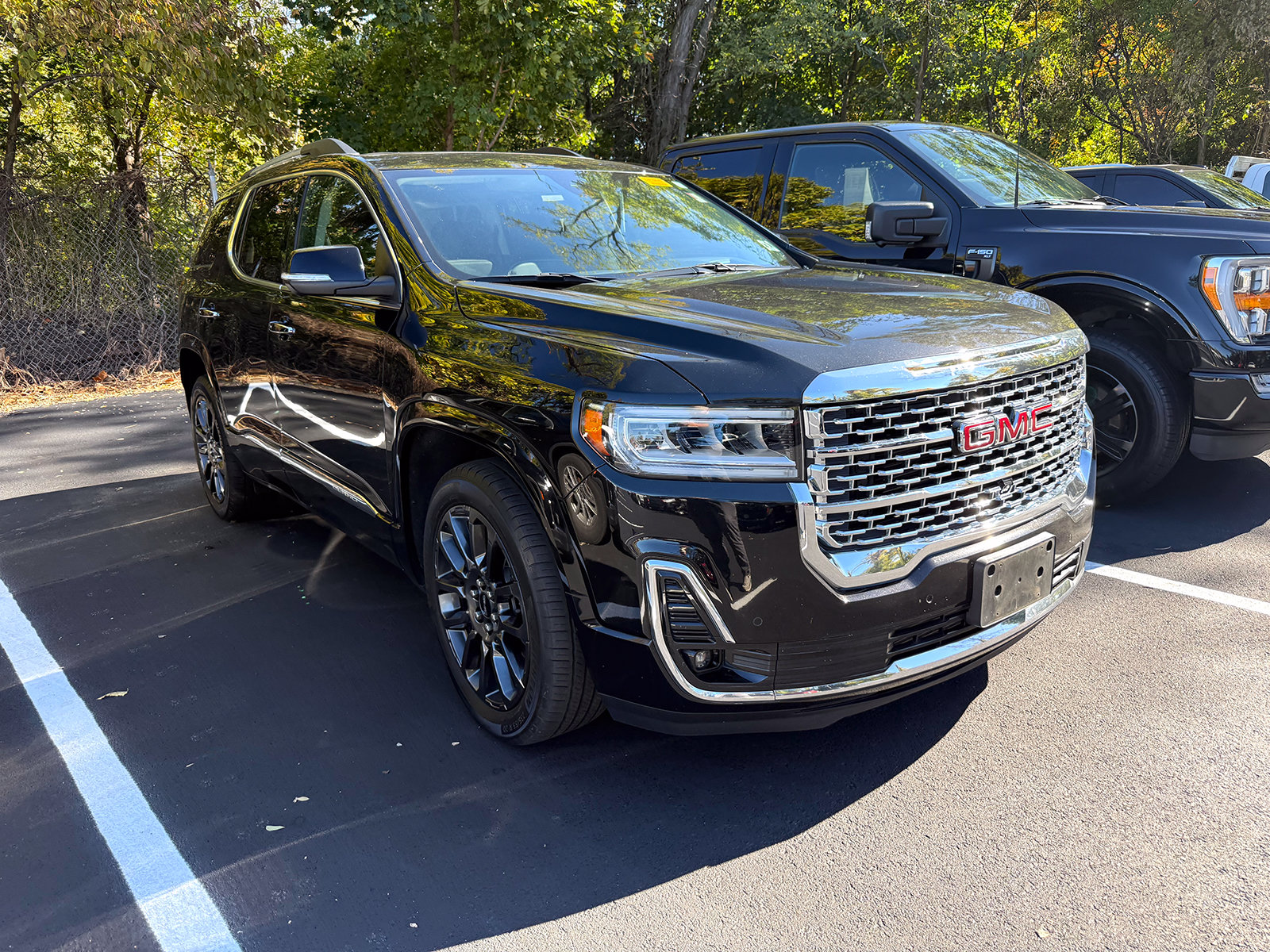

Vehicle Name - GMC Acadia

Body Style - 4 Door

Drivetrain - All Wheel Drive

EPA Classification - 4WD Sport Utility Vehicle

Passenger Capacity - 6

Passenger Volume (ft?) - 143.8

Base Curb Weight (lbs) - 4525

Fuel Economy Est-Combined (MPG) - 21

EPA Fuel Economy Est - City (MPG) - 19

EPA Fuel Economy Est - Hwy (MPG) - 26

Tons/yr of CO2 Emissions @ 15K mi/year - 8.4

Dead Weight Hitch - Max Trailer Wt. (lbs) - 4000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 400

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 4000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 400

Engine Order Code - LGX

Engine Type - Gas V6

Displacement - 3.6L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 310 @ 6600

SAE Net Torque @ RPM - 271 @ 5000

Trans Order Code - M3W

Trans Type - 9

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.69

Second Gear Ratio (:1) - 3.31

Third Gear Ratio (:1) - 3.01

Fourth Gear Ratio (:1) - 2.44

Fifth Gear Ratio (:1) - 1.92

Sixth Gear Ratio (:1) - 1.44

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.75

Ninth Gear Ratio (:1) - 0.62

Reverse Ratio (:1) - 2.96

Clutch Size (in) -

Final Drive Axle Ratio (:1) - 3.49

Transfer Case Gear Ratio (:1), High - - TBD -

Transfer Case Gear Ratio (:1), Low - - TBD -

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Maximum Alternator Capacity (amps) - 170

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - Five-Link

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - QNU

Rear Tire Order Code - QNU

Spare Tire Order Code - ZCD

Front Tire Size - P235/55R20

Rear Tire Size - P235/55R20

Spare Tire Size - T135/70R18

Front Wheel Size (in) - 20 x - TBD -

Rear Wheel Size (in) - 20 x - TBD -

Spare Wheel Size (in) - 18 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), Overall - - TBD -

Lock to Lock Turns (Steering) - - TBD -

Turning Diameter - Curb to Curb (ft) - 38.7

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.6 x 1.9

Rear Brake Rotor Diam x Thickness (in) - 12.4 x 0.9

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 21.7

Front Head Room (in) - 40

Front Leg Room (in) - 41

Front Shoulder Room (in) - 59.4

Front Hip Room (in) - 55.7

Second Head Room (in) - 39.6

Second Leg Room (in) - 39.7

Second Shoulder Room (in) - 58.7

Second Hip Room (in) - 53.3

Third Head Room (in) - 37.2

Third Leg Room (in) - 29.7

Third Shoulder Room (in) - 54.3

Third Hip Room (in) - 42.9

Wheelbase (in) - 112.5

Length, Overall (in) - 193.4

Width, Max w/o mirrors (in) - 75.4

Height, Overall (in) - - TBD -

Track Width, Front (in) - 64.5

Track Width, Rear (in) - 64.5

Min Ground Clearance (in) - 7.2

Rear Door Opening Height (in) - - TBD -

Rear Door Opening Width (in) - - TBD -

Cargo Area Length @ Floor to Seat 1 (in) - - TBD -

Cargo Area Length @ Floor to Seat 2 (in) - - TBD -

Cargo Area Length @ Floor to Seat 3 (in) - - TBD -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - - TBD -

Cargo Box (Area) Height (in) - - TBD -

Liftover Height (in) - - TBD -

Cargo Volume to Seat 1 (ft?) - 79

Cargo Volume to Seat 2 (ft?) - 41.7

Cargo Volume to Seat 3 (ft?) - 12.8

Model Group - Acadia

Vehicle Segment - Intermediate Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 2.0

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States Mpv Active
