Ultimate Black

Ivory

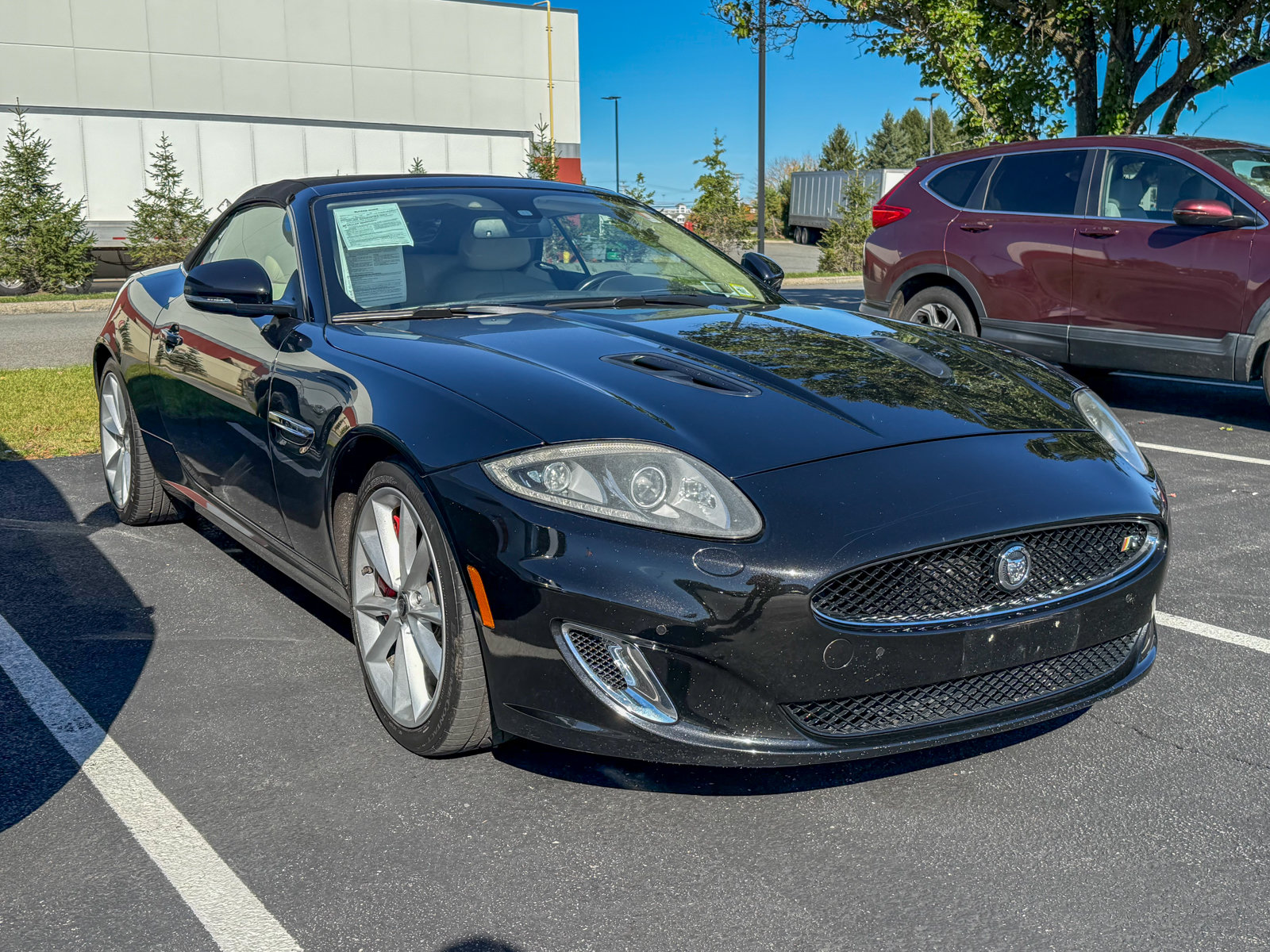

Vehicle Name - Jaguar XK

Body Style - Convertible

Drivetrain - Rear Wheel Drive

EPA Classification - Mini-Compact

Passenger Capacity - 4

Passenger Volume (ft?) - 74.0

Base Curb Weight (lbs) - 4079

Tons/yr of CO2 Emissions @ 15K mi/year - 10.2

EPA Greenhouse Gas Score - 2

Fuel Economy Est-Combined (MPG) - 17

EPA Fuel Economy Est - City (MPG) - 15

EPA Fuel Economy Est - Hwy (MPG) - 22

Dead Weight Hitch - Max Trailer Wt. (lbs) -

Dead Weight Hitch - Max Tongue Wt. (lbs) -

Wt Distributing Hitch - Max Trailer Wt. (lbs) -

Wt Distributing Hitch - Max Tongue Wt. (lbs) -

Engine Order Code -

Engine Type - Supercharged Gas V8

Displacement - 5.0L/305

Fuel System - Electronic Fuel Injection

SAE Net Horsepower @ RPM - 510 @ 6000-6500

SAE Net Torque @ RPM - 461 @ 2500-5500

Trans Order Code -

Trans Type - 6

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.17

Second Gear Ratio (:1) - 2.34

Third Gear Ratio (:1) - 1.52

Fourth Gear Ratio (:1) - 1.14

Fifth Gear Ratio (:1) - 0.87

Sixth Gear Ratio (:1) - 0.69

Reverse Ratio (:1) - 3.40

Clutch Size (in) -

Final Drive Axle Ratio (:1) - 3.31

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Maximum Alternator Capacity (amps) - - TBD -

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - Double Wishbone

Suspension Type - Rear - Multi-Link

Suspension Type - Front (Cont.) - w/Coil Springs

Suspension Type - Rear (Cont.) - w/Coil Springs

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - N/A

Rear Tire Order Code - N/A

Spare Tire Order Code - N/A

Front Tire Size - P255/35ZR20

Rear Tire Size - P295/30ZR20

Spare Tire Size - Compact

Front Wheel Size (in) - 20 x 8.5

Rear Wheel Size (in) - 20 x 9.5

Spare Wheel Size (in) - Compact

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Aluminum

Steering Type - Pwr Rack & Pinion

Steering Ratio (:1), Overall - Variable

Lock to Lock Turns (Steering) - - TBD -

Turning Diameter - Curb to Curb (ft) - - TBD -

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 15.0 x - TBD -

Rear Brake Rotor Diam x Thickness (in) - 14.8 x - TBD -

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 16.1

Front Head Room (in) - 37.8

Front Leg Room (in) - 43.0

Front Shoulder Room (in) - 56.6

Front Hip Room (in) - - TBD -

Second Head Room (in) - 30.2

Second Leg Room (in) - 27.6

Second Shoulder Room (in) - 42.4

Second Hip Room (in) - - TBD -

Wheelbase (in) - 108.3

Length, Overall (in) - 188.7

Width, Max w/o mirrors (in) - 74.5

Height, Overall (in) - 52.3

Track Width, Front (in) - 61.4

Track Width, Rear (in) - - TBD -

Min Ground Clearance (in) - - TBD -

Liftover Height (in) - - TBD -

Trunk Volume (ft?) - 7.1

Country of Origin - United Kingdom Jaguar Passager Car
