Mosaic Black Metallic

Black With Red Accents, Evotex Seat Trim

EMISSIONS, COLORADO, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, MINNESOTA, NEVADA, NEW JERSEY, NEW MEXICO, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

AXLE, 3.47 FINAL DRIVE RATIO

RS PREFERRED EQUIPMENT GROUP includes standard equipment

CONVENIENCE PACKAGE III includes (A7K) 8-way power front passenger seat adjuster, (KU1) ventilated driver seat (KU3) ventilated front passenger seat, (KA6) heated rear outboard seats, (AT9) 2-way power front passenger lumbar seat adjuster and (A45) memory settings

SAFETY AND TECHNOLOGY PACKAGE includes (DRZ) Rear Camera Mirror, (T3U) front fog lamps, (UKK) Rear Pedestrian Alert, (UV2) HD Surround Vision and (UVX) Traffic Sign Recognition.

SUNROOF, POWER, DUAL GLASS, PANORAMIC, SLIDING with power sunshade

FOG LAMPS, FRONT

REAR CAMERA MIRROR WASHER

LICENSE PLATE FRONT MOUNTING PACKAGE

SEAT, VENTILATED DRIVER

SEAT, VENTILATED FRONT PASSENGER

SEAT ADJUSTER, FRONT PASSENGER 8-WAY POWER

SEAT ADJUSTER, FRONT PASSENGER 2-WAY POWER LUMBAR

SEATS, HEATED, REAR, OUTBOARD POSITIONS

MEMORY SETTINGS includes presets for seat adjuster, outside rearview mirror and driver personalization

REAR CAMERA MIRROR

HD SURROUND VISION

REAR PEDESTRIAN ALERT

TRAFFIC SIGN RECOGNITION

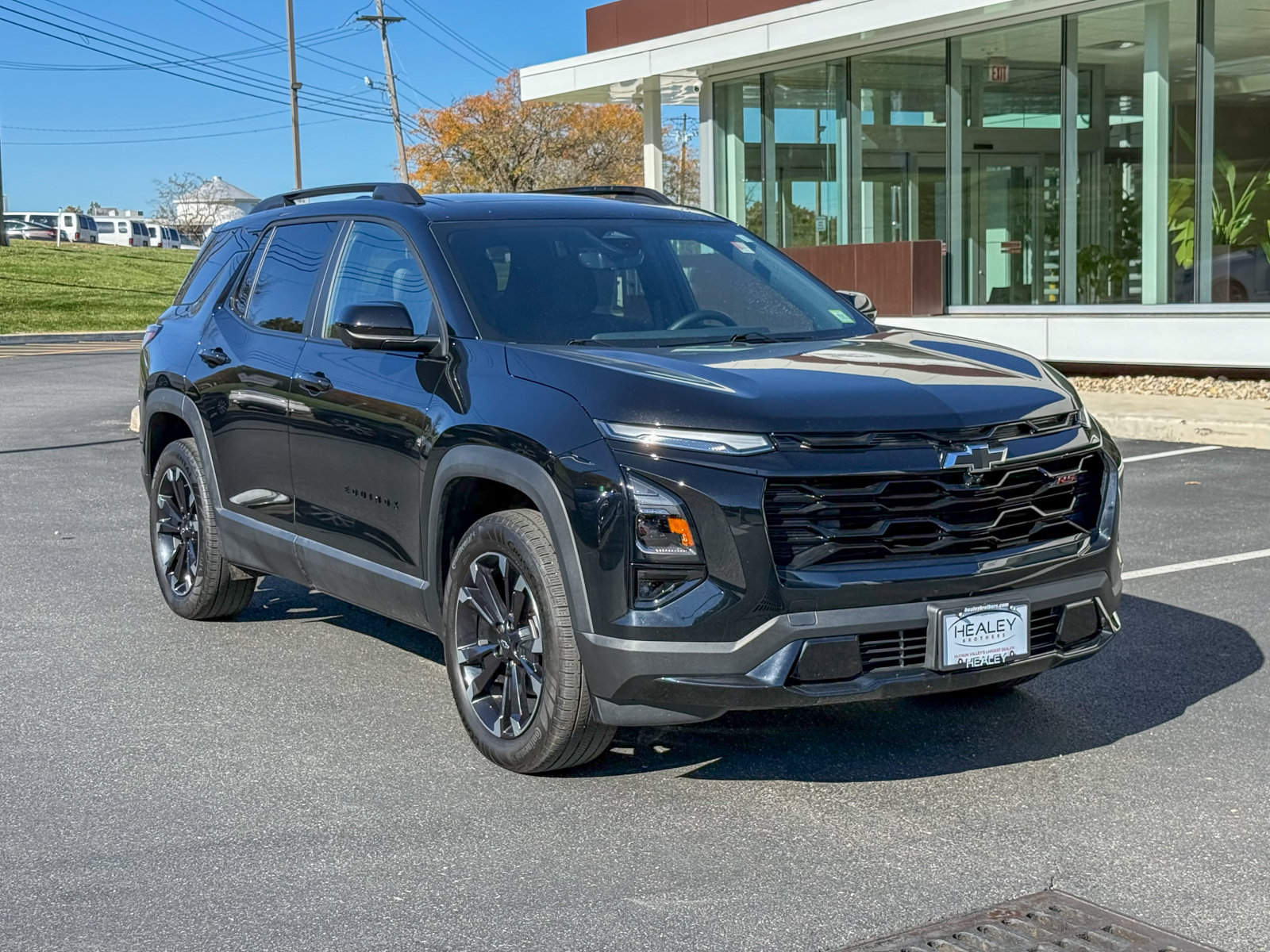

Vehicle Name - Chevrolet Equinox

Body Style - Sport Utility Vehicle

Drivetrain - All Wheel Drive

EPA Classification - 4WD Sport Utility Vehicle

Passenger Capacity - 5

Passenger Volume (ft?) - 100.1

Base Curb Weight (lbs) - 3629

Tons/yr of CO2 Emissions @ 15K mi/year - 6.8

Fuel Economy Est-Combined (MPG) - 26

EPA Fuel Economy Est - City (MPG) - 25

EPA Fuel Economy Est - Hwy (MPG) - 29

Dead Weight Hitch - Max Trailer Wt. (lbs) - 1500

Dead Weight Hitch - Max Tongue Wt. (lbs) - - TBD -

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 1500

Wt Distributing Hitch - Max Tongue Wt. (lbs) - - TBD -

Engine Order Code - LSD

Engine Type - Turbocharged Gas I4

Displacement - 1.5L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 175 @ 5600

SAE Net Torque @ RPM - 203 @ 2000-4000

Trans Order Code - MGH

Trans Type - 8

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.69

Second Gear Ratio (:1) - 3.31

Third Gear Ratio (:1) - 3.01

Fourth Gear Ratio (:1) - 1.92

Fifth Gear Ratio (:1) - 1.45

Sixth Gear Ratio (:1) - 1.00

Seventh Gear Ratio (:1) - 0.75

Eighth Gear Ratio (:1) - 0.62

Reverse Ratio (:1) - - TBD -

Clutch Size (in) - N/A

Final Drive Axle Ratio (:1) - 3.47

Transfer Case Gear Ratio (:1), High - - TBD -

Transfer Case Gear Ratio (:1), Low - - TBD -

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Maximum Alternator Capacity (amps) - - TBD -

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - Four-Link

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - N/A

Shock Absorber Diameter - Rear (mm) - N/A

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - QGS

Rear Tire Order Code - QGS

Spare Tire Order Code - QCL

Front Tire Size - 235/55R19

Rear Tire Size - 235/55R19

Spare Tire Size - T125/70R17

Front Wheel Size (in) - 19 x - TBD -

Rear Wheel Size (in) - 19 x - TBD -

Spare Wheel Size (in) - 17 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Pwr Rack & Pinion

Steering Ratio (:1), Overall - 17

Lock to Lock Turns (Steering) - - TBD -

Turning Diameter - Curb to Curb (ft) - - TBD -

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - - TBD -

Rear Brake Rotor Diam x Thickness (in) - - TBD -

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 15.6

Front Head Room (in) - 38.2

Front Leg Room (in) - 40.9

Front Shoulder Room (in) - 57.7

Front Hip Room (in) - 54.2

Second Head Room (in) - 37.8

Second Leg Room (in) - 39.9

Second Shoulder Room (in) - 55.8

Second Hip Room (in) - 51.7

Wheelbase (in) - 107.5

Length, Overall (in) - 183.2

Width, Max w/o mirrors (in) - 74.9

Height, Overall (in) - 65.6

Track Width, Front (in) - 63.8

Track Width, Rear (in) - 63.9

Min Ground Clearance (in) - 8.2

Rear Door Opening Height (in) - - TBD -

Rear Door Opening Width (in) - - TBD -

Cargo Area Length @ Floor to Seat 1 (in) - - TBD -

Cargo Area Length @ Floor to Seat 2 (in) - - TBD -

Cargo Area Length @ Floor to Seat 3 (in) -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - - TBD -

Cargo Box (Area) Height (in) - - TBD -

Liftover Height (in) - - TBD -

Cargo Volume to Seat 1 (ft?) - 63.5

Cargo Volume to Seat 2 (ft?) - 29.8

Cargo Volume to Seat 3 (ft?) -

Model Group - Equinox

Vehicle Segment - Compact Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 1.5

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - Mexico Chevrolet MPV
