Billet Silver Metallic Clearcoat

Black/Diesel Gray, Premium Leather Trim Bucket Seats W/X7 -Inc: With Black/Deep Mocha Interior Includes Deep Mocha Seats W/Diesel Gray Piping/Stitch, Satin Chrome Accents And Liquid Titanium Bezels, With Black/Alloy Interior Includes Alloy Seats W/Cranberry Wine Piping/Stitch, Satin Chrome Accents And Cranberry Wine Bezels, With Black/Diesel Interior Includes Black Seats W/Diesel Gray Piping/Stitch, Satin Chrome Accents And Liquid Titanium Bezels, Black Seats

QUICK ORDER PACKAGE 27P

UCONNECT THEATER PACKAGE

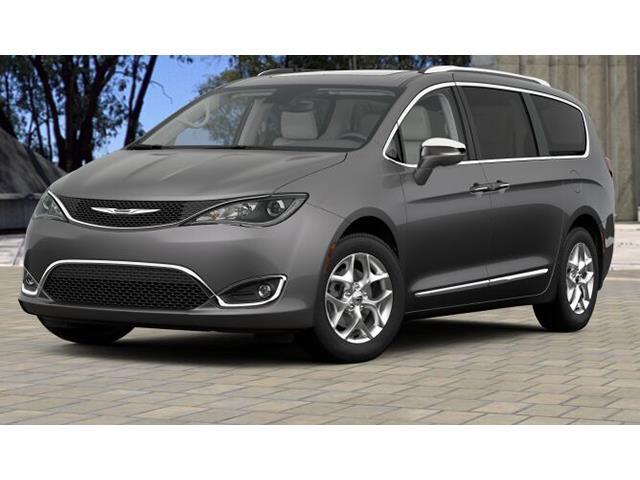

Vehicle Name - Chrysler Pacifica

Body Style - Passenger Van

Drivetrain - Front Wheel Drive

EPA Classification - Minivans 2WD

Passenger Capacity - 8

Passenger Volume (ft?) - 165

Base Curb Weight (lbs) - 4330

Fuel Economy Est-Combined - 22

EPA Fuel Economy Est - City (MPG) - 18

EPA Fuel Economy Est - Hwy (MPG) - 28

Dead Weight Hitch - Max Trailer Wt. (lbs) - 3600

Dead Weight Hitch - Max Tongue Wt. (lbs) - 360

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 3600

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 360

Engine Order Code - ERC

Engine Type - Regular Unleaded V-6

Displacement - 3.6 L/220

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 287 @ 6400

SAE Net Torque @ RPM - 262 @ 4000

Trans Order Code - DFH

Trans Type - 9

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.70

Second Gear Ratio (:1) - 2.84

Third Gear Ratio (:1) - 1.91

Fourth Gear Ratio (:1) - 1.38

Fifth Gear Ratio (:1) - 1.00

Sixth Gear Ratio (:1) - 0.81

Reverse Ratio (:1) - 3.81

Final Drive Axle Ratio (:1) - 3.25

Cold Cranking Amps @ 0? F (Primary) - 650

Tons/yr of CO2 Emissions @ 15K mi/year - 8.0

Maximum Alternator Capacity (amps) - 220

Suspension Type - Front - Strut

Suspension Type - Rear - Trailing Arm

Suspension Type - Front (Cont.) - Strut

Suspension Type - Rear (Cont.) - Trailing Arm

Front Tire Order Code - TWZ

Rear Tire Order Code - TWZ

Spare Tire Order Code - TBQ

Front Tire Size - P245/50HR20

Rear Tire Size - P245/50HR20

Spare Tire Size - Collapsible

Front Wheel Size (in) - 20 X 7.5

Rear Wheel Size (in) - 20 X 7.5

Spare Wheel Size (in) - Collapsible

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Aluminum

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 39.7

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13

Rear Brake Rotor Diam x Thickness (in) - 13

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 19

Front Head Room (in) - 30.1

Front Leg Room (in) - 41.1

Front Shoulder Room (in) - 63.8

Front Hip Room (in) - 59

Second Head Room (in) - 39.6

Second Leg Room (in) - 39

Second Shoulder Room (in) - 63

Second Hip Room (in) - 64.8

Third Head Room (in) - 38.7

Third Leg Room (in) - 36.5

Third Shoulder Room (in) - 61.2

Third Hip Room (in) - 49.6

Wheelbase (in) - 121.6

Length, Overall (in) - 203.6

Width, Max w/o mirrors (in) - 79.6

Height, Overall (in) - 69.9

Track Width, Front (in) - 68.3

Track Width, Rear (in) - 68.3

Min Ground Clearance (in) - 5.1

Cargo Box Width @ Wheelhousings (in) - 48.8

Cargo Box (Area) Height (in) - 47.8

Cargo Volume to Seat 1 (ft?) - 140.5

Cargo Volume to Seat 2 (ft?) - 87.5

Cargo Volume to Seat 3 (ft?) - 32.3

Seventh Gear Ratio (:1) - 0.70

Eighth Gear Ratio (:1) - 0.58

Model Group - Pacifica

Vehicle Segment - Small Van

Vehicle Type - Passenger Van

Body Cab Style - Passenger Van

Engine Displacement Units - 3.6

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - Canada MPV
