Black Raven

Sangria With Jet Black Accents, Leather Seating Surfaces With Mini-Perforated Inserts (With Pendulum Finish Aluminum Center Console Trim.

EMISSIONS OVERRIDE, STATE-SPECIFIC

DRIVETRAIN, ALL-WHEEL DRIVE

SPORT PREFERRED EQUIPMENT GROUP includes standard equipment

WHEELS, 18" (45.7 CM) ALLOY WITH SATIN GRAPHITE FINISH

CADILLAC USER EXPERIENCE WITH EMBEDDED NAVIGATION, AM/FM STEREO with connected navigation providing real-time traffic, 8" diagonal HD color information display, 2 USBs, personalized profiles for each driver's settings, Natural Voice Recognition, Phone Integration for Wireless Apple CarPlay/Wireless Android Auto capability for compatible phone, Connected Apps and Teen Driver

NAVIGATION AND BOSE PREMIUM AUDIO PACKAGE includes (IOT) Cadillac user experience with embedded navigation and (UQS) Bose 14-speaker premium Surround Sound audio system

CLIMATE PACKAGE includes (KA1) heated driver and front passenger seats, (KU9) ventilated driver and front passenger seats and (KI3) heated steering wheel (Includes (AF6) driver power lumbar massage and (AKE) front passenger power lumbar massage.

LPO, INTERIOR PROTECTION PACKAGE includes (VAV) All-weather floor mats, LPO and (VLI) All-weather cargo mat, LPO

SUNROOF, POWER WITH EXPRESS OPEN AND VENTING

LICENSE PLATE BRACKET, FRONT

AUDIO SYSTEM FEATURE, BOSE PREMIUM SURROUND SOUND 14-SPEAKER SYSTEM

SEATS, HEATED DRIVER AND FRONT PASSENGER seat cushions and seatbacks

SEATS, VENTILATED DRIVER AND FRONT PASSENGER seat cushions and seatbacks

NOT EQUIPPED WITH DRIVER AND FRONT PASSENGER VENTILATED SEAT CUSHION BLOWER MOTOR see dealer for details (Beginning with start of production through September 4, 2022, vehicles built with (KU9) driver and front passenger ventilated seats will be forced to include (04O) Not Equipped with Driver and Front Passenger Ventilated Seat Cushion Blower Motor, which removes driver and front passenger ventilated seat cushion blower motor. Vehicles equipped with (04O) Not Equipped with Driver and Front Passenger Ventilated Seat Cushion Blower Motor will be eligible for later dealer retrofit to enable functionality. See the window label for the features on a specific vehicle.)

SEAT, DRIVER POWER LUMBAR MASSAGE

SEAT, FRONT PASSENGER POWER LUMBAR MASSAGE

LPO, ALL-WEATHER FLOOR MATS

LPO, ALL-WEATHER CARGO MAT

STEERING WHEEL, HEATED

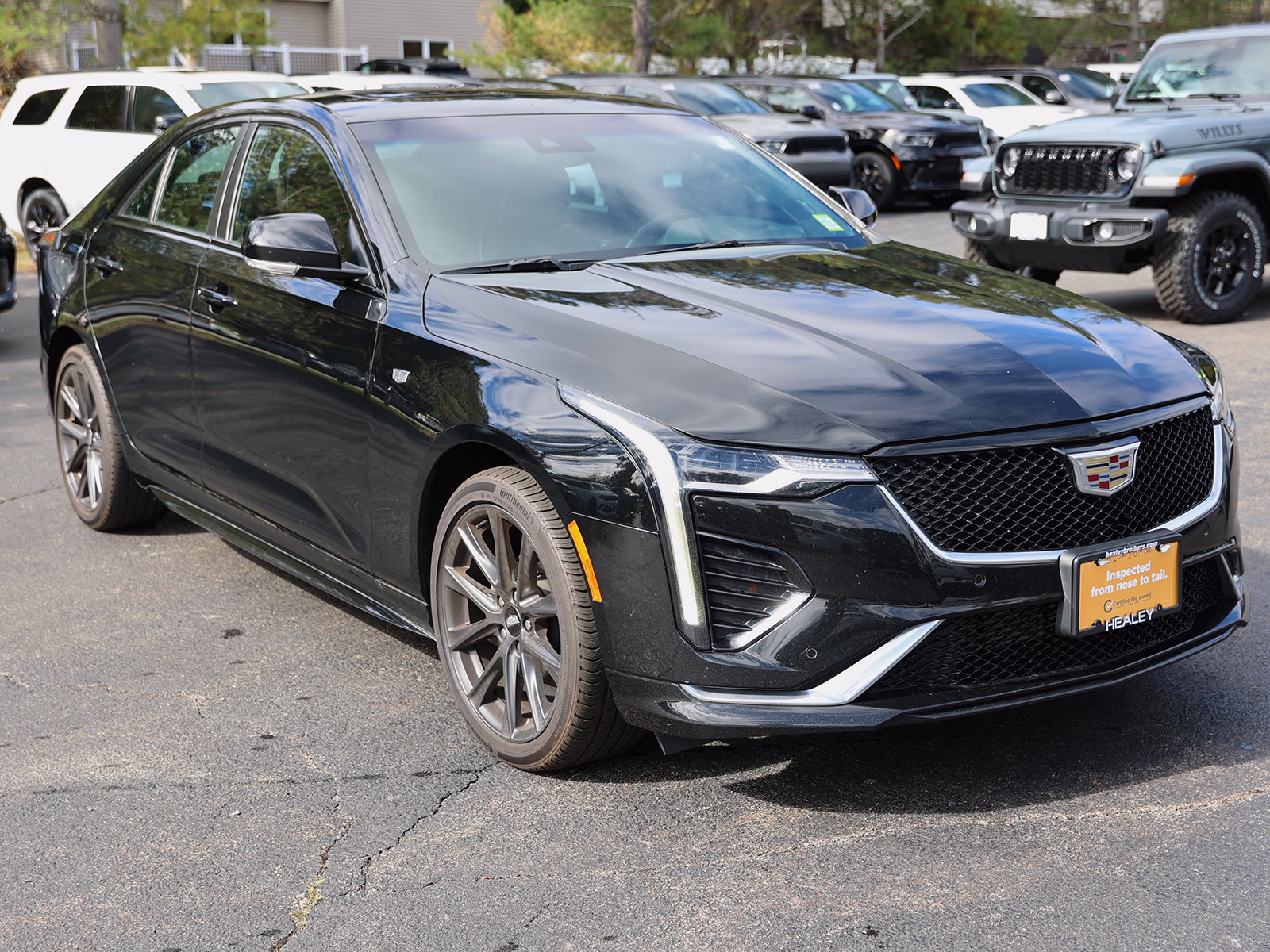

Vehicle Name - Cadillac CT4

Body Style - Sedan

Drivetrain - All Wheel Drive

EPA Classification - Compact Cars

Passenger Capacity - 5

Passenger Volume (ft?) - 90

Base Curb Weight (lbs) - 3622

Number of Passenger Doors - 4

Fuel Economy Est-Combined (MPG) - 26

EPA Fuel Economy Est - City (MPG) - 22

EPA Fuel Economy Est - Hwy (MPG) - 31

Tons/yr of CO2 Emissions @ 15K mi/year - 6.8

Dead Weight Hitch - Max Trailer Wt. (lbs) -

Dead Weight Hitch - Max Tongue Wt. (lbs) -

Wt Distributing Hitch - Max Trailer Wt. (lbs) -

Wt Distributing Hitch - Max Tongue Wt. (lbs) -

Engine Order Code - LSY

Engine Type - Turbocharged I4

Displacement - 2.0L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 237 @ 5000

SAE Net Torque @ RPM - 258 @ 1500-4000

Trans Order Code - M5N

Trans Type - 8

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.61

Second Gear Ratio (:1) - 3.04

Third Gear Ratio (:1) - 2.06

Fourth Gear Ratio (:1) - 1.66

Fifth Gear Ratio (:1) - 1.26

Sixth Gear Ratio (:1) - 1.00

Seventh Gear Ratio (:1) - 0.85

Eighth Gear Ratio (:1) - 0.66

Reverse Ratio (:1) - 3.93

Clutch Size (in) - - TBD -

Final Drive Axle Ratio (:1) - 2.85

Cold Cranking Amps @ 0? F (Primary) -

Maximum Alternator Capacity (amps) -

Total Cooling System Capacity (qts) -

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - Five-Link

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) - w/Coil Springs

Shock Absorber Diameter - Front (mm) -

Shock Absorber Diameter - Rear (mm) -

Stabilizer Bar Diameter - Front (in) -

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - Q4D

Rear Tire Order Code - Q4D

Spare Tire Order Code -

Front Tire Size - 235/40R18

Rear Tire Size - 235/40R18

Spare Tire Size -

Front Wheel Size (in) - 19 x - TBD -

Rear Wheel Size (in) - 19 x - TBD -

Spare Wheel Size (in) -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material -

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), Overall -

Lock to Lock Turns (Steering) -

Turning Diameter - Curb to Curb (ft) - 38.0

Turning Diameter - Wall to Wall (ft) -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.6 x 1.2

Rear Brake Rotor Diam x Thickness (in) - 12.4 x 0.9

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 17

Front Head Room (in) - 38.3

Front Leg Room (in) - 42.4

Front Shoulder Room (in) - 55.2

Front Hip Room (in) - 53

Second Head Room (in) - 36.5

Second Leg Room (in) - 33.4

Second Shoulder Room (in) - 53.9

Second Hip Room (in) - 52.5

Wheelbase (in) - 109.3

Length, Overall (in) - 187.2

Width, Max w/o mirrors (in) - 71.4

Height, Overall (in) - 56

Track Width, Front (in) - 60.3

Track Width, Rear (in) - 61.7

Min Ground Clearance (in) -

Liftover Height (in) -

Trunk Volume (ft?) - 10.7

Model Group - CT4

Vehicle Segment - Compact Luxury

Vehicle Type - Sedan

Engine Displacement Units - 2.0

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - United States Cadillac Active
