Cajun Red Tintcoat

Jet Black, Cloth/Leatherette Seat Trim

EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

REAR AXLE, 3.42 RATIO

Z71 PREFERRED EQUIPMENT GROUP includes standard equipment

WHEELS, 17" X 8" (43.2 CM X 20.3 CM) DARK ARGENT METALLIC CAST ALUMINUM

TIRES, 255/65R17 ALL-TERRAIN, BLACKWALL

SOLID PAINT

AUDIO SYSTEM, CHEVROLET MYLINK RADIO WITH NAVIGATION AND 8" DIAGONAL COLOR TOUCH-SCREEN, AM/FM STEREO seek-and-scan and digital clock, includes Bluetooth streaming audio for music and select phones; voice-activated technology for radio and phone; featuring Apple CarPlay capability for compatible phone; includes auxiliary jack

TRAILER BRAKE CONTROLLER, INTEGRATED

TRAILERING PACKAGE, HEAVY-DUTY includes trailer hitch and 7-pin connector

TOW/HAUL MODE

LICENSE PLATE KIT, FRONT

BEDLINER, SPRAY-ON, BLACK WITH CHEVROLET LOGO

AUDIO SYSTEM FEATURE, BOSE PREMIUM 7-SPEAKER SYSTEM

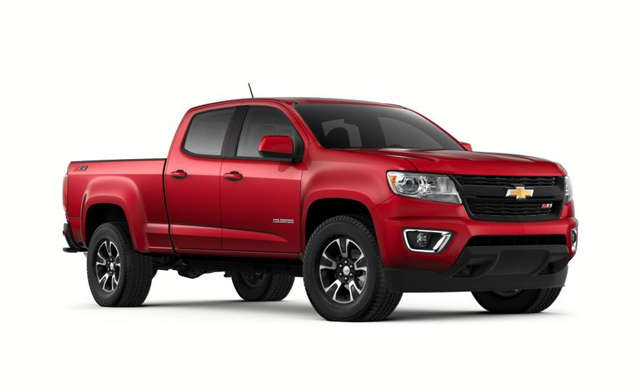

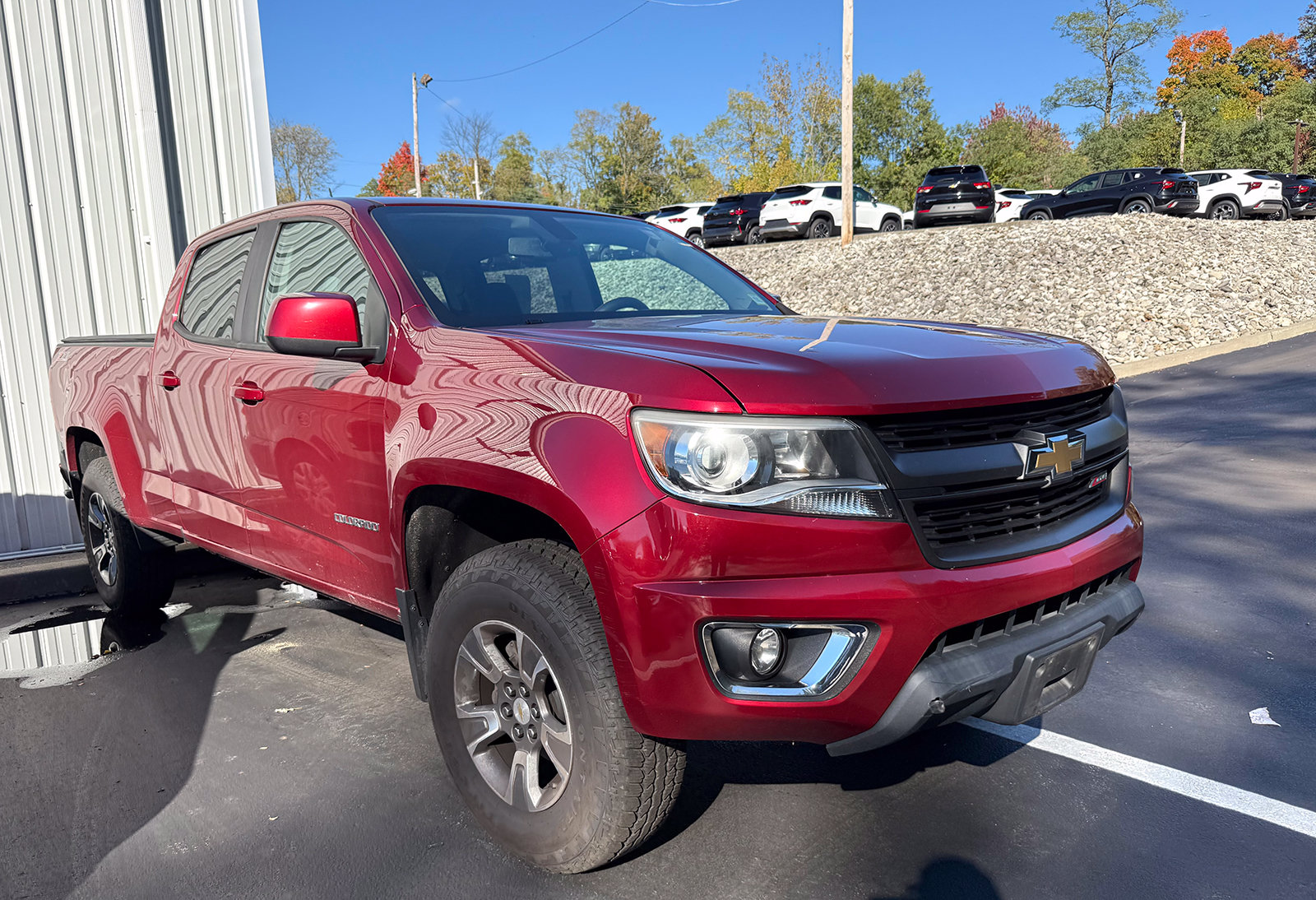

Vehicle Name - Chevrolet Colorado

Body Style - Crew Cab Pickup

Body Code - E63

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Number of Passenger Doors - 4

Gross Axle Wt Rating - Front (lbs) - 3200

Gross Axle Wt Rating - Rear (lbs) - 3500

Curb Weight - Front (lbs) - 2650

Curb Weight - Rear (lbs) - 1881

Fuel Economy Est-Combined (MPG) - 19

EPA Fuel Economy Est - City (MPG) - 17

EPA Fuel Economy Est - Hwy (MPG) - 24

Tons/yr of CO2 Emissions @ 15K mi/year - 9.3

Gross Vehicle Weight Rating Cap (lbs) - 6000

Gross Combined Wt Rating (lbs) - 12000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 7000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 700

Fifth Wheel Hitch - Max Trailer Wt. (lbs) -

Fifth Wheel Hitch - Max Tongue Wt. (lbs) -

Maximum Trailering Capacity (lbs) - 7600

Engine Order Code - LGZ

Engine Type - Gas V6

Displacement - 3.6L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 308 @ 6800

SAE Net Torque @ RPM - 275 @ 4000

Trans Order Code - M5T

Trans Type - 8

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - - TBD -

Second Gear Ratio (:1) - - TBD -

Third Gear Ratio (:1) - - TBD -

Fourth Gear Ratio (:1) - - TBD -

Fifth Gear Ratio (:1) - - TBD -

Sixth Gear Ratio (:1) - - TBD -

Reverse Ratio (:1) - - TBD -

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - N/A

Transfer Case Gear Ratio (:1), High - 1.00

Transfer Case Gear Ratio (:1), Low - - TBD -

Transfer Case Power Take Off - - TBD -

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Cold Cranking Amps @ 0? F (2nd) -

Maximum Alternator Capacity (amps) - - TBD -

Maximum Alternator Watts - - TBD -

Total Cooling System Capacity (qts) - 15.6

Engine Oil Cooler -

Frame Type - - TBD -

Suspension Type - Front - Independent

Suspension Type - Rear - Multi-Leaf

Spring Capacity - Front (lbs) - - TBD -

Spring Capacity - Rear (lbs) - - TBD -

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - - TBD -

Axle Capacity - Rear (lbs) - - TBD -

Axle Ratio (:1) - Front - 3.42

Axle Ratio (:1) - Rear - 3.42

Shock Absorber Diameter - Front (mm) -

Shock Absorber Diameter - Rear (mm) -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - QHE

Rear Tire Order Code - QHE

Spare Tire Order Code - ZJJ

Front Tire Size - 265/65R17

Rear Tire Size - 265/65R17

Spare Tire Size - 265/70R16

Front Tire Capacity (lbs) - - TBD -

Rear Tire Capacity (lbs) - - TBD -

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - - TBD -

Front Wheel Size (in) - 17 x 8

Rear Wheel Size (in) - 17 x 8

Spare Wheel Size (in) - 16 x 7

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Pwr Rack & Pinion

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 44.6

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.2 x 1.0

Rear Brake Rotor Diam x Thickness (in) - 12.8 x 0.7

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 21

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 41.40

Front Leg Room (in) - 45.00

Front Shoulder Room (in) - 57.50

Front Hip Room (in) - 55.00

Second Head Room (in) - 38.30

Second Leg Room (in) - 35.80

Second Shoulder Room (in) - 56.20

Second Hip Room (in) - 53.30

Wheelbase (in) - 140.50

Length, Overall w/o rear bumper (in) - 224.9

Width, Max w/o mirrors (in) - 74.30

Height, Overall (in) - 70.50

Overhang, Front (in) - 36.90

Overhang, Rear w/o bumper (in) - 47.2

Front Bumper to Back of Cab (in) - - TBD -

Cab to Axle (in) - - TBD -

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) - 34.6

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - - TBD -

Ground Clearance, Front (in) - 8.10

Ground Clearance, Rear (in) - 8.10

Cargo Box Length @ Floor (in) - 74.00

Cargo Box Width @ Top, Rear (in) - - TBD -

Cargo Box Width @ Floor (in) - 57.80

Cargo Box Width @ Wheelhousings (in) - 44.40

Cargo Box (Area) Height (in) - - TBD -

Tailgate Width (in) - - TBD -

Cargo Volume (ft?) - - TBD -

Ext'd Cab Cargo Volume (ft?) - - TBD -

Seventh Gear Ratio (:1) -

Eighth Gear Ratio (:1) -

Model Group - Colorado

Vehicle Segment - Small Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 2.8

Engine Camshaft - DOHC

Engine Block Type - iron

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States Chevrolet Trucks
