ENGINE: 2.7L V6 ECOBOOST

EQUIPMENT GROUP 302A LUXURY

ELECTRONIC LOCKING W/3.73 AXLE RATIO

INGOT SILVER METALLIC

MEDIUM EARTH GRAY, CLOTH 40/CONSOLE/40 FRONT SEATS

FX4 OFF-ROAD PACKAGE

TRAILER TOW PACKAGE

CALIFORNIA EMISSIONS SYSTEM

EXTENDED RANGE 36 GALLON FUEL TANK

POWER MOONROOF

LED SIDE-MIRROR SPOTLIGHTS

BLIND SPOT INFORMATION SYSTEM (BLIS)

FRONT LICENSE PLATE BRACKET

ALL-WEATHER RUBBER FLOOR MATS

SYNC CONNECT

VOICE-ACTIVATED NAVIGATION

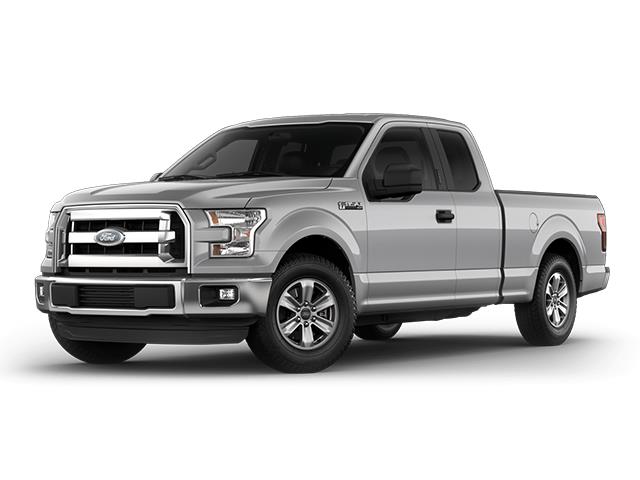

Vehicle Name - Ford F-150

Body Style - SuperCab Styleside

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 4687

Gross Axle Wt Rating - Front (lbs) - 3600

Gross Axle Wt Rating - Rear (lbs) - 3800

Curb Weight - Front (lbs) - 2782

Curb Weight - Rear (lbs) - 1865

Gross Vehicle Weight Rating Cap (lbs) - 6500

Fuel Economy Est-Combined - 20

EPA Fuel Economy Est - City (MPG) - 18

EPA Fuel Economy Est - Hwy (MPG) - 23

Gross Combined Wt Rating (lbs) - 13300

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 8000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 800

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - 7900

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - 1975

Maximum Trailering Capacity - 8000

Engine Order Code - 99P

Engine Type - Twin Turbo Regular Unleaded V-6

Displacement - 2.7 L/164

Fuel System - Gasoline Direct Injection

SAE Net Horsepower @ RPM - 325 @ 5750

SAE Net Torque @ RPM - 375 @ 3000

Trans Order Code - 446

Trans Type - 6

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.17

Second Gear Ratio (:1) - 2.34

Third Gear Ratio (:1) - 1.52

Fourth Gear Ratio (:1) - 1.14

Fifth Gear Ratio (:1) - 0.86

Sixth Gear Ratio (:1) - 0.69

Reverse Ratio (:1) - 3.40

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 610

Cold Cranking Amps @ 0? F (2nd) - 610

Tons/yr of CO2 Emissions @ 15K mi/year - 8.8

Maximum Alternator Capacity (amps) - 200

Engine Oil Cooler - Regular Duty

Suspension Type - Front - Double Wishbone

Suspension Type - Rear - Leaf

Spring Capacity - Front (lbs) - 3600

Spring Capacity - Rear (lbs) - 3800

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Capacity - Front (lbs) - 3750

Axle Capacity - Rear (lbs) - 4800

Axle Ratio (:1) - Front - 3.73

Axle Ratio (:1) - Rear - 3.73

Front Tire Order Code - T24

Rear Tire Order Code - T24

Spare Tire Order Code - T24

Front Tire Size - LT245/70SR17

Rear Tire Size - LT245/70SR17

Spare Tire Size - Full-Size

Front Tire Capacity (lbs) - 3650

Rear Tire Capacity (lbs) - 4056

Front Wheel Size (in) - 18 X 7.5

Rear Wheel Size (in) - 18 X 7.5

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 47.1

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.8

Rear Brake Rotor Diam x Thickness (in) - 13.7

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 36

Front Head Room (in) - 40.8

Front Leg Room (in) - 43.9

Front Shoulder Room (in) - 66.7

Front Hip Room (in) - 62.5

Second Head Room (in) - 40.3

Second Leg Room (in) - 33.5

Second Shoulder Room (in) - 65.8

Second Hip Room (in) - 64.7

Wheelbase (in) - 145

Length, Overall (in) - 231.9

Width, Max w/o mirrors (in) - 79.9

Height, Overall (in) - 77.2

Overhang, Front (in) - 37.8

Ground to Top of Load Floor (in) - 34.5

Ground Clearance, Front (in) - 9.3

Ground Clearance, Rear (in) - 9.3

Cargo Box Length @ Floor (in) - 78

Cargo Box Width @ Top, Rear (in) - 65.2

Cargo Box Width @ Floor (in) - 65.2

Cargo Box Width @ Wheelhousings (in) - 50.6

Cargo Box (Area) Height (in) - 21.4

Tailgate Width (in) - 60.3

Cargo Volume (ft?) - 62.3

Seventh Gear Ratio (:1) -

Eighth Gear Ratio (:1) -

Model Group - F-Series Pickups

Vehicle Segment - Large Pick-up

Vehicle Type - SuperCab

Body Cab Style - Extended Cab

Bed Style - regular

Engine Displacement Units - 3.5

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States Ford
