Bright White Clearcoat

Black, Leather Trimmed Bucket Seats -Inc: Center Console Parts Module, #2 Seat Foam Cushion, Heated Front Seats, Power 4-Way Passenger Lumbar Adjust

QUICK ORDER PACKAGE 29Y

TRX CARBON FIBER PACKAGE

TRAILER TOW GROUP

BED UTILITY GROUP

ADVANCED SAFETY GROUP

TRX LEVEL 2 EQUIPMENT GROUP

DUAL-PANE PANORAMIC SUNROOF

TRI-FOLD TONNEAU COVER

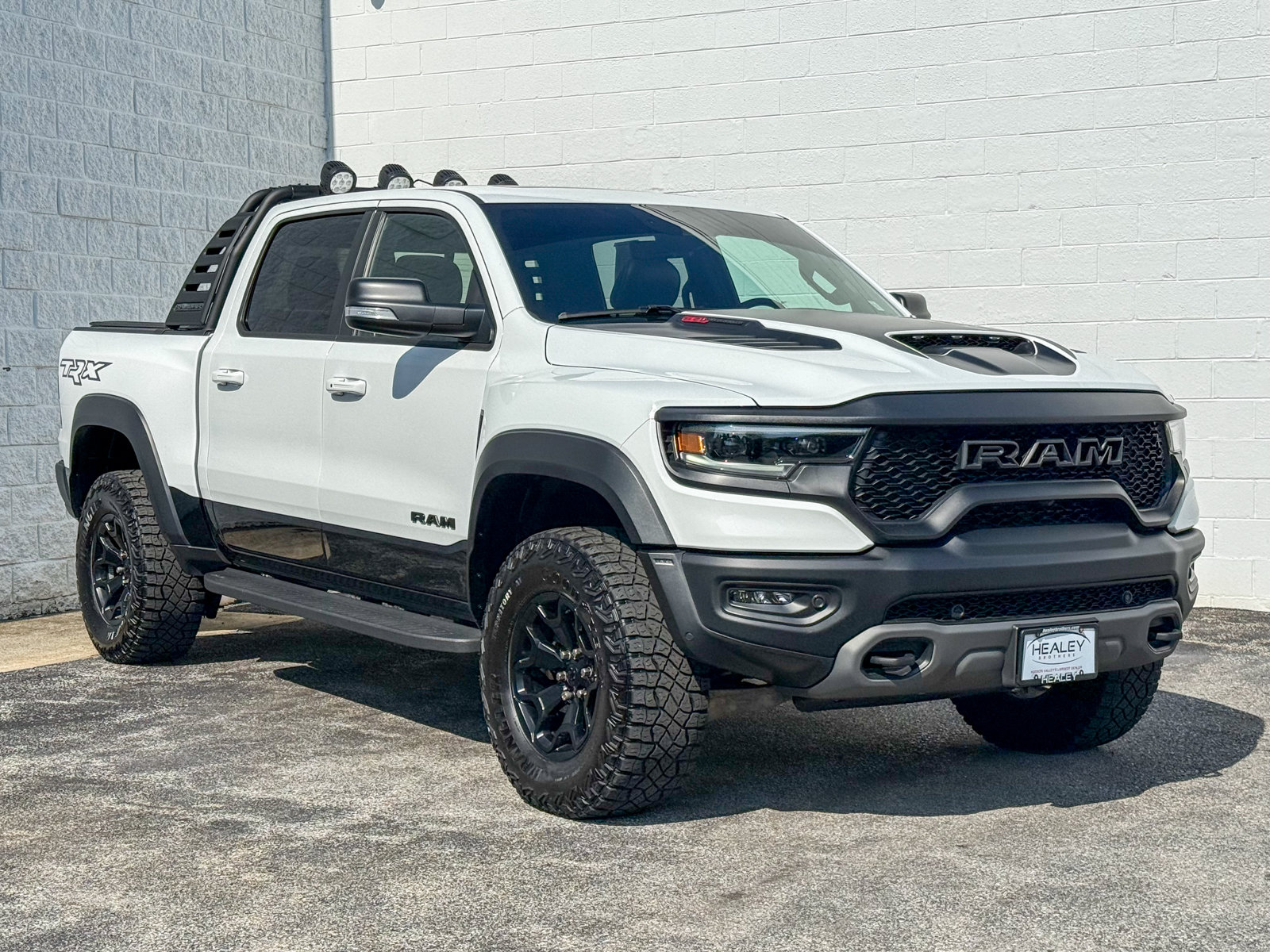

Vehicle Name - Ram 1500

Body Style - Crew Cab

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 6439

Gross Axle Wt Rating - Front (lbs) - 4300

Gross Axle Wt Rating - Rear (lbs) - 4200

Curb Weight - Front (lbs) - 3695

Curb Weight - Rear (lbs) - 2743

Gross Vehicle Weight Rating Cap (lbs) - 7800

Fuel Economy Est-Combined (MPG) - 12

EPA Fuel Economy Est - City (MPG) - 10

EPA Fuel Economy Est - Hwy (MPG) - 14

Gross Combined Wt Rating (lbs) - 15160

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 8100

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 810

Maximum Trailering Capacity (lbs) - 8100

Engine Order Code - ESD

Engine Type - Intercooled Supercharger Premium Gasoline V-8

Displacement - 6.2 L/376

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 702 @ 6100

SAE Net Torque @ RPM - 650 @ 4800

Trans Order Code - DFS

Trans Type - 8

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.71

Second Gear Ratio (:1) - 3.14

Third Gear Ratio (:1) - 2.11

Fourth Gear Ratio (:1) - 1.67

Fifth Gear Ratio (:1) - 1.29

Sixth Gear Ratio (:1) - 1.00

Reverse Ratio (:1) - 3.30

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 800

Cold Cranking Amps @ 0? F (2nd) - 800

Tons/yr of CO2 Emissions @ 15K mi/year - 14.8

Maximum Alternator Capacity (amps) - 250

Engine Oil Cooler - Yes

Suspension Type - Front - Short And Long Arm

Suspension Type - Rear - Multi-Link

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 3.55

Axle Ratio (:1) - Rear - 3.55

Front Tire Order Code - TXS

Rear Tire Order Code - TXS

Spare Tire Order Code - TBA

Front Tire Size - LT325/65RR18

Rear Tire Size - LT325/65RR18

Spare Tire Size - Full-Size

Front Wheel Size (in) - 18 X 9

Rear Wheel Size (in) - 18 X 9

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Aluminum

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 48.3

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 15

Rear Brake Rotor Diam x Thickness (in) - 15

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 33

Front Head Room (in) - 40.9

Front Leg Room (in) - 40.9

Front Shoulder Room (in) - 66

Front Hip Room (in) - 63.4

Second Head Room (in) - 39.8

Second Leg Room (in) - 45.2

Second Shoulder Room (in) - 65.7

Second Hip Room (in) - 63.4

Wheelbase (in) - 145.1

Length, Overall (in) - 232.9

Width, Max w/o mirrors (in) - 88

Height, Overall (in) - 80.9

Cab to Axle (in) - 27.7

Ground Clearance, Front (in) - 8

Ground Clearance, Rear (in) - 8

Cargo Box Length @ Floor (in) - 67.4

Cargo Box Width @ Top, Rear (in) - 66.4

Cargo Box Width @ Floor (in) - 66.4

Cargo Box Width @ Wheelhousings (in) - 51

Cargo Box (Area) Height (in) - 21.4

Tailgate Width (in) - 60

Cargo Volume (ft?) - 53.9

Seventh Gear Ratio (:1) - 0.84

Eighth Gear Ratio (:1) - 0.67

Model Group - Ram Pickups

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 6.2

Engine Camshaft - OHV

Engine Block Type - iron

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - United States RAM, Jeep Truck
