Sterling Gray Metallic

Medium Ash Gray, Premium Cloth Seat Trim

EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

AXLE, 3.87 FINAL DRIVE RATIO

LS PREFERRED EQUIPMENT GROUP includes standard equipment

LICENSE PLATE FRONT MOUNTING PACKAGE

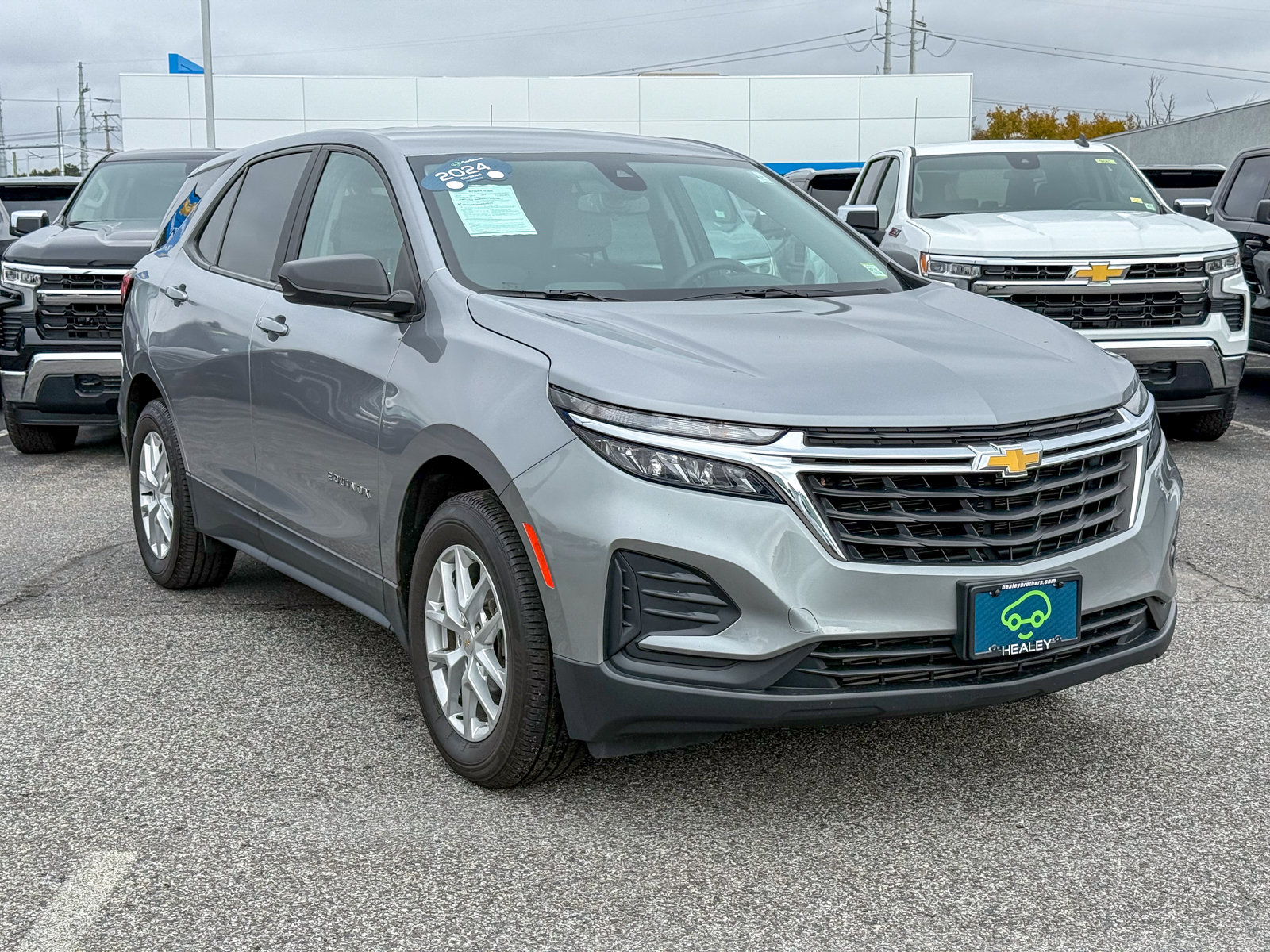

Vehicle Name - Chevrolet Equinox

Body Style - Sport Utility Vehicle

Drivetrain - All Wheel Drive

EPA Classification - 4WD Sport Utility Vehicle

Passenger Capacity - 5

Passenger Volume (ft?) - 103.5

Base Curb Weight (lbs) - 3465

Tons/yr of CO2 Emissions @ 15K mi/year - 6.8

Fuel Economy Est-Combined - 26

EPA Fuel Economy Est - City (MPG) - 24

EPA Fuel Economy Est - Hwy (MPG) - 30

Dead Weight Hitch - Max Trailer Wt. (lbs) - 1500

Dead Weight Hitch - Max Tongue Wt. (lbs) - 150

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 1500

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 150

Engine Order Code - LSD

Engine Type - Turbocharged Gas I4

Displacement - 1.5L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 175 @ 5600

SAE Net Torque @ RPM - 203 @ 2000-4000

Trans Order Code - MNH

Trans Type - 6

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.584

Second Gear Ratio (:1) - 2.964

Third Gear Ratio (:1) - 1.912

Fourth Gear Ratio (:1) - 1.446

Fifth Gear Ratio (:1) - 1.00

Sixth Gear Ratio (:1) - 0.746

Reverse Ratio (:1) - 2.940

Clutch Size (in) - N/A

Final Drive Axle Ratio (:1) - 3.87

Transfer Case Gear Ratio (:1), High - - TBD -

Transfer Case Gear Ratio (:1), Low - - TBD -

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Maximum Alternator Capacity (amps) - - TBD -

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - Four-Link

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - N/A

Shock Absorber Diameter - Rear (mm) - N/A

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - 5CY

Rear Tire Order Code - 5CY

Spare Tire Order Code - RJA

Front Tire Size - P225/65R17

Rear Tire Size - P225/65R17

Spare Tire Size - T135/70R16

Front Wheel Size (in) - 17 x - TBD -

Rear Wheel Size (in) - 17 x - TBD -

Spare Wheel Size (in) - 16 x -TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Pwr Rack & Pinion

Steering Ratio (:1), Overall - - TBD -

Lock to Lock Turns (Steering) - - TBD -

Turning Diameter - Curb to Curb (ft) - 37.4

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 11.8 x - TBD -

Rear Brake Rotor Diam x Thickness (in) - 11.3 x - TBD -

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 15.6

Front Head Room (in) - 40

Front Leg Room (in) - 40.9

Front Shoulder Room (in) - 57.2

Front Hip Room (in) - 54.2

Second Head Room (in) - 38.5

Second Leg Room (in) - 39.9

Second Shoulder Room (in) - 55.5

Second Hip Room (in) - 51.7

Wheelbase (in) - 107.3

Length, Overall (in) - 183.1

Width, Max w/o mirrors (in) - 72.6

Height, Overall (in) - 65.4

Track Width, Front (in) - 62.2

Track Width, Rear (in) - 62.2

Min Ground Clearance (in) - 7.9

Rear Door Opening Height (in) - - TBD -

Rear Door Opening Width (in) - - TBD -

Cargo Area Length @ Floor to Seat 1 (in) - - TBD -

Cargo Area Length @ Floor to Seat 2 (in) - - TBD -

Cargo Area Length @ Floor to Seat 3 (in) -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - - TBD -

Cargo Box (Area) Height (in) - - TBD -

Liftover Height (in) - - TBD -

Cargo Volume to Seat 1 (ft?) - 63.9

Cargo Volume to Seat 2 (ft?) - 29.9

Cargo Volume to Seat 3 (ft?) -

Model Group - Equinox

Vehicle Segment - Compact Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 1.5

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - Mexico Chevrolet MPV
