EMISSIONS, COLORADO, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, MINNESOTA, NEVADA, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT, VIRGINIA AND WASHINGTON STATE REQUIREMENTS

ENGINE, 6.2L ECOTEC3 V8

TRANSMISSION, 10-SPEED AUTOMATIC WITH ELECTRONIC PRECISION SHIFT, ELECTRONICALLY CONTROLLED

GVWR, 7100 LBS. (3221 KG)

REAR AXLE, 3.23 RATIO

AT4 PREFERRED EQUIPMENT GROUP

STERLING METALLIC

JET BLACK WITH KALAHARI ACCENTS, PERFORATED LEATHER FRONT SEAT TRIM

TECHNOLOGY PACKAGE

AT4 PREFERRED PACKAGE

COOLING, EXTERNAL ENGINE OIL COOLER

COOLING, AUXILIARY EXTERNAL TRANSMISSION OIL COOLER

ALTERNATOR, 170 AMPS

LPO, CARGO TIE-DOWNS, (4)

ACTIVE EXHAUST, DUAL, SPORT-MODE ENABLED

SUNROOF, POWER

WINDOW, POWER, REAR SLIDING WITH REAR DEFOGGER

LICENSE PLATE KIT, FRONT

MULTICOLOR 15" DIAGONAL HEAD-UP DISPLAY

UNIVERSAL HOME REMOTE

REAR CAMERA MIRROR, INSIDE REARVIEW AUTO-DIMMING

LPO, REAR UNDERSEAT STORAGE, COMPOSITE STORAGE BIN

BED VIEW CAMERA

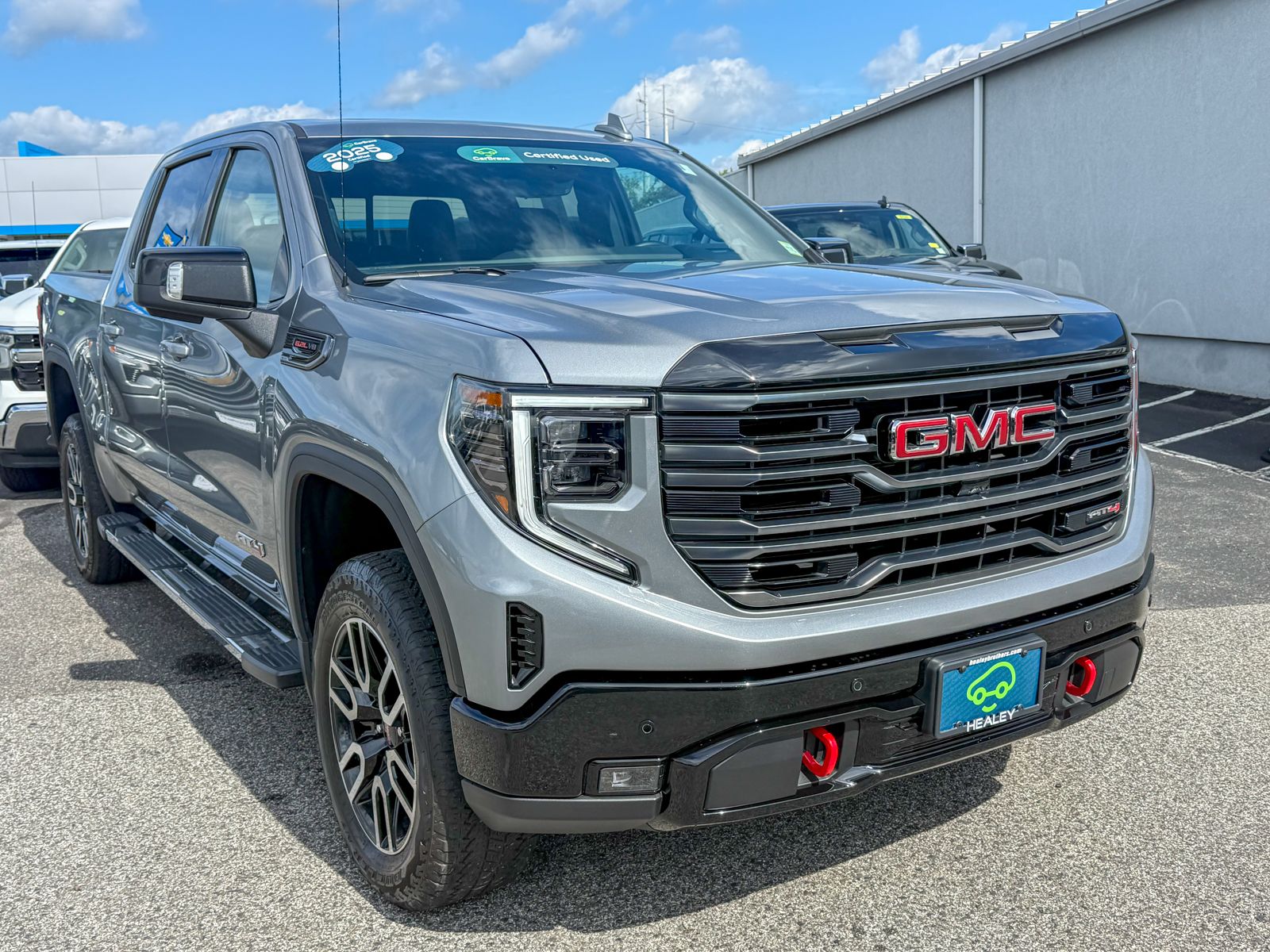

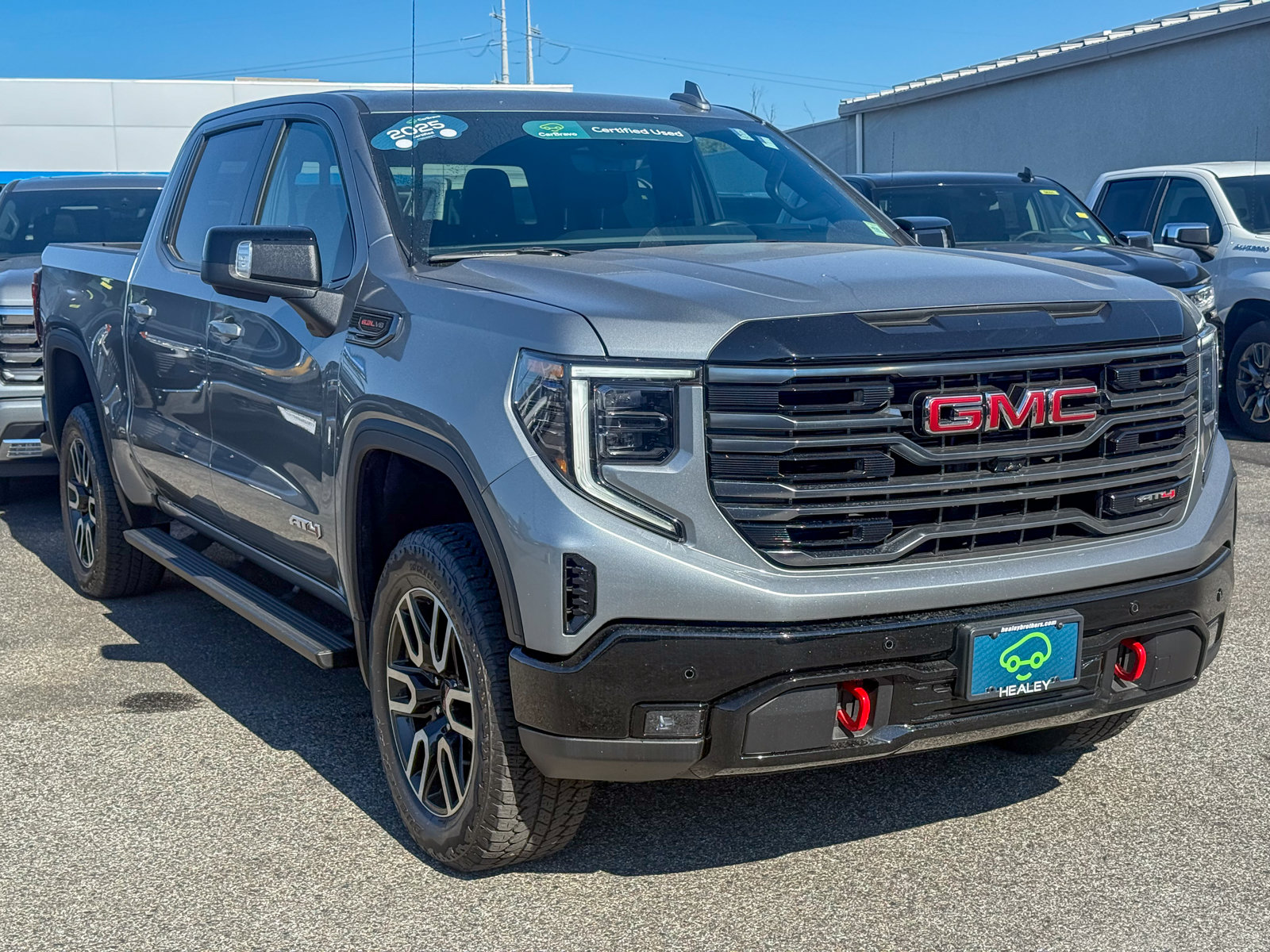

Vehicle Name - GMC Sierra 1500

Body Style - Crew Cab Pickup

Body Code - E63

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Gross Axle Wt Rating - Front (lbs) - 3800

Gross Axle Wt Rating - Rear (lbs) - 3800

Curb Weight - Front (lbs) - 2846

Curb Weight - Rear (lbs) - 1982

EPA Greenhouse Gas Score - 3

Fuel Economy Est-Combined (MPG) - 16

EPA Fuel Economy Est - City (MPG) - 15

EPA Fuel Economy Est - Hwy (MPG) - 19

Tons/yr of CO2 Emissions @ 15K mi/year - 8.9

Gross Vehicle Weight Rating Cap (lbs) - 7100

Gross Combined Wt Rating (lbs) - 15000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 9000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 900

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - 7400

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - 1850

Maximum Trailering Capacity (lbs) - 9000

Engine Type - Gas V8

Fuel System - Direct Injection

Engine Order Code - L87

Displacement - 6.2L/376

SAE Net Horsepower @ RPM - 420 @ 5600

SAE Net Torque @ RPM - 460 @ 4100

Trans Order Code - MHS

Trans Type - 10

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.70

Second Gear Ratio (:1) - 2.99

Third Gear Ratio (:1) - 2.15

Fourth Gear Ratio (:1) - 1.77

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.28

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Ninth Gear Ratio (:1) - 0.69

Tenth Gear Ratio (:1) - 0.64

Reverse Ratio (:1) - 4.87

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - Magna MP3023/4

Transfer Case Gear Ratio (:1), High - 1.00

Transfer Case Gear Ratio (:1), Low - 2.69

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 730

Cold Cranking Amps @ 0? F (2nd) -

Maximum Alternator Capacity (amps) - 170

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - Yes

Frame Type - Hydroformed

Suspension Type - Front - Independent

Suspension Type - Rear - Solid Axle

Spring Capacity - Front (lbs) - 3800

Spring Capacity - Rear (lbs) - 3850

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - 3800

Axle Capacity - Rear (lbs) - 3800

Axle Ratio (:1) - Front - 3.23

Axle Ratio (:1) - Rear - 3.23

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - 1.30

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - QAE

Rear Tire Order Code - QAE

Spare Tire Order Code - QAQ

Front Tire Size - 275/60R20SL

Rear Tire Size - 275/60R20SL

Spare Tire Size - 255/80R17SL

Front Tire Capacity (lbs) - 3800

Rear Tire Capacity (lbs) - 3800

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - N/A

Front Wheel Size (in) - 20 x 9

Rear Wheel Size (in) - 20 x 9

Spare Wheel Size (in) - 17 x 8

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 47.3

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13 x 1.18

Rear Brake Rotor Diam x Thickness (in) - 13.6 x 0.79

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 24

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 43.03

Front Leg Room (in) - 44.53

Front Shoulder Room (in) - 64.54

Front Hip Room (in) - 60.78

Second Head Room (in) - 40.12

Second Leg Room (in) - 43.4

Second Shoulder Room (in) - 64

Second Hip Room (in) - 59.24

Wheelbase (in) - 147.55

Length, Overall (in) - 232.9

Width, Max w/o mirrors (in) - 81.24

Height, Overall (in) - 78.35

Overhang, Front (in) - - TBD -

Overhang, Rear w/o bumper (in) - - TBD -

Front Bumper to Back of Cab (in) - - TBD -

Cab to Axle (in) - - TBD -

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) - - TBD -

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - - TBD -

Ground Clearance, Front (in) - 11.1

Ground Clearance, Rear (in) - 11.1

Cargo Box Length @ Floor (in) - 69.92

Cargo Box Width @ Top, Rear (in) - - TBD -

Cargo Box Width @ Floor (in) - 71.4

Cargo Box Width @ Wheelhousings (in) - 50.63

Cargo Box (Area) Height (in) - 22.4

Tailgate Width (in) - - TBD -

Cargo Volume (ft?) - 62.9

Ext'd Cab Cargo Volume (ft?) - - TBD -

Model Group - Sierra

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 3.0

Engine Camshaft - OHV

Engine Block Type - aluminum

Engine Cylinder Count - 8

Engine Valve Count - 4

Country of Origin - Mexico GMC Truck
