EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

REAR AXLE, 3.42 RATIO

Z71 PREFERRED EQUIPMENT GROUP

TIRES, 255/65R17 ALL-TERRAIN, BLACKWALL

SOLID PAINT

CAJUN RED TINTCOAT

JET BLACK, CLOTH/LEATHERETTE SEAT TRIM

TRAILER BRAKE CONTROLLER, INTEGRATED

TRAILERING PACKAGE, HEAVY-DUTY

TOW/HAUL MODE

LPO, FRONT AND REAR SPLASH GUARDS

LICENSE PLATE KIT, FRONT

LPO, ALL-WEATHER FLOOR MATS

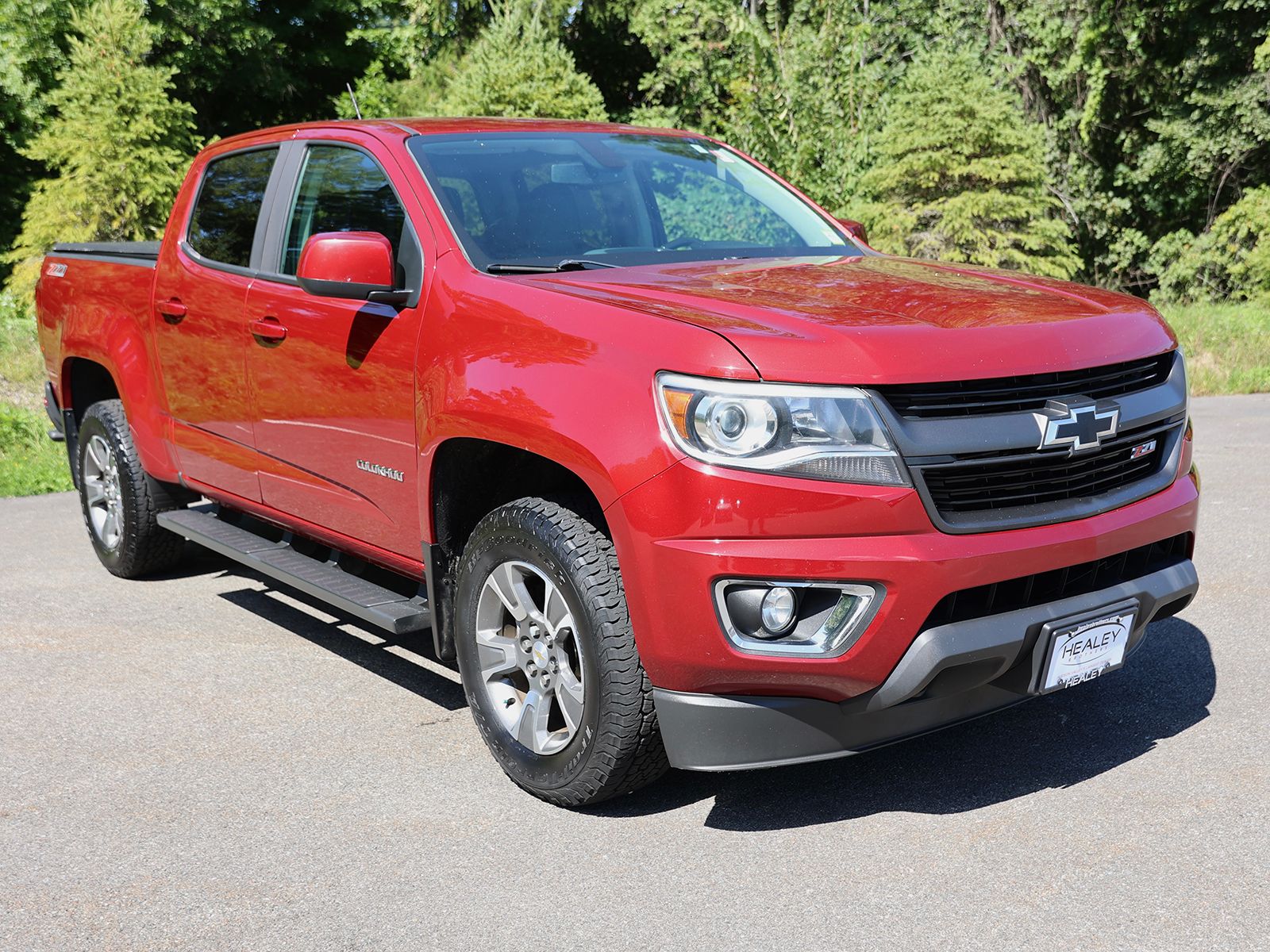

Vehicle Name - Chevrolet Colorado

Body Style - Crew Cab Pickup

Body Code - E63

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Number of Passenger Doors - 4

Gross Axle Wt Rating - Front (lbs) - 3200

Gross Axle Wt Rating - Rear (lbs) - 3500

Curb Weight - Front (lbs) - 2213

Curb Weight - Rear (lbs) - 1784

Fuel Economy Est-Combined (MPG) - 19

EPA Fuel Economy Est - City (MPG) - 17

EPA Fuel Economy Est - Hwy (MPG) - 24

Tons/yr of CO2 Emissions @ 15K mi/year - 9.3

Gross Vehicle Weight Rating Cap (lbs) - 6000

Gross Combined Wt Rating (lbs) - 12000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 7000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 700

Fifth Wheel Hitch - Max Trailer Wt. (lbs) -

Fifth Wheel Hitch - Max Tongue Wt. (lbs) -

Maximum Trailering Capacity (lbs) - 7600

Engine Order Code - LGZ

Engine Type - Gas V6

Displacement - 3.6L/222

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 308 @ 6800

SAE Net Torque @ RPM - 275 @ 4000

Trans Order Code - M5T

Trans Type - 8

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.62

Second Gear Ratio (:1) - 3.04

Third Gear Ratio (:1) - 2.07

Fourth Gear Ratio (:1) - 1.66

Fifth Gear Ratio (:1) - 1.26

Sixth Gear Ratio (:1) - 1.00

Reverse Ratio (:1) - 3.93

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - Magna MP3025G

Transfer Case Gear Ratio (:1), High - 1.00

Transfer Case Gear Ratio (:1), Low - 2.72

Transfer Case Power Take Off - - TBD -

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Cold Cranking Amps @ 0? F (2nd) -

Maximum Alternator Capacity (amps) - - TBD -

Maximum Alternator Watts - - TBD -

Total Cooling System Capacity (qts) - 15.6

Engine Oil Cooler -

Frame Type - - TBD -

Suspension Type - Front - Independent

Suspension Type - Rear - Multi-Leaf

Spring Capacity - Front (lbs) - - TBD -

Spring Capacity - Rear (lbs) - - TBD -

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - - TBD -

Axle Capacity - Rear (lbs) - - TBD -

Axle Ratio (:1) - Front - 3.42

Axle Ratio (:1) - Rear - 3.42

Shock Absorber Diameter - Front (mm) -

Shock Absorber Diameter - Rear (mm) -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - RGO

Rear Tire Order Code - RGO

Spare Tire Order Code - ZJJ

Front Tire Size - 255/65R17

Rear Tire Size - 255/65R17

Spare Tire Size - 265/70R16

Front Tire Capacity (lbs) - - TBD -

Rear Tire Capacity (lbs) - - TBD -

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - - TBD -

Front Wheel Size (in) - 17 x 8

Rear Wheel Size (in) - 17 x 8

Spare Wheel Size (in) - 16 x 7

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Pwr Rack & Pinion

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 41.3

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.2 x - TBD -

Rear Brake Rotor Diam x Thickness (in) - 12.8 x - TBD -

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 21

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 41.40

Front Leg Room (in) - 45.00

Front Shoulder Room (in) - 57.50

Front Hip Room (in) - 55.00

Second Head Room (in) - 38.30

Second Leg Room (in) - 35.80

Second Shoulder Room (in) - 56.20

Second Hip Room (in) - 53.30

Wheelbase (in) - 128.30

Length, Overall (in) - 212.7

Width, Max w/o mirrors (in) - 74.30

Height, Overall (in) - 70.60

Overhang, Front (in) - 36.90

Overhang, Rear w/o bumper (in) - 47.2

Front Bumper to Back of Cab (in) - - TBD -

Cab to Axle (in) - - TBD -

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) - 34.5

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - - TBD -

Ground Clearance, Front (in) - 8.20

Ground Clearance, Rear (in) - 8.20

Cargo Box Length @ Floor (in) - 61.70

Cargo Box Width @ Top, Rear (in) - - TBD -

Cargo Box Width @ Floor (in) - 57.80

Cargo Box Width @ Wheelhousings (in) - 44.40

Cargo Box (Area) Height (in) - - TBD -

Tailgate Width (in) - - TBD -

Cargo Volume (ft?) - - TBD -

Ext'd Cab Cargo Volume (ft?) - - TBD -

Seventh Gear Ratio (:1) - 0.85

Eighth Gear Ratio (:1) - 0.66

Model Group - Colorado

Vehicle Segment - Small Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 2.8

Engine Camshaft - DOHC

Engine Block Type - iron

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States Chevrolet Trucks
