EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

ENGINE, 5.3L ECOTEC3 V8

GVWR, 7000 LBS. (3175 KG)

REAR AXLE, 3.42 RATIO

CUSTOM TRAIL BOSS PREFERRED EQUIPMENT GROUP

NORTHSKY BLUE METALLIC

JET BLACK, CLOTH SEAT TRIM

LPO, OFF-ROAD APPEARANCE PACKAGE

CUSTOM CONVENIENCE PACKAGE

INFOTAINMENT PACKAGE

COOLING, AUXILIARY EXTERNAL TRANSMISSION OIL COOLER

TRAILER BRAKE CONTROLLER, INTEGRATED

EXHAUST, DUAL WITH POLISHED OUTLETS

LPO, OFF-ROAD ASSIST STEPS

LPO, TONNEAU COVER, PREMIUM SOFT ROLL-UP

LPO, SPORT BAR, BED-MOUNTED, TUBULAR

LPO, MOLDED SPLASH GUARDS, BLACK

LED CARGO AREA LIGHTING

LICENSE PLATE KIT, FRONT

TAILGATE, GATE FUNCTION MANUAL

SIRIUSXM RADIO

LPO, ALL-WEATHER FLOOR LINERS, 1ST AND 2ND ROWS

REMOTE VEHICLE STARTER SYSTEM

THEFT-DETERRENT SYSTEM, UNAUTHORIZED ENTRY

DEFOGGER, REAR-WINDOW ELECTRIC

ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE

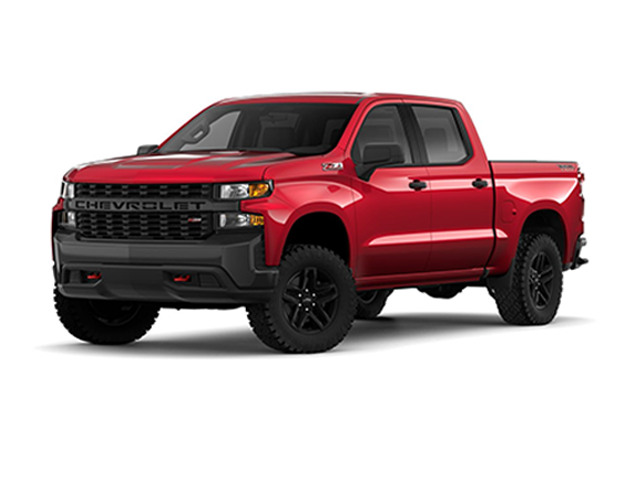

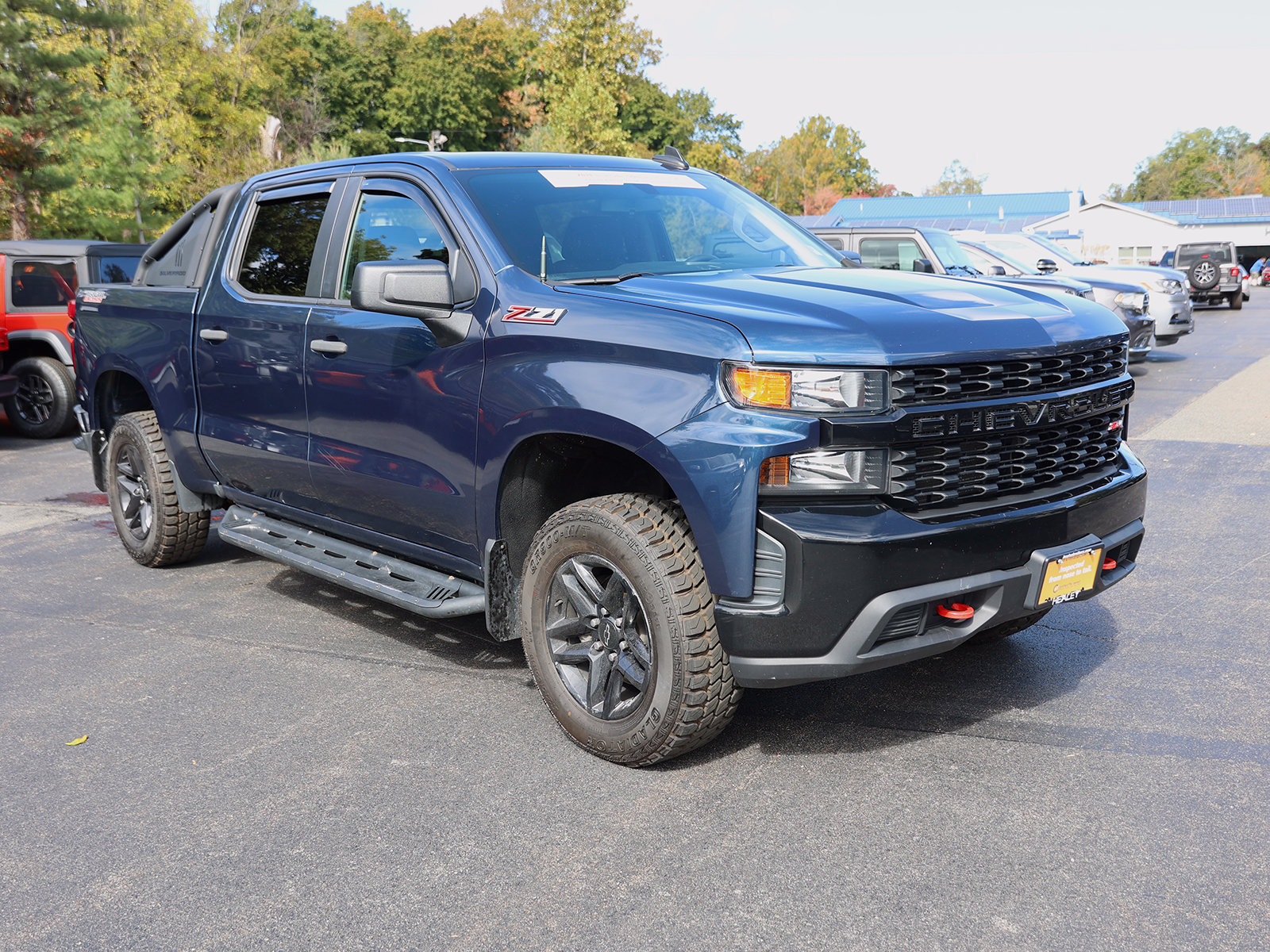

Vehicle Name - Chevrolet Silverado 1500

Body Style - Crew Cab Pickup

Body Code - E63

Drivetrain - Four Wheel Drive

Passenger Capacity - 6

Gross Axle Wt Rating - Front (lbs) - 3800

Gross Axle Wt Rating - Rear (lbs) - 3800

Curb Weight - Front (lbs) - 2839

Curb Weight - Rear (lbs) - 1976

Fuel Economy Est-Combined (MPG) - 16

EPA Fuel Economy Est - City (MPG) - 14

EPA Fuel Economy Est - Hwy (MPG) - 18

Tons/yr of CO2 Emissions @ 15K mi/year - 11.0

Gross Vehicle Weight Rating Cap (lbs) - 7000

Gross Combined Wt Rating (lbs) - 15000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 9500

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 950

Fifth Wheel Hitch - Max Trailer Wt. (lbs) -

Fifth Wheel Hitch - Max Tongue Wt. (lbs) -

Maximum Trailering Capacity (lbs) - 11000

Engine Type - Gas V8

Fuel System - Direct Injection

Engine Order Code - L82

Displacement - 5.3L/325

SAE Net Horsepower @ RPM - 355 @ 5600

SAE Net Torque @ RPM - 383 @ 4100

Trans Order Code - MYC

Trans Type - 6

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.03

Second Gear Ratio (:1) - 2.36

Third Gear Ratio (:1) - 1.53

Fourth Gear Ratio (:1) - 1.15

Fifth Gear Ratio (:1) - 0.85

Sixth Gear Ratio (:1) - 0.66

Reverse Ratio (:1) - 3.06

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - Magna MP3023/4

Transfer Case Gear Ratio (:1), High - 1.00

Transfer Case Gear Ratio (:1), Low - 2.69

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 720

Cold Cranking Amps @ 0? F (2nd) -

Maximum Alternator Capacity (amps) - 170

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - - TBD -

Frame Type - - TBD -

Suspension Type - Front - Independent

Suspension Type - Rear - Solid Axle

Spring Capacity - Front (lbs) - - TBD -

Spring Capacity - Rear (lbs) - - TBD -

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - - TBD -

Axle Capacity - Rear (lbs) - - TBD -

Axle Ratio (:1) - Front - 3.42

Axle Ratio (:1) - Rear - 3.42

Shock Absorber Diameter - Front (mm) - 50.0

Shock Absorber Diameter - Rear (mm) - 51.0

Stabilizer Bar Diameter - Front (in) - 1.30

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - R3O

Rear Tire Order Code - R3O

Spare Tire Order Code - QAQ

Front Tire Size - LT275/65R18C

Rear Tire Size - LT275/65R18C

Spare Tire Size - 255/80R17SL

Front Tire Capacity (lbs) - - TBD -

Rear Tire Capacity (lbs) - - TBD -

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - N/A

Front Wheel Size (in) - 18 x 8.5

Rear Wheel Size (in) - 18 x 8.5

Spare Wheel Size (in) - 17 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material -

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 46.3

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.5 x 1.18

Rear Brake Rotor Diam x Thickness (in) - 13.6 x 0.79

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 24

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 43.03

Front Leg Room (in) - 44.53

Front Shoulder Room (in) - 66.02

Front Hip Room (in) - 61.18

Second Head Room (in) - 40.12

Second Leg Room (in) - 43.4

Second Shoulder Room (in) - 65.16

Second Hip Room (in) - 60.24

Wheelbase (in) - 147.53

Length, Overall (in) - 231.7

Width, Max w/o mirrors (in) - 81.24

Height, Overall (in) - 78.35

Overhang, Front (in) - - TBD -

Overhang, Rear w/o bumper (in) - - TBD -

Front Bumper to Back of Cab (in) - - TBD -

Cab to Axle (in) - - TBD -

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) - - TBD -

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - - TBD -

Ground Clearance, Front (in) - 10.88

Ground Clearance, Rear (in) - 10.88

Cargo Box Length @ Floor (in) - 69.92

Cargo Box Width @ Top, Rear (in) - - TBD -

Cargo Box Width @ Floor (in) - 71.4

Cargo Box Width @ Wheelhousings (in) - 50.63

Cargo Box (Area) Height (in) - 22.4

Tailgate Width (in) - - TBD -

Cargo Volume (ft?) - 62.9

Ext'd Cab Cargo Volume (ft?) - - TBD -

Model Group - Silverado

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 5.3

Engine Camshaft - OHV

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 2

Country of Origin - United States Chevrolet Trucks
