EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

ENGINE, 5.3L ECOTEC3 V8

TRANSMISSION, 10-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

GVWR, 7100 LBS. (3221 KG)

REAR AXLE, 3.23 RATIO

RST PREFERRED EQUIPMENT GROUP

BLACK

JET BLACK, CLOTH SEAT TRIM

COOLING, EXTERNAL ENGINE OIL COOLER

COOLING, AUXILIARY EXTERNAL TRANSMISSION OIL COOLER

ALTERNATOR, 170 AMPS

LICENSE PLATE KIT, FRONT

NOT EQUIPPED WITH STEERING COLUMN LOCK, SEE DEALER FOR DETAILS

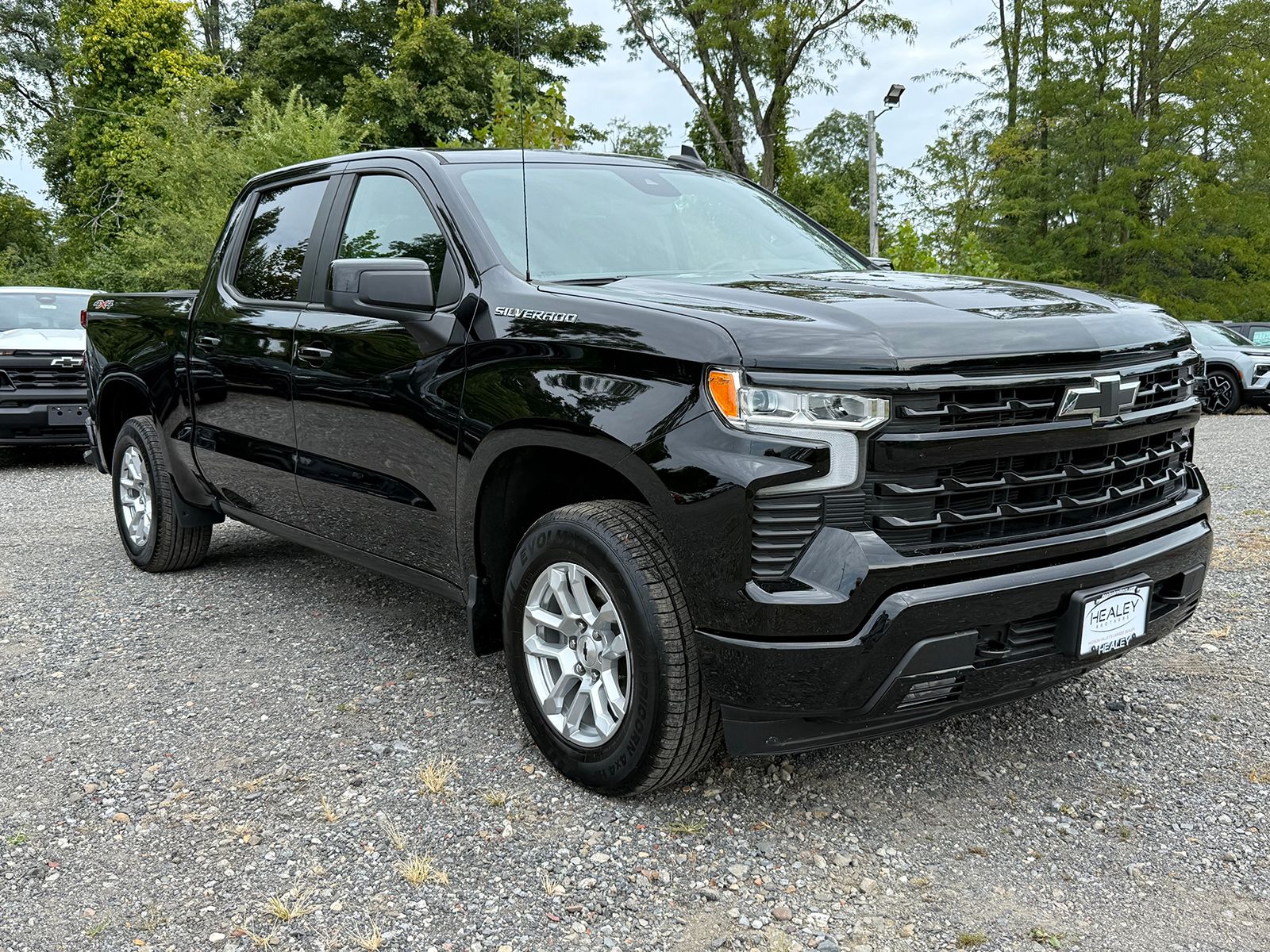

Vehicle Name - Chevrolet Silverado 1500

Body Style - Crew Cab Pickup

Body Code - E63

Drivetrain - Four Wheel Drive

Passenger Capacity - 6

Gross Axle Wt Rating - Front (lbs) - 3800

Gross Axle Wt Rating - Rear (lbs) - 4150

Curb Weight - Front (lbs) - 2845

Curb Weight - Rear (lbs) - 1981

Fuel Economy Est-Combined (MPG) - 17

EPA Fuel Economy Est - City (MPG) - 15

EPA Fuel Economy Est - Hwy (MPG) - 20

Tons/yr of CO2 Emissions @ 15K mi/year - 10.4

EPA Greenhouse Gas Score - 3

Gross Vehicle Weight Rating Cap (lbs) - 7100

Gross Combined Wt Rating (lbs) - 16800

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 11000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 1100

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - 9900

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - 2475

Maximum Trailering Capacity (lbs) - 13200

Engine Type - Gas V8

Fuel System - Direct Injection

Engine Order Code - L84

Displacement - 5.3L/325

SAE Net Horsepower @ RPM - 355 @ 5600

SAE Net Torque @ RPM - 383 @ 4100

Trans Order Code - MHT

Trans Type - 10

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.70

Second Gear Ratio (:1) - 2.99

Third Gear Ratio (:1) - 2.15

Fourth Gear Ratio (:1) - 1.77

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.28

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Ninth Gear Ratio (:1) - 0.69

Tenth Gear Ratio (:1) - 0.64

Reverse Ratio (:1) - 4.87

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - Magna MP3023/4

Transfer Case Gear Ratio (:1), High - 1.00

Transfer Case Gear Ratio (:1), Low - 2.69

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 730

Cold Cranking Amps @ 0? F (2nd) -

Maximum Alternator Capacity (amps) - 170

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - - TBD -

Frame Type - Box Ladder

Suspension Type - Front - Independent coil-over-shock

Suspension Type - Rear - Solid Axle

Spring Capacity - Front (lbs) - 3800

Spring Capacity - Rear (lbs) - 4150

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - 3800

Axle Capacity - Rear (lbs) - 4150

Axle Ratio (:1) - Front - 3.23

Axle Ratio (:1) - Rear - 3.23

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - 1.30

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - QDF

Rear Tire Order Code - QDF

Spare Tire Order Code - XCQ

Front Tire Size - 265/65R18SL

Rear Tire Size - 265/65R18SL

Spare Tire Size - 265/70R17SL

Front Tire Capacity (lbs) - 3800

Rear Tire Capacity (lbs) - 3800

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - N/A

Front Wheel Size (in) - 18 x 8.5

Rear Wheel Size (in) - 18 x 8.5

Spare Wheel Size (in) - 17 x 8

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 46.3

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13 x 1.18

Rear Brake Rotor Diam x Thickness (in) - 13.6 x 0.79

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 24

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 43.03

Front Leg Room (in) - 44.53

Front Shoulder Room (in) - 66.02

Front Hip Room (in) - 61.18

Second Head Room (in) - 40.12

Second Leg Room (in) - 43.4

Second Shoulder Room (in) - 65.16

Second Hip Room (in) - 60.24

Wheelbase (in) - 147.4

Length, Overall (in) - 231.88

Width, Max w/o mirrors (in) - 81.24

Height, Overall (in) - 75.51

Overhang, Front (in) - - TBD -

Overhang, Rear w/o bumper (in) - - TBD -

Front Bumper to Back of Cab (in) - - TBD -

Cab to Axle (in) - - TBD -

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) - - TBD -

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - - TBD -

Ground Clearance, Front (in) - 8.08

Ground Clearance, Rear (in) - 8.08

Cargo Box Length @ Floor (in) - 69.92

Cargo Box Width @ Top, Rear (in) - - TBD -

Cargo Box Width @ Floor (in) - 71.4

Cargo Box Width @ Wheelhousings (in) - 50.63

Cargo Box (Area) Height (in) - 22.4

Tailgate Width (in) - - TBD -

Cargo Volume (ft?) - 62.9

Ext'd Cab Cargo Volume (ft?) - - TBD -

Model Group - Silverado

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 2.7

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States Chevrolet Trucks
