3.5L V6 ECOBOOST HIGH OUTPUT ENGINE

DARK MATTER GRAY METALLIC

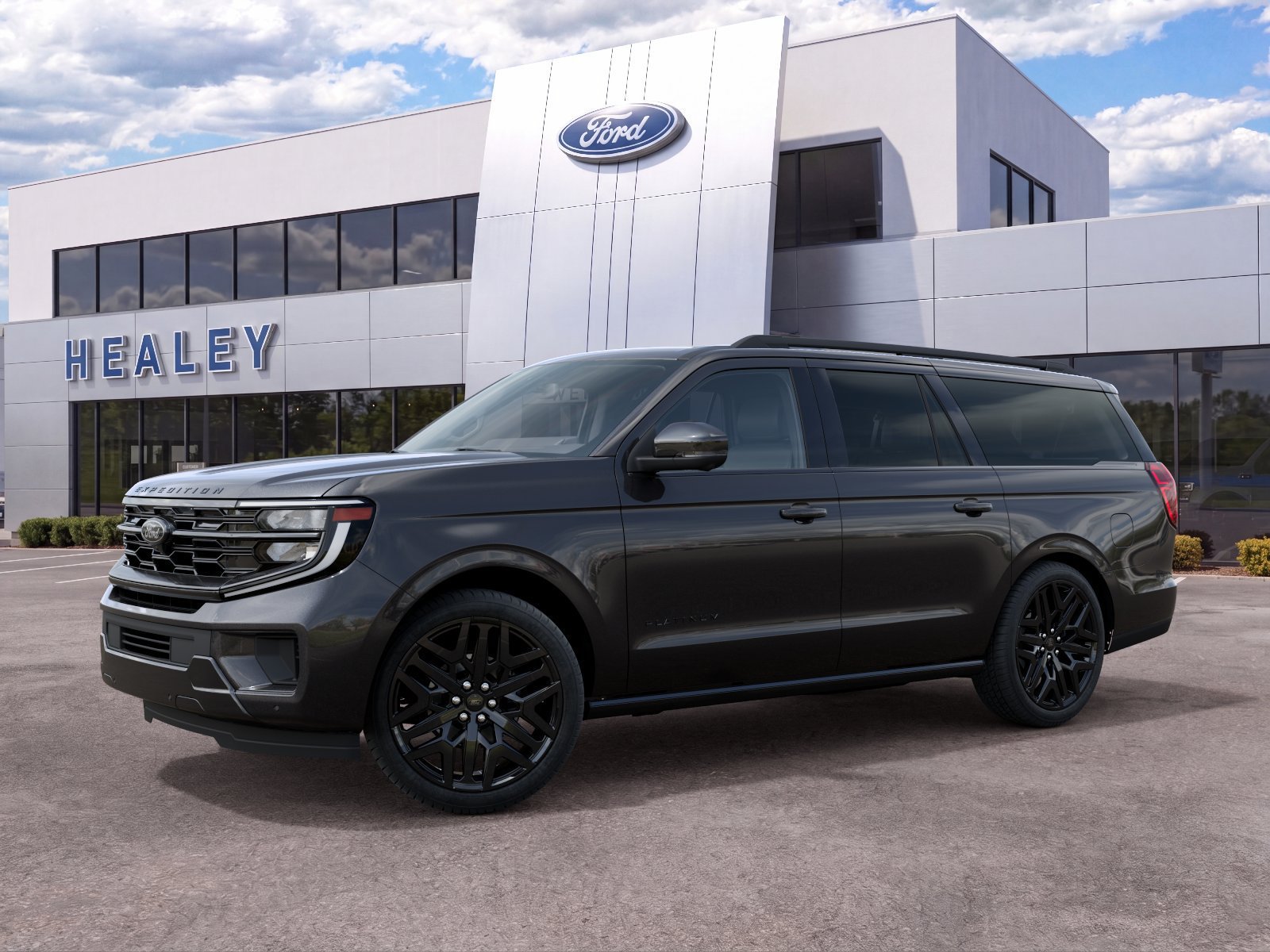

Vehicle Name - Ford Expedition Max

Body Style - Sport Utility

Body Code - S

Drivetrain - Four Wheel Drive

Passenger Capacity - 8

Base Curb Weight (lbs) - 5794

Gross Axle Wt Rating - Front (lbs) - 3550

Gross Axle Wt Rating - Rear (lbs) - 4540

Curb Weight - Front (lbs) - 2884

Curb Weight - Rear (lbs) - 2910

EPA Greenhouse Gas Score - 3.0 (Est)

Gross Vehicle Weight Rating Cap (lbs) - 7750

Fuel Economy Est-Combined (MPG) - 18 (Est)

EPA Fuel Economy Est - City (MPG) - 15 (Est)

EPA Fuel Economy Est - Hwy (MPG) - 22 (Est)

Gross Combined Wt Rating (lbs) - 15600

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 9000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 900

Maximum Trailering Capacity (lbs) - 9000

Engine Order Code - 99G

Engine Type - Twin Turbo Premium Gasoline V-6

Displacement - 3.5 L/213

Fuel System - Port/Direct Injection

SAE Net Horsepower @ RPM - 440 @ 5400

SAE Net Torque @ RPM - 510 @ 3300

Trans Order Code - 44U

Trans Type - 10

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.70

Second Gear Ratio (:1) - 2.98

Third Gear Ratio (:1) - 2.15

Fourth Gear Ratio (:1) - 1.77

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.27

Reverse Ratio (:1) - 4.87

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 675

Cold Cranking Amps @ 0? F (2nd) - 675

Tons/yr of CO2 Emissions @ 15K mi/year - 8.3 (Est)

Engine Oil Cooler - No

Suspension Type - Front - Double Wishbone

Suspension Type - Rear - Multi-Link

Axle Type - Front - Independent

Axle Type - Rear - Independent

Axle Ratio (:1) - Front - 3.73

Axle Ratio (:1) - Rear - 3.73

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - P275/50HR22

Rear Tire Size - P275/50HR22

Spare Tire Size - Full-Size

Front Wheel Size (in) - 22 X 9

Rear Wheel Size (in) - 22 X 9

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 43.3

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.8

Rear Brake Rotor Diam x Thickness (in) - 13.2

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 27.8

Front Head Room (in) - 41.8

Front Leg Room (in) - 43.9

Front Shoulder Room (in) - 64.9

Front Hip Room (in) - 62.3

Second Head Room (in) - 40

Second Leg Room (in) - 41.1

Second Shoulder Room (in) - 64.8

Second Hip Room (in) - 62.3

Third Head Room (in) - 37.4

Third Leg Room (in) - 36.5

Third Shoulder Room (in) - 64.2

Third Hip Room (in) - 51.4

Wheelbase (in) - 131.5

Length, Overall (in) - 221.7

Width, Max w/o mirrors (in) - 81.5

Height, Overall (in) - 77.9

Track Width, Front (in) - 68.1

Track Width, Rear (in) - 67.8

Min Ground Clearance (in) - 8.8

Cargo Area Length @ Floor to Seat 1 (in) - 102.2

Cargo Area Length @ Floor to Seat 2 (in) - 71.7

Cargo Area Length @ Floor to Seat 3 (in) - 33.2

Cargo Area Width @ Beltline (in) - 63.4

Cargo Box Width @ Wheelhousings (in) - 51.4

Cargo Box (Area) Height (in) - 37.7

Cargo Volume to Seat 1 (ft?) - 123.1

Cargo Volume to Seat 2 (ft?) - 75.4

Cargo Volume to Seat 3 (ft?) - 36.1

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Country of Origin - United States MPV
