GRANITE CLEARCOAT

BLACK, CLOTH LOW-BACK BUCKET SEATS

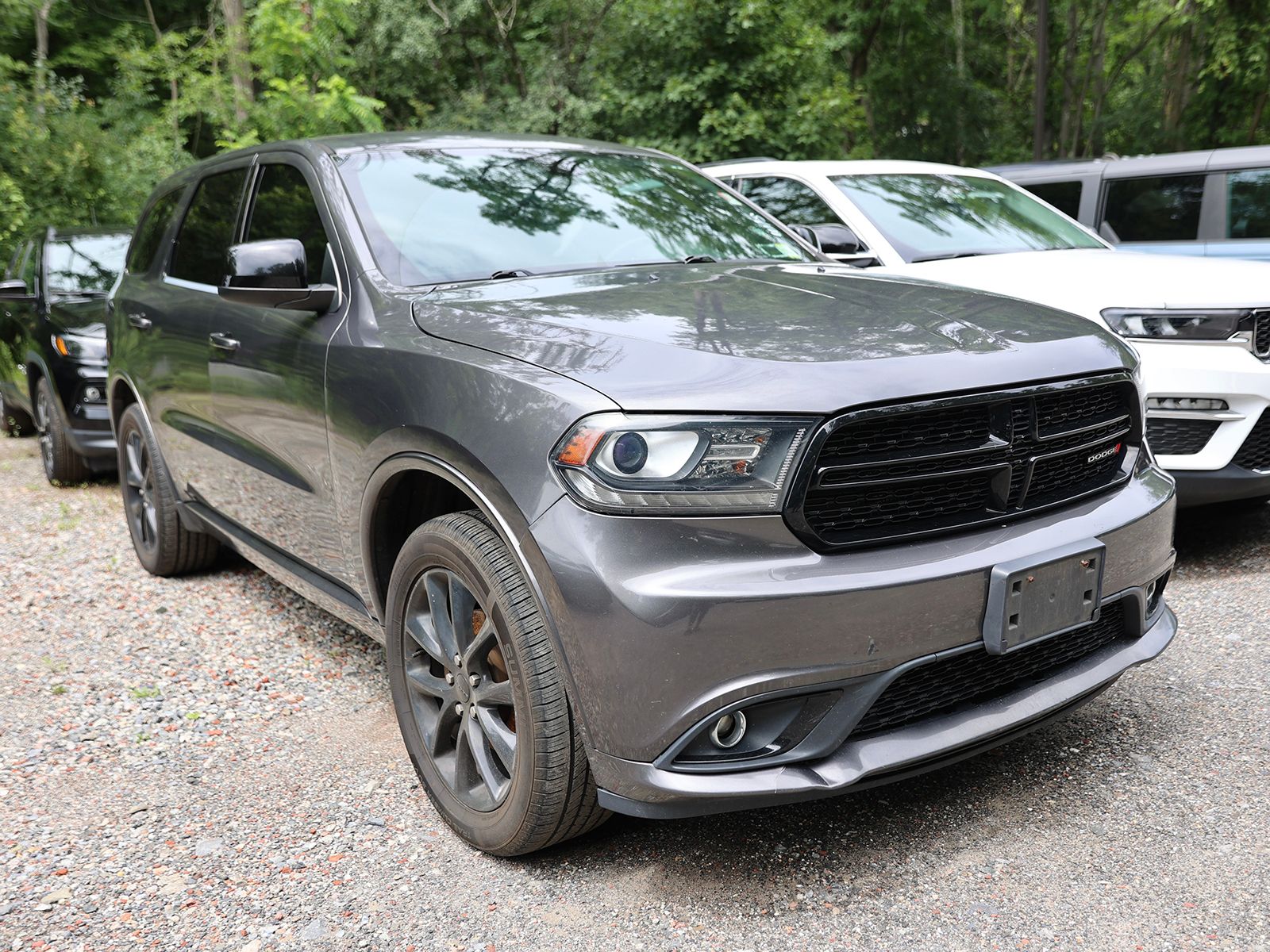

Vehicle Name - Dodge Durango

Body Style - Sport Utility

Body Code - S

Drivetrain - All Wheel Drive

Passenger Capacity - 6

Base Curb Weight (lbs) - 4814

Gross Vehicle Weight Rating Cap (lbs) - 6500

Fuel Economy Est-Combined (MPG) - 21

EPA Fuel Economy Est - City (MPG) - 18

EPA Fuel Economy Est - Hwy (MPG) - 25

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 6200

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 620

Maximum Trailering Capacity (lbs) - 6200

Engine Order Code - ERC

Engine Type - Regular Unleaded V-6

Displacement - 3.6 L/220

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 293 @ 6400

SAE Net Torque @ RPM - 260 @ 4000

Trans Order Code - DFT

Trans Type - 8

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.71

Second Gear Ratio (:1) - 3.14

Third Gear Ratio (:1) - 2.11

Fourth Gear Ratio (:1) - 1.67

Fifth Gear Ratio (:1) - 1.28

Sixth Gear Ratio (:1) - 1.00

Reverse Ratio (:1) - 3.29

Trans PTO Access - No

Transfer Case Model - None

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 650

Cold Cranking Amps @ 0? F (2nd) - 650

Tons/yr of CO2 Emissions @ 15K mi/year - 8.4

Maximum Alternator Capacity (amps) - 180

Engine Oil Cooler - Regular Duty

Suspension Type - Front - Short And Long Arm

Suspension Type - Rear - Multi-Link

Axle Type - Front - Independent

Axle Type - Rear - Independent

Axle Ratio (:1) - Front - 3.45

Axle Ratio (:1) - Rear - 3.45

Front Tire Order Code - TKJ

Rear Tire Order Code - TKJ

Spare Tire Order Code - TBB

Front Tire Size - P265/50TR20

Rear Tire Size - P265/50TR20

Spare Tire Size - Full-Size

Front Wheel Size (in) - 20 X 8

Rear Wheel Size (in) - 20 X 8

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 37.1

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13

Rear Brake Rotor Diam x Thickness (in) - 13

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 24.6

Front Head Room (in) - 39.9

Front Leg Room (in) - 40.3

Front Shoulder Room (in) - 58.5

Front Hip Room (in) - 57

Second Head Room (in) - 39.8

Second Leg Room (in) - 38.6

Second Shoulder Room (in) - 50.4

Second Hip Room (in) - 42.8

Third Head Room (in) - 37.8

Third Leg Room (in) - 31.5

Third Shoulder Room (in) - 50.4

Third Hip Room (in) - 42.8

Wheelbase (in) - 119.8

Length, Overall (in) - 201.2

Width, Max w/o mirrors (in) - 75.8

Height, Overall (in) - 70.9

Track Width, Front (in) - 63.9

Track Width, Rear (in) - 64.1

Min Ground Clearance (in) - 8.1

Liftover Height (in) - 32.2

Cargo Volume to Seat 1 (ft?) - 84.5

Cargo Volume to Seat 2 (ft?) - 47.7

Cargo Volume to Seat 3 (ft?) - 17.2

Seventh Gear Ratio (:1) - 0.84

Eighth Gear Ratio (:1) - 0.67

Model Group - Durango

Vehicle Segment - Large Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 3.6

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States MPV
