EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

REAR AXLE, 3.23 RATIO

LUXURY PREFERRED EQUIPMENT GROUP

WHEELS, 22" X 9" (55.9 CM X 22.9 CM) 12-SPOKE ALLOY WITH POLISHED FINISH

BLACK RAVEN

JET BLACK, LEATHER SEATING SURFACES

LPO, INTERIOR PROTECTION PACKAGE

LPO, POLISHED EXHAUST TIP

LICENSE PLATE BRACKET, FRONT, BLACK

ENTERTAINMENT SYSTEM, REAR SEAT

LPO, ALL-WEATHER FLOOR MATS, 1ST, 2ND AND 3RD ROW

LPO, ALL-WEATHER CARGO MAT

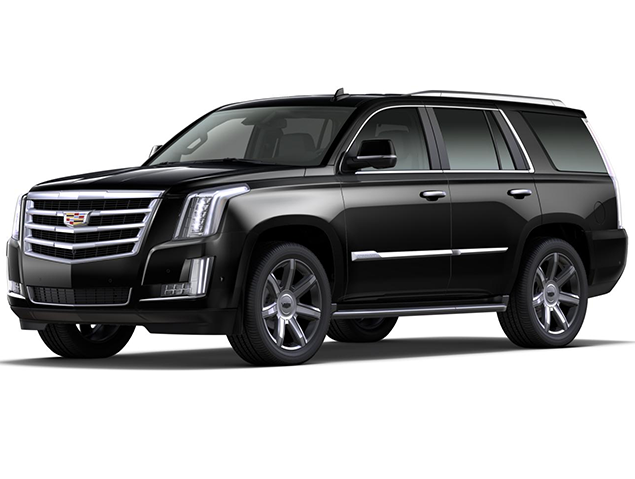

Vehicle Name - Cadillac Escalade

Body Style - Sport Utility Vehicle

Body Code -

Drivetrain - Four Wheel Drive

Passenger Capacity - 7

Gross Axle Wt Rating - Front (lbs) - 3550

Gross Axle Wt Rating - Rear (lbs) - 4200

Curb Weight - Front (lbs) - 2901

Curb Weight - Rear (lbs) - 2650

EPA Greenhouse Gas Score - - TBD -

Gross Vehicle Weight Rating Cap (lbs) - 7300

Fuel Economy Est-Combined (MPG) - 17

EPA Fuel Economy Est - City (MPG) - 14

EPA Fuel Economy Est - Hwy (MPG) - 21

Tons/yr of CO2 Emissions @ 15K mi/year - 10.3

Gross Combined Wt Rating (lbs) - 14000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 8100

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 810

Fifth Wheel Hitch - Max Trailer Wt. (lbs) -

Fifth Wheel Hitch - Max Tongue Wt. (lbs) -

Maximum Trailering Capacity (lbs) - 8100

Engine Order Code - L86

Engine Type - Gas V8

Displacement - 6.2L/376

Fuel System - Electronic Fuel Injection

SAE Net Horsepower @ RPM - 420 @ 5600

SAE Net Torque @ RPM - 460 @ 4100

Trans Order Code - MF6

Trans Type - 10

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.69

Second Gear Ratio (:1) - 2.98

Third Gear Ratio (:1) - 2.14

Fourth Gear Ratio (:1) - 1.77

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.27

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Ninth Gear Ratio (:1) - 0.69

Tenth Gear Ratio (:1) - 0.63

Reverse Ratio (:1) - 4.86

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - N/A

Transfer Case Gear Ratio (:1), High - 1.00

Transfer Case Gear Ratio (:1), Low - 2.69

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 600

Cold Cranking Amps @ 0? F (2nd) -

Maximum Alternator Capacity (amps) - 170

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - 16.7

Engine Oil Cooler -

Frame Type - Ladder-type

Suspension Type - Front - Independent

Suspension Type - Rear - 5-Link

Spring Capacity - Front (lbs) - 3600

Spring Capacity - Rear (lbs) - 4200

Axle Type - Front - Independent

Axle Type - Rear - Solid Axle w/Five-Link Location

Axle Capacity - Front (lbs) - 3925

Axle Capacity - Rear (lbs) - 4200

Axle Ratio (:1) - Front - 3.23

Axle Ratio (:1) - Rear - 3.23

Shock Absorber Diameter - Front (mm) - 1.81

Shock Absorber Diameter - Rear (mm) - 1.81

Stabilizer Bar Diameter - Front (in) - 1.41

Stabilizer Bar Diameter - Rear (in) - 1.10

Front Tire Order Code - QST

Rear Tire Order Code - QST

Spare Tire Order Code - RC4

Front Tire Size - P285/45R22

Rear Tire Size - P285/45R22

Spare Tire Size - P265/70R17

Front Tire Capacity (lbs) - - TBD -

Rear Tire Capacity (lbs) - - TBD -

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - N/A

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - N/A

Front Wheel Size (in) - 22 x 9.0

Rear Wheel Size (in) - 22 x 9.0

Spare Wheel Size (in) - 17 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Pwr

Steering Ratio (:1), On Center - 17.3

Steering Ratio (:1), At Lock - 3.4

Turning Diameter - Curb to Curb (ft) - 39.0

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - - TBD -

Rear Brake Rotor Diam x Thickness (in) - - TBD -

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 26

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location -

Aux Fuel Tank Location -

Front Head Room (in) - 42.8

Front Leg Room (in) - 45.3

Front Shoulder Room (in) - 64.9

Front Hip Room (in) - 60.9

Second Head Room (in) - 38.7

Second Leg Room (in) - 39.0

Second Shoulder Room (in) - 64.4

Second Hip Room (in) - 60.2

Third Head Room (in) - 38.1

Third Leg Room (in) - 24.8

Third Shoulder Room (in) - 62.6

Third Hip Room (in) - 49.3

Wheelbase (in) - 116

Length, Overall (in) - 203.9

Width, Max w/o mirrors (in) - 80.5

Height, Overall (in) - 74.4

Overhang, Front (in) - N/A

Overhang, Rear w/bumper (in) - N/A

Ground to Top of Load Floor (in) - 32.1

Ground Clearance, Front (in) - 8.0

Ground Clearance, Rear (in) - 8.0

Rear Door Type - Liftgate

Rear Door Opening Height (in) - - TBD -

Rear Door Opening Width (in) - - TBD -

Side Door Type - Swing-out

Side Door Opening Height (in) - - TBD -

Side Door Opening Width (in) - - TBD -

Step Up Height - Front (in) - - TBD -

Step Up Height - Side (in) - 22.0

Cargo Area Length @ Floor to Console (in) - - TBD -

Cargo Area Length @ Floor to Seat 1 (in) - - TBD -

Cargo Area Length @ Floor to Seat 2 (in) - - TBD -

Cargo Area Length @ Floor to Seat 3 (in) - - TBD -

Cargo Area Length @ Floor to Seat 4 (in) -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - - TBD -

Cargo Box (Area) Height (in) - - TBD -

Cargo Volume to Seat 1 (ft?) - 94.2

Cargo Volume to Seat 2 (ft?) - 51.6

Cargo Volume to Seat 3 (ft?) - 15.2

Cargo Volume to Seat 4 (ft?) -

Model Group - Escalade

Vehicle Segment - Large Luxury Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 6.2

Engine Camshaft - OHV

Engine Block Type - aluminum

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - United States Cadillac MPV
