Stellar Black Metallic

Jet Black, Leather Seating Surfaces With Mini-Perforated Inserts (With Linear Galaxy High-Gloss Wood Trim.)

EMISSIONS, COLORADO, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, MINNESOTA, NEVADA, NEW JERSEY, NEW MEXICO, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

ENGINE, 3.6L V6, DI, VVT, WITH AUTOMATIC STOP/START (310 hp [231 kW] @ 6600 rpm, 271 lb-ft of torque [366 N-m] @ 5000 rpm)

TRANSMISSION, 9-SPEED AUTOMATIC

AXLE, 3.49 RATIO

PREMIUM LUXURY PREFERRED EQUIPMENT GROUP includes standard equipment

DRIVER ASSIST PACKAGE includes (KSG) Adaptive Cruise Control, (AX7) Automatic Seat Belt Tightening, (UGN) Enhanced Automatic Emergency Braking and (UVZ) Reverse Automatic Braking

LPO, FLOOR LINER PACKAGE includes (CAV) Integrated cargo liner, LPO and (RIA) Contoured floor liners, LPO.

COOLING SYSTEM, HEAVY-DUTY

SMART TOWING includes (CTT) Hitch Guidance, (PZ8) Hitch Guidance with Hitch View, hitch, hitch cover and 7-wire harness Includes (KW7) 170-amp alternator and (V08) heavy-duty cooling system.

HITCH GUIDANCE dynamic single line to aid in trailer alignment for hitching

HITCH GUIDANCE WITH HITCH VIEW

LPO, SPLASH GUARDS, MOLDED, BLACK, FRONT AND REAR

LICENSE PLATE BRACKET, FRONT

SEATS, VENTILATED DRIVER AND FRONT PASSENGER

SEATS, HEATED REAR OUTBOARD SEATING POSITIONS

LPO, CONTOURED FLOOR LINERS

ADAPTIVE CRUISE CONTROL

CLIMATE CONTROL, TRI-ZONE AUTOMATIC with individual climate settings for driver, front passenger and rear passengers. Includes (KEM) Air Ionizer, (KU9) Ventilated Seats and (KA6) Heated rear outboard seats. (Requires (Y66) Driver Assist Package.)

AIR IONIZER

LPO, INTEGRATED CARGO LINER

ENHANCED AUTOMATIC EMERGENCY BRAKING

REVERSE AUTOMATIC BRAKING

AUTOMATIC SAFETY BELT TIGHTENING

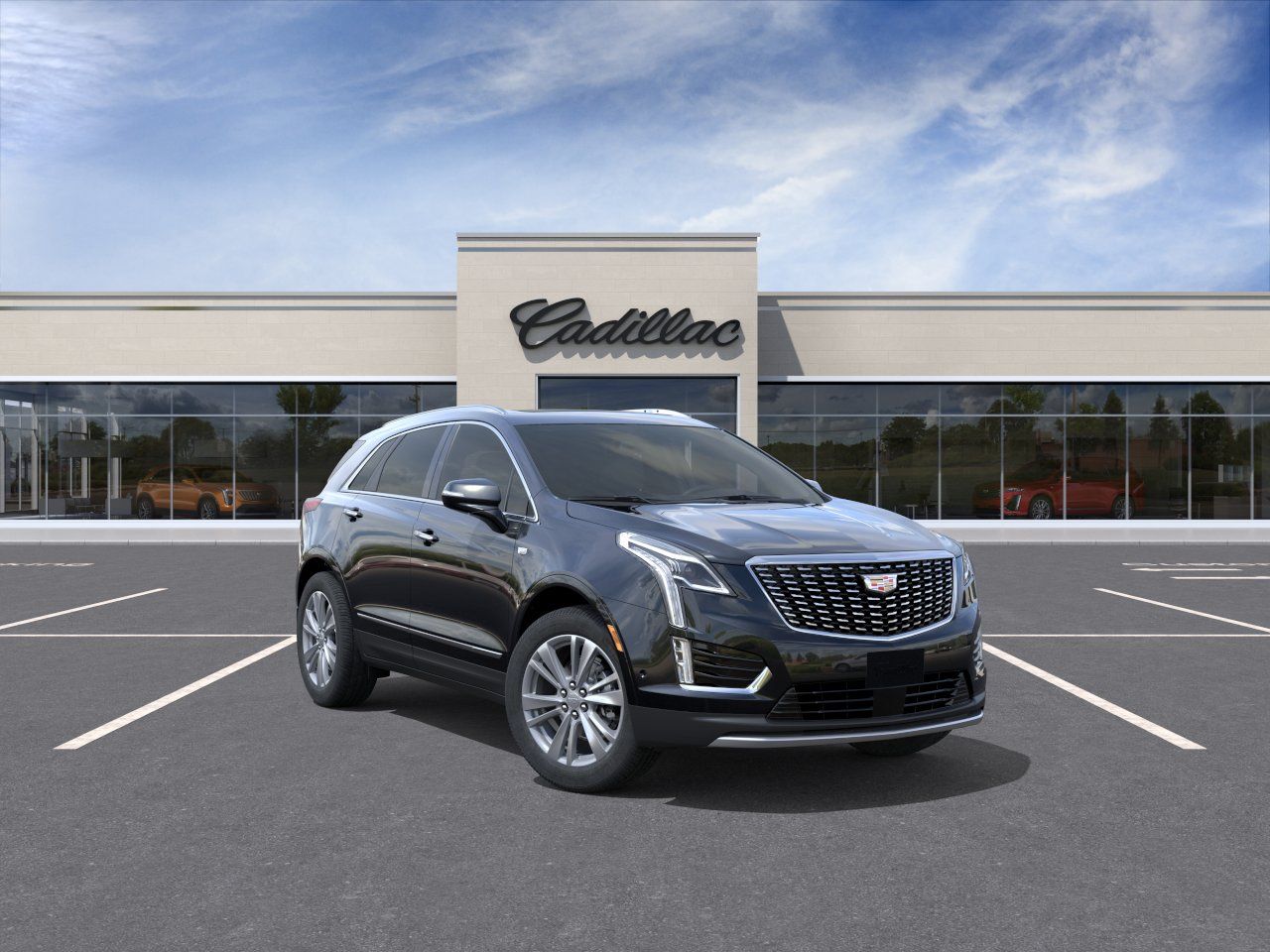

Vehicle Name - Cadillac XT5

Body Style - Sport Utility Vehicle

Drivetrain - All Wheel Drive

EPA Classification - Sport Utility Vehicles

Passenger Capacity - 5

Passenger Volume (ft?) - 104.5

Base Curb Weight (lbs) - 4286

Number of Passenger Doors - 4

Fuel Economy Est-Combined (MPG) - 21

EPA Fuel Economy Est - City (MPG) - 18

EPA Fuel Economy Est - Hwy (MPG) - 26

Tons/yr of CO2 Emissions @ 15K mi/year - 8.4

Dead Weight Hitch - Max Trailer Wt. (lbs) - 3500

Dead Weight Hitch - Max Tongue Wt. (lbs) - 350

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 3500

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 350

Maximum Trailering Capacity (lbs) - 3500

Engine Order Code - LGX

Engine Type - Gas V6

Displacement - 3.6L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 310 @ 6600

SAE Net Torque @ RPM - 271 @ 5000

Trans Order Code - M3W

Trans Type - 9

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - - TBD -

Second Gear Ratio (:1) - - TBD -

Third Gear Ratio (:1) - - TBD -

Fourth Gear Ratio (:1) - - TBD -

Fifth Gear Ratio (:1) - - TBD -

Sixth Gear Ratio (:1) - - TBD -

Seventh Gear Ratio (:1) - - TBD -

Eighth Gear Ratio (:1) - - TBD -

Ninth Gear Ratio (:1) - - TBD -

Reverse Ratio (:1) - - TBD -

Clutch Size (in) - N/A

Final Drive Axle Ratio (:1) - 3.49

Transfer Case Gear Ratio (:1), High -

Transfer Case Gear Ratio (:1), Low -

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Maximum Alternator Capacity (amps) - 155

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - Independent five-link

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) - w/Coil Springs

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - QNU

Rear Tire Order Code - QNU

Spare Tire Order Code - ZCD

Front Tire Size - P235/55R20

Rear Tire Size - P235/55R20

Spare Tire Size - Compact

Front Wheel Size (in) - 20 x - TBD -

Rear Wheel Size (in) - 20 x - TBD -

Spare Wheel Size (in) - 18 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), Overall - 16

Lock to Lock Turns (Steering) - - TBD -

Turning Diameter - Curb to Curb (ft) - 38.7

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.6 x - TBD -

Rear Brake Rotor Diam x Thickness (in) - 12.4 x - TBD -

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 22.0

Front Head Room (in) - 37.9

Front Leg Room (in) - 41.2

Front Shoulder Room (in) - 58.3

Front Hip Room (in) - 56.1

Second Head Room (in) - 36.6

Second Leg Room (in) - 39

Second Shoulder Room (in) - 56.3

Second Hip Room (in) - 54.8

Wheelbase (in) - 112

Length, Overall (in) - 189.6

Width, Max w/o mirrors (in) - 74.9

Height, Overall (in) - 66.1

Track Width, Front (in) - 64.8

Track Width, Rear (in) - 64.8

Min Ground Clearance (in) - - TBD -

Rear Door Opening Height (in) - - TBD -

Rear Door Opening Width (in) - - TBD -

Cargo Area Length @ Floor to Seat 1 (in) - - TBD -

Cargo Area Length @ Floor to Seat 2 (in) - - TBD -

Cargo Area Length @ Floor to Seat 3 (in) -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - - TBD -

Cargo Box (Area) Height (in) - - TBD -

Liftover Height (in) - - TBD -

Cargo Volume to Seat 1 (ft?) - 63

Cargo Volume to Seat 2 (ft?) - 30

Cargo Volume to Seat 3 (ft?) -

Model Group - XT5

Vehicle Segment - Intermediate Luxury Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 2.0

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - United States Cadillac MPV
