EQUIPMENT GROUP 100A

VELOCITY BLUE

BLACK ONYX/DARK SLATE, FRONT CLOTH BUCKET SEATS

FORD CO-PILOT360 1.0

50-STATE EMISSIONS SYSTEM

2K TRAILER HITCH RECEIVER W/4-PIN CONNECTOR

FRONT & REAR FLOOR LINERS W/O CARPET MATS

BED TIE DOWN LOCKING RAILS W/2 LOCKING BRACKETS

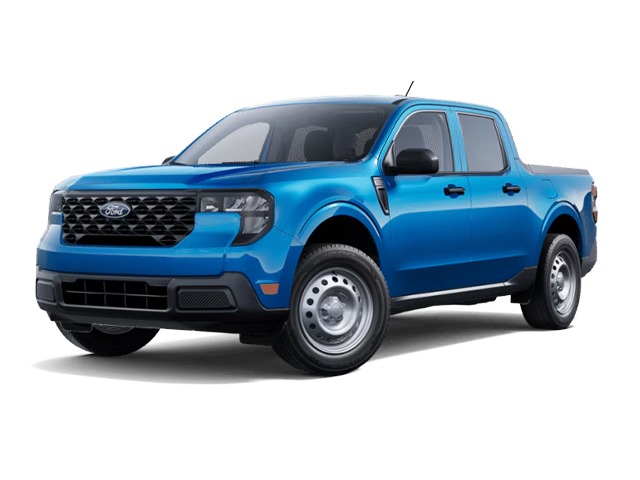

Vehicle Name - Ford Maverick

Body Style - SuperCrew

Body Code - T

Drivetrain - Front Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 3685

EPA Greenhouse Gas Score - 7.0

Gross Vehicle Weight Rating Cap (lbs) - 5230

Fuel Economy Est-Combined (MPG) - 38

EPA Fuel Economy Est - City (MPG) - 42

EPA Fuel Economy Est - Hwy (MPG) - 35

Gross Combined Wt Rating (lbs) - 6010

Dead Weight Hitch - Max Trailer Wt. (lbs) - 2000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 200

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 2000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 200

Maximum Trailering Capacity (lbs) - 2000

Engine Order Code - 993

Engine Type - Gas/Electric I-4

Displacement - 2.5 L/152

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 191 @ 5600

SAE Net Torque @ RPM - 155 @ 4000

Trans Order Code - 44E

Trans Type - 1

Trans Description Cont. - CVT w/OD

Trans Description Cont. Again -

Trans PTO Access - No

Transfer Case Model - None

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 390

Cold Cranking Amps @ 0? F (2nd) - 390

Tons/yr of CO2 Emissions @ 15K mi/year - 4.7

Maximum Alternator Capacity (amps) - 150

Engine Oil Cooler - None

Suspension Type - Front - Strut

Suspension Type - Rear - Torsion Beam

Axle Type - Front - Independent

Axle Type - Rear - Semi-Independent

Axle Ratio (:1) - Front - 2.91

Axle Ratio (:1) - Rear - 2.91

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - P225/65HR17

Rear Tire Size - P225/65HR17

Spare Tire Size - Compact

Front Wheel Size (in) - 17 X 7

Rear Wheel Size (in) - 17 X 7

Spare Wheel Size (in) - Compact

Front Wheel Material - Steel

Rear Wheel Material - Steel

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 40

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Drum - Rear (Yes or ) -

Fuel Tank Capacity, Approx (gal) - 13.8

Front Head Room (in) - 40.3

Front Leg Room (in) - 42.8

Front Shoulder Room (in) - 57.3

Front Hip Room (in) - 55.4

Second Head Room (in) - 39.6

Second Leg Room (in) - 35.9

Second Shoulder Room (in) - 55.6

Second Hip Room (in) - 54.1

Wheelbase (in) - 121.1

Length, Overall (in) - 199.7

Width, Max w/o mirrors (in) - 72.6

Height, Overall (in) - 68.7

Ground to Top of Load Floor (in) - 30.1

Ground Clearance, Front (in) - 8.3

Ground Clearance, Rear (in) - 8.3

Cargo Box Length @ Floor (in) - 54.4

Cargo Box Width @ Top, Rear (in) - 53.3

Cargo Box Width @ Floor (in) - 53.3

Cargo Box Width @ Wheelhousings (in) - 42.6

Cargo Box (Area) Height (in) - 20.3

Tailgate Width (in) - 49.8

Cargo Volume (ft?) - 33.3

Gross Traction Battery Capacity (kWh) - 1.1

Model Group - Maverick

Vehicle Segment - Small Pick-up

Vehicle Type - SuperCrew

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 2.5

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - Mexico Ford Truck (Completed Vehicle)
