Cypress Gray

Jet Black, Perforated Leather-Appointed Front Outboard Seat Trim

EMISSIONS, COLORADO, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, MINNESOTA, NEVADA, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT, VIRGINIA AND WASHINGTON STATE REQUIREMENTS

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8 B20-Diesel compatible, (470 hp [350.5 kW] @ 2800 rpm, 975 lb-ft of torque [1322 Nm] @ 1600 rpm)

TRANSMISSION, ALLISON 10-SPEED AUTOMATIC

GVWR, 11,300 LBS. (5126 KG)

REAR AXLE, 3.42 RATIO

LTZ PREFERRED EQUIPMENT GROUP includes standard equipment

WHEELS, 20" (50.8 CM) HIGH GLOSS BLACK PAINTED WHEEL with Black center caps

TIRES, LT275/65R20 E 126/123 BF GOODRICH OFF-ROAD T/A KO3

SEATS, FRONT BUCKET with center console, for Crew Cab and Double Cab models

TRAIL BOSS PACKAGE Includes black grille bar with "Chevy Black Bow Tie", Black grille inserts, (SRI) 20" High gloss Black painted wheels, (VB5) High Gloss Black painted front bumper, (VT5) High Gloss Black painted rear bumper, (UGA) Red Tow Hooks, (QFG) LT275/65R20 BF Goodrich off-road tires, Black skid plate, Black badging, Black bowtie on horn pad, (DP6) High Gloss Black mirror caps, Black hood vent surround, and (CGN) Chevytec spray-on bedliner. Includes Black beltline moldings, (D75) Body-colored painted door handles.

TECHNOLOGY PACKAGE includes (DRZ) Rear Camera Mirror and (UV6) Multicolor 15" Diagonal Head-Up Display

LTZ CONVENIENCE PACKAGE includes (A50) bucket seats with (D07) center console, (KQV) heated and ventilated front seats, (QT6) power up/down tailgate, (UF2) bed LED cargo area lighting, (UBC) USB Ports, (UQA) Bose Premium Audio System and (K4C) Wireless Charging

SAFETY PACKAGE includes (UD5) Front and Rear Park Assist, (UKV) Trailer Side Blind Zone Alert, (UFG) Rear Cross Traffic Alert, (UV2) HD Surround Vision, (UVN) Bed View Camera and (TRG) Trailer Camera Provisions Includes (HS1) Safety Alert Seat.)

GOOSENECK/5TH WHEEL PREP PACKAGE Hitch platform to accept Gooseneck or 5th Wheel hitch. Includes hitch platform with tray to accept ball, stamped bed holes with removable caps installed and bed mounted 7-pin trailer harness (similar to UY2 harness). (Includes (CGN) Chevytec spray-on bedliner.)

LTZ CONVENIENCE PACKAGE II includes (A48) Rear sliding power window, (UG1) Universal Home Remote, (KA6) Rear heated seats and (KSG) Adaptive Cruise Control.

Z71 OFF-ROAD PACKAGE includes (Z71) Off-Road suspension with off-road tuned twin tube Rancho shocks, (JHD) Hill Descent Control and (NZZ) skid plates (transfer case and oil pan)

SNOW PLOW PREP/CAMPER PACKAGE includes (KW5) 220-amp alternator, includes increased front GAWR on Heavy Duty models, (NZZ) skid plates (transfer case and oil pan), pass through dash grommet hole and roof emergency light provisions.

ENGINE BLOCK HEATER

HILL DESCENT CONTROL

ALTERNATOR, 220 AMPS

SKID PLATES protect the oil pan, front axle and transfer case

RECOVERY HOOKS, FRONT, FRAME-MOUNTED, RED

EXHAUST BRAKE

SUNROOF, POWER

BUMPER, FRONT

BUMPER, REAR

ASSIST STEPS, POWER-RETRACTABLE, BLACK includes LED lighting

WINTER GRILLE COVER

LED CARGO AREA LIGHTING located in pickup bed, activated with switch on center switch bank or key fob

MIRROR CAPS, HIGH-GLOSS BLACK

CHEVYTEC SPRAY-ON BEDLINER Black (does not include spray-on liner on tailgate due to Black composite inner panel)

LICENSE PLATE KIT, FRONT

TAILGATE, MULTI-FLEX with six functional load/access features, NOTE: Auto release can be disabled if ball hitch is installed. See Owner's manual for details

DOOR HANDLES, BODY-COLOR

BOSE SOUND SYSTEM, PREMIUM 7-SPEAKER SYSTEM with Richbass woofer

SEATS, VENTILATED DRIVER AND FRONT PASSENGER

SEATS, HEATED SECOND ROW OUTBOARD SEATS

CENTER CONSOLE, FLOOR-MOUNTED with cup holders, cell phone storage, power cord management, hanging file folder capability

MULTICOLOR 15" DIAGONAL HEAD-UP DISPLAY

WINDOW, POWER, REAR SLIDING with rear defogger

UNIVERSAL HOME REMOTE

ADAPTIVE CRUISE CONTROL

WIRELESS CHARGING

USB PORTS, 2, CHARGE/DATA PORTS LOCATED INSIDE CENTER CONSOLE

REAR CAMERA MIRROR, INSIDE REARVIEW AUTO-DIMMING with full camera display

FRONT AND REAR PARK ASSIST, ULTRASONIC

HD SURROUND VISION

BED VIEW CAMERA camera in the CHMSL to show a view of the cargo bed, display located in infotainment screen, includes Two Trailer Camera Provisions

TRAILER CAMERA PROVISIONS and trailer viewing software

REAR CROSS TRAFFIC ALERT

TRAILER SIDE BLIND ZONE ALERT

SAFETY ALERT SEAT

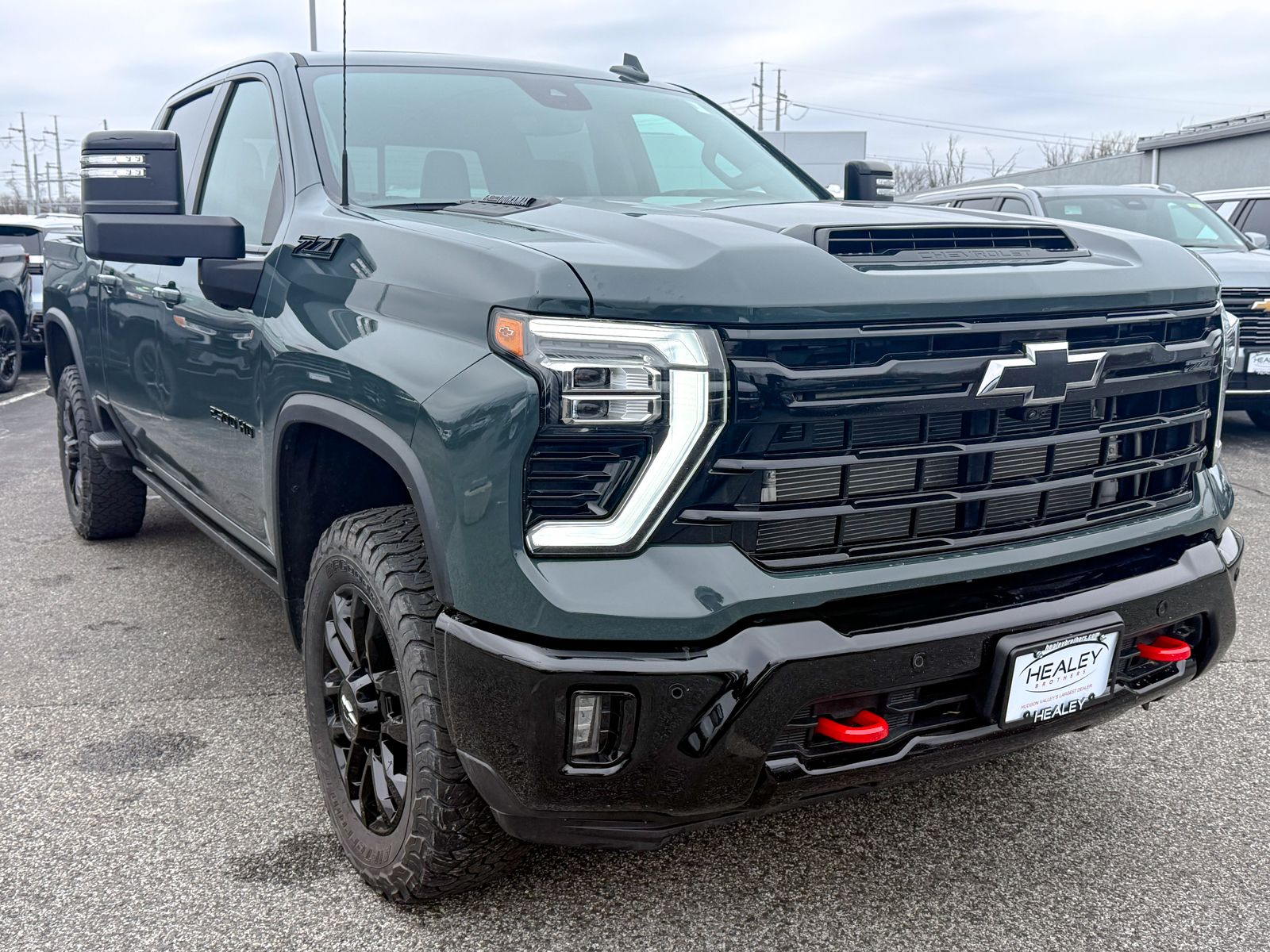

Vehicle Name - Chevrolet Silverado 2500HD

Body Style - Crew Cab Pickup

Body Code - E63

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Gross Axle Wt Rating - Front (lbs) - - TBD -

Gross Axle Wt Rating - Rear (lbs) - - TBD -

Curb Weight - Front (lbs) - 4013

Curb Weight - Rear (lbs) - 2812

Gross Vehicle Weight Rating Cap (lbs) - 11300

Fuel Economy Est-Combined (MPG) -

EPA Fuel Economy Est - City (MPG) -

EPA Fuel Economy Est - Hwy (MPG) -

Gross Combined Wt Rating (lbs) - 30000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 20000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 2000

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - 21600

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - 5400

Maximum Trailering Capacity (lbs) - 20000

Engine Order Code - L5P

Engine Type - Turbocharged Diesel V8

Displacement - 6.6L/- TBD -

Fuel System - - TBD -

SAE Net Horsepower @ RPM - 470 @ 2800

SAE Net Torque @ RPM - 975 @ 1600

Trans Order Code - MGM

Trans Type - 10

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.54

Second Gear Ratio (:1) - 2.87

Third Gear Ratio (:1) - 2.06

Fourth Gear Ratio (:1) - 1.72

Fifth Gear Ratio (:1) - 1.48

Sixth Gear Ratio (:1) - 1.26

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Ninth Gear Ratio (:1) - 0.69

Tenth Gear Ratio (:1) - 0.63

Reverse Ratio (:1) - 4.54

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - - TBD -

Transfer Case Gear Ratio (:1), High - - TBD -

Transfer Case Gear Ratio (:1), Low - - TBD -

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 730

Cold Cranking Amps @ 0? F (2nd) - 730

Tons/yr of CO2 Emissions @ 15K mi/year -

Maximum Alternator Capacity (amps) - 220

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - Yes

Frame Type - Hydroformed

Suspension Type - Front - Short/Long Arm

Suspension Type - Rear - Multi-Leaf Springs

Spring Capacity - Front (lbs) - - TBD -

Spring Capacity - Rear (lbs) - - TBD -

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - - TBD -

Axle Capacity - Rear (lbs) - - TBD -

Axle Ratio (:1) - Front -

Axle Ratio (:1) - Rear - 3.42

Shock Absorber Diameter - Front (mm) - 51

Shock Absorber Diameter - Rear (mm) - 51

Stabilizer Bar Diameter - Front (in) - 1.38

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - QFG

Rear Tire Order Code - QFG

Spare Tire Order Code - ZYG

Front Tire Size - LT275/65R20

Rear Tire Size - LT275/65R20

Spare Tire Size - LT275/70R18

Front Tire Capacity (lbs) - - TBD -

Rear Tire Capacity (lbs) - - TBD -

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - - TBD -

Front Wheel Size (in) - 22 x - TBD -

Rear Wheel Size (in) - 22 x - TBD -

Spare Wheel Size (in) - 18 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - - TBD -

Steering Type - Pwr

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 52.7

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 14.0 x 1.6

Rear Brake Rotor Diam x Thickness (in) - 14.1 x 1.3

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 36

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 43.03

Front Leg Room (in) - 44.53

Front Shoulder Room (in) - 66.02

Front Hip Room (in) - 61.18

Second Head Room (in) - 40.12

Second Leg Room (in) - 43.4

Second Shoulder Room (in) - 65.3

Second Hip Room (in) - 60.24

Wheelbase (in) - 158.94

Length, Overall (in) - 250.04

Width, Max w/o mirrors (in) - 81.85

Height, Overall (in) - 79.82

Overhang, Front (in) - - TBD -

Overhang, Rear w/o bumper (in) - - TBD -

Front Bumper to Back of Cab (in) - - TBD -

Cab to Axle (in) - 42.17

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) - - TBD -

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - - TBD -

Ground Clearance, Front (in) - 10.12

Ground Clearance, Rear (in) - 10.12

Cargo Box Length @ Floor (in) - 82.25

Cargo Box Width @ Top, Rear (in) - - TBD -

Cargo Box Width @ Floor (in) - 71.4

Cargo Box Width @ Wheelhousings (in) - 51.85

Cargo Box (Area) Height (in) - 21

Tailgate Width (in) - - TBD -

Cargo Volume (ft?) - 69.5

Ext'd Cab Cargo Volume (ft?) - - TBD -

Model Group - Silverado

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 6.6

Engine Camshaft - OHV

Engine Block Type - iron

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - United States Chevrolet Trucks
