EMISSIONS, COLORADO, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, MINNESOTA, NEVADA, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT, VIRGINIA AND WASHINGTON STATE REQUIREMENTS

LT PREFERRED EQUIPMENT GROUP

RADIANT RED TINTCOAT

LT JET BLACK, EVOTEX SEAT TRIM

DRIVER CONFIDENCE PACKAGE

ENGINE BLOCK HEATER

LICENSE PLATE FRONT MOUNTING PACKAGE

POWER OUTLET, 120-VOLT, LOCATED ON THE REAR OF CENTER CONSOLE

HD SURROUND VISION

TRAFFIC SIGN RECOGNITION

REAR PEDESTRIAN ALERT

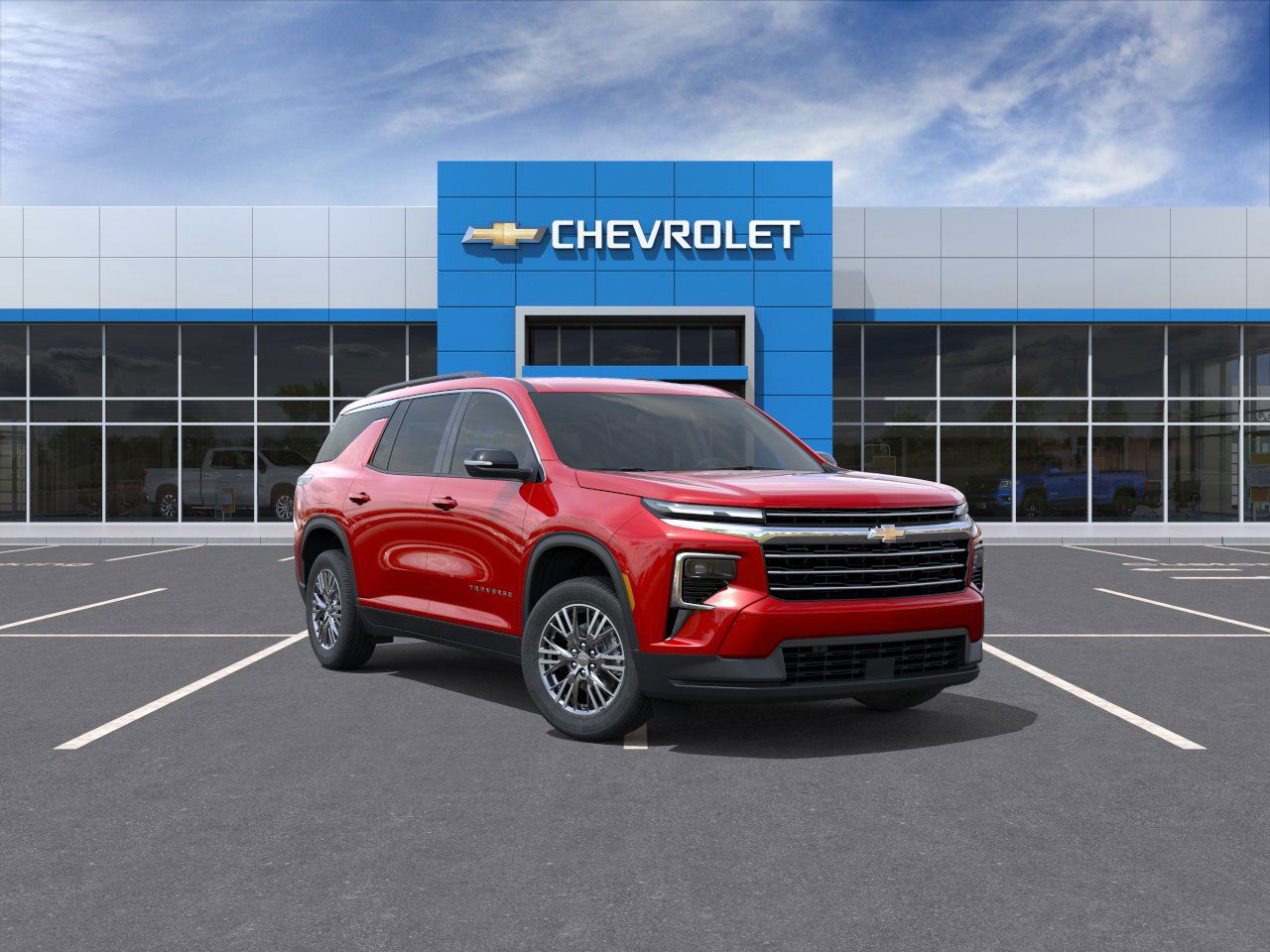

Vehicle Name - Chevrolet Traverse

Body Style - Sport Utility Vehicle

Drivetrain - Front Wheel Drive

EPA Classification - Standard Sport Utility Vehicle 2WD

Passenger Capacity - 7

Passenger Volume (ft?) - - TBD -

Base Curb Weight (lbs) - 4504

Tons/yr of CO2 Emissions @ 15K mi/year - - TBD -

Fuel Economy Est-Combined (MPG) - - TBD -

EPA Fuel Economy Est - City (MPG) - - TBD -

EPA Fuel Economy Est - Hwy (MPG) - - TBD -

Dead Weight Hitch - Max Trailer Wt. (lbs) - - TBD -

Dead Weight Hitch - Max Tongue Wt. (lbs) - - TBD -

Wt Distributing Hitch - Max Trailer Wt. (lbs) - - TBD -

Wt Distributing Hitch - Max Tongue Wt. (lbs) - - TBD -

Engine Order Code - LK0

Engine Type - Gas I4

Displacement - 2.5L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 328 @ 5500

SAE Net Torque @ RPM - 326 @ 3500

Trans Order Code - MF8

Trans Type - 8

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - - TBD -

Second Gear Ratio (:1) - - TBD -

Third Gear Ratio (:1) - - TBD -

Fourth Gear Ratio (:1) - - TBD -

Fifth Gear Ratio (:1) - - TBD -

Sixth Gear Ratio (:1) - - TBD -

Seventh Gear Ratio (:1) - - TBD -

Eighth Gear Ratio (:1) - - TBD -

Reverse Ratio (:1) - - TBD -

Clutch Size (in) -

Final Drive Axle Ratio (:1) - 3.49

Transfer Case Gear Ratio (:1), High -

Transfer Case Gear Ratio (:1), Low -

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Maximum Alternator Capacity (amps) - 220

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - 5-Link Independent

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - QO5

Rear Tire Order Code - QO5

Spare Tire Order Code - ZCD

Front Tire Size - 255/65R18

Rear Tire Size - 255/65R18

Spare Tire Size - T135/70R18

Front Wheel Size (in) - 22 x - TBD -

Rear Wheel Size (in) - 22 x - TBD -

Spare Wheel Size (in) - 18 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Variable Rack & Pinion

Steering Ratio (:1), Overall - - TBD -

Lock to Lock Turns (Steering) - - TBD -

Turning Diameter - Curb to Curb (ft) - - TBD -

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.6 x 1.2

Rear Brake Rotor Diam x Thickness (in) - 12.4 x 0.9

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 19.4

Front Head Room (in) - 40.67

Front Leg Room (in) - 44.29

Front Shoulder Room (in) - 62.28

Front Hip Room (in) - 58.7

Second Head Room (in) - 38.19

Second Leg Room (in) - 41.46

Second Shoulder Room (in) - 62.17

Second Hip Room (in) - 58.58

Third Head Room (in) - 38.54

Third Leg Room (in) - 32.13

Third Shoulder Room (in) - 57.72

Third Hip Room (in) - 48.62

Wheelbase (in) - 121

Length, Overall (in) - 204.49

Width, Max w/o mirrors (in) - 79.57

Height, Overall (in) - 69.57

Track Width, Front (in) - 67.28

Track Width, Rear (in) - 67.05

Min Ground Clearance (in) - 6.77

Rear Door Opening Height (in) - 32.4

Rear Door Opening Width (in) - 49.1

Cargo Area Length @ Floor to Seat 1 (in) - - TBD -

Cargo Area Length @ Floor to Seat 2 (in) - 55.47

Cargo Area Length @ Floor to Seat 3 (in) - - TBD -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - - TBD -

Cargo Box (Area) Height (in) - - TBD -

Liftover Height (in) - 30.71

Cargo Volume to Seat 1 (ft?) - 97.6

Cargo Volume to Seat 2 (ft?) - 56.6

Cargo Volume to Seat 3 (ft?) - 22.9

Model Group - Traverse

Vehicle Segment - Intermediate Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 2.5

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - United States Chevrolet Active MPV
