STERLING GRAY METALLIC

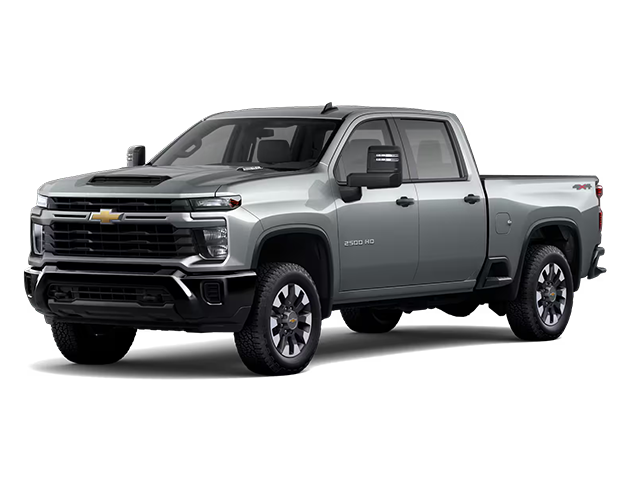

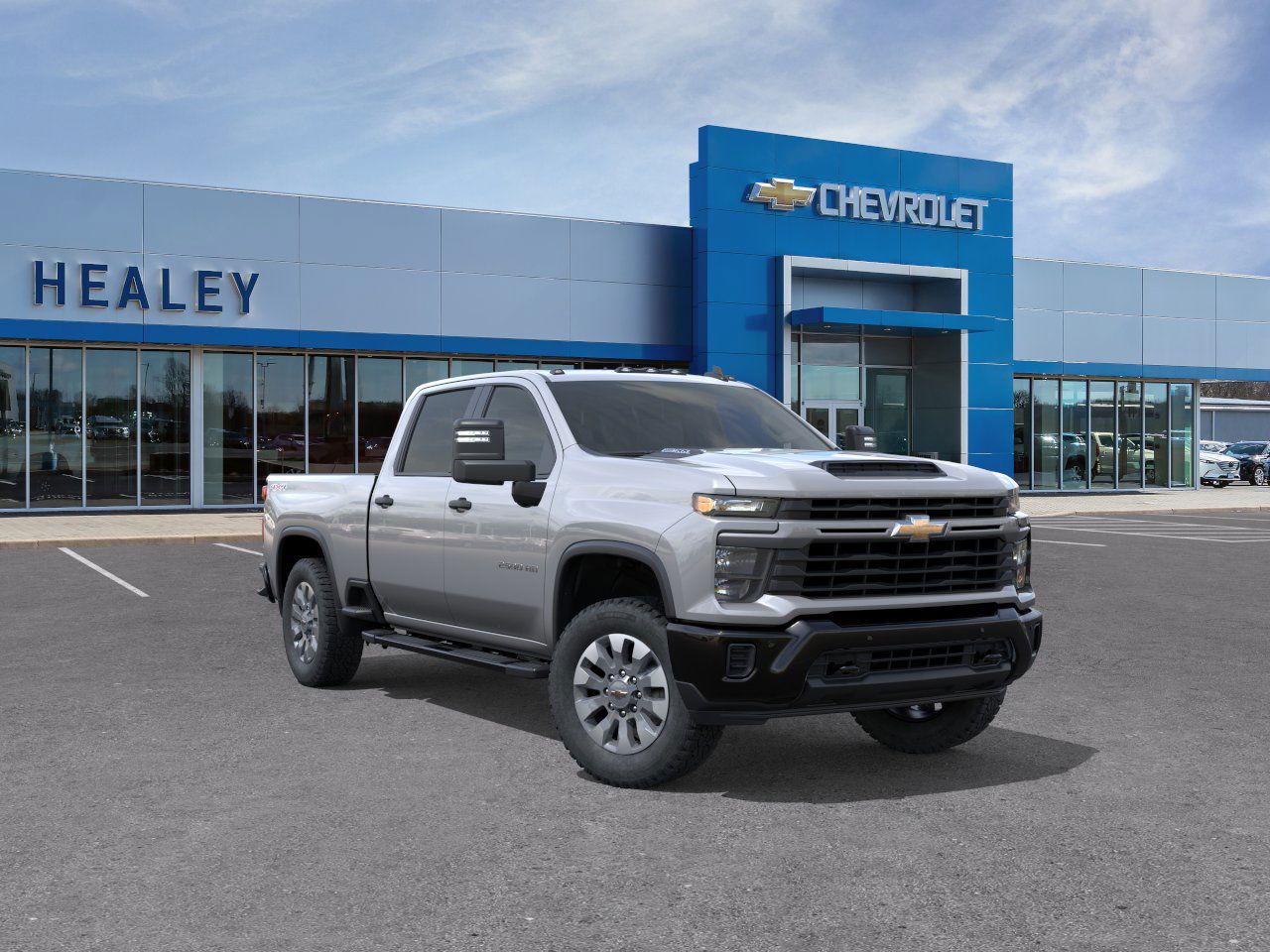

Vehicle Name - Chevrolet Silverado 2500HD

Body Style - Crew Cab Pickup

Body Code - E63

Drivetrain - Four Wheel Drive

Passenger Capacity - 6

Gross Axle Wt Rating - Front (lbs) - - TBD -

Gross Axle Wt Rating - Rear (lbs) - - TBD -

Curb Weight - Front (lbs) - 4013

Curb Weight - Rear (lbs) - 2812

Gross Vehicle Weight Rating Cap (lbs) - 10000

Fuel Economy Est-Combined (MPG) -

EPA Fuel Economy Est - City (MPG) -

EPA Fuel Economy Est - Hwy (MPG) -

Gross Combined Wt Rating (lbs) - 26000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 20000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 2000

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - 21600

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - 5400

Maximum Trailering Capacity (lbs) - 20000

Engine Order Code - L8T

Engine Type - Gas V8

Displacement - 6.6L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 401 @ 5200

SAE Net Torque @ RPM - 464 @ 4000

Trans Order Code - MGM

Trans Type - 10

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.54

Second Gear Ratio (:1) - 2.87

Third Gear Ratio (:1) - 2.06

Fourth Gear Ratio (:1) - 1.72

Fifth Gear Ratio (:1) - 1.48

Sixth Gear Ratio (:1) - 1.26

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Ninth Gear Ratio (:1) - 0.69

Tenth Gear Ratio (:1) - 0.63

Reverse Ratio (:1) - 4.54

Clutch Size (in) -

Trans Power Take Off - Yes

Trans PTO Access - - TBD -

Transfer Case Model - - TBD -

Transfer Case Gear Ratio (:1), High - - TBD -

Transfer Case Gear Ratio (:1), Low - - TBD -

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 720

Cold Cranking Amps @ 0? F (2nd) - 700

Tons/yr of CO2 Emissions @ 15K mi/year -

Maximum Alternator Capacity (amps) - 220

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - Yes

Frame Type - Hydroformed

Suspension Type - Front - Short/Long Arm

Suspension Type - Rear - Multi-Leaf Springs

Spring Capacity - Front (lbs) - - TBD -

Spring Capacity - Rear (lbs) - - TBD -

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - - TBD -

Axle Capacity - Rear (lbs) - - TBD -

Axle Ratio (:1) - Front -

Axle Ratio (:1) - Rear - 3.42

Shock Absorber Diameter - Front (mm) - 51

Shock Absorber Diameter - Rear (mm) - 51

Stabilizer Bar Diameter - Front (in) - 1.38

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - QF9

Rear Tire Order Code - QF9

Spare Tire Order Code - ZYG

Front Tire Size - LT275/65R20

Rear Tire Size - LT275/65R20

Spare Tire Size - LT275/70R18

Front Tire Capacity (lbs) - - TBD -

Rear Tire Capacity (lbs) - - TBD -

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - - TBD -

Front Wheel Size (in) - 20 x - TBD -

Rear Wheel Size (in) - 20 x - TBD -

Spare Wheel Size (in) - 18 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - - TBD -

Steering Type - Pwr

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 52.7

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 14.0 x 1.6

Rear Brake Rotor Diam x Thickness (in) - 14.1 x 1.3

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 36

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 43.03

Front Leg Room (in) - 44.53

Front Shoulder Room (in) - 66.02

Front Hip Room (in) - 61.18

Second Head Room (in) - 40.12

Second Leg Room (in) - 43.4

Second Shoulder Room (in) - 65.3

Second Hip Room (in) - 60.24

Wheelbase (in) - 159

Length, Overall (in) - 250.04

Width, Max w/o mirrors (in) - 81.85

Height, Overall (in) - 79.82

Overhang, Front (in) - - TBD -

Overhang, Rear w/o bumper (in) - - TBD -

Front Bumper to Back of Cab (in) - - TBD -

Cab to Axle (in) - 42.17

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) - - TBD -

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - - TBD -

Ground Clearance, Front (in) - 10.12

Ground Clearance, Rear (in) - 10.12

Cargo Box Length @ Floor (in) - 82.25

Cargo Box Width @ Top, Rear (in) - - TBD -

Cargo Box Width @ Floor (in) - 71.4

Cargo Box Width @ Wheelhousings (in) - 51.85

Cargo Box (Area) Height (in) - 21

Tailgate Width (in) - - TBD -

Cargo Volume (ft?) - 69.5

Ext'd Cab Cargo Volume (ft?) - - TBD -

Model Group - Silverado

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 6.6

Engine Camshaft - OHV

Engine Block Type - iron

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - Canada Chevrolet - Truck Truck
