Victory Red

Jet Black, Cloth Seat Trim

EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING includes aluminum block construction (355 hp [265 kW] @ 5600 rpm, 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm)

GVWR, 7200 LBS. (3266 KG)

REAR AXLE, 3.42 RATIO

2LT PREFERRED EQUIPMENT GROUP includes standard equipment

WHEELS, 18" X 8.5" (45.7 CM X 21.6 CM) BRIGHT-MACHINED ALUMINUM

TIRES, P265/65R18 ALL-TERRAIN, WHITE OUTLINED LETTER

PAINT, SOLID

ALL STAR EDITION includes (AG1) driver 10-way power seat adjuster with (AZ3) bench seat only, (CJ2) dual-zone climate control, (BTV) Remote Vehicle Starter system, (IO5) MyLink 8" Diagonal Color Touch Screen audio system, (UVC) Rear Vision Camera, (C49) rear-window defogger and (KI4) 110-volt power outlet (Includes (RD1) 18" x 8.5" bright-machined aluminum wheels. (N37) manual tilt and telescopic steering column included with (L83) 5.3L EcoTec3 V8 engine.)

E85 FLEXFUEL CAPABLE OF RUNNING ON UNLEADED OR UP TO 85% ETHANOL

COOLING, AUXILIARY EXTERNAL TRANSMISSION OIL COOLER

TRAILER BRAKE CONTROLLER, INTEGRATED

LED LIGHTING, CARGO BOX with switch on center switch bank

LICENSE PLATE KIT, FRONT

REMOTE VEHICLE STARTER SYSTEM Includes (UTJ) Theft-deterrent system.)

THEFT-DETERRENT SYSTEM, UNAUTHORIZED ENTRY

AIR CONDITIONING, DUAL-ZONE AUTOMATIC CLIMATE CONTROL

DEFOGGER, REAR-WINDOW ELECTRIC

POWER OUTLET, 110-VOLT AC

REAR VISION CAMERA WITH DYNAMIC GUIDE LINES

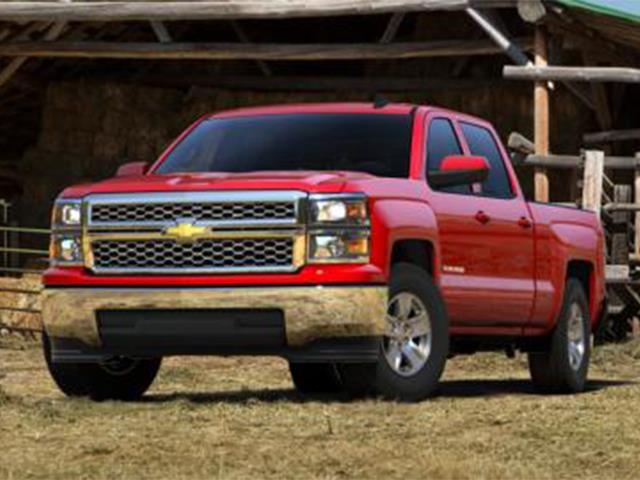

Vehicle Name - Chevrolet Silverado 1500

Body Style - Crew Cab Pickup

Body Code - E63

Drivetrain - Four Wheel Drive

Passenger Capacity - 6

Gross Axle Wt Rating - Front (lbs) - 3950

Gross Axle Wt Rating - Rear (lbs) - 3950

Curb Weight - Front (lbs) - - TBD -

Curb Weight - Rear (lbs) - - TBD -

Fuel Economy Est-Combined (MPG) - 18

EPA Fuel Economy Est - City (MPG) - 16

EPA Fuel Economy Est - Hwy (MPG) - 22

Tons/yr of CO2 Emissions @ 15K mi/year - 9.8

Gross Vehicle Weight Rating Cap (lbs) - 7200

Gross Combined Wt Rating (lbs) - 15000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 9200

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 920

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - - TBD -

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - - TBD -

Maximum Trailering Capacity (lbs) - 9200

Engine Type - Gas/Ethanol V8

Fuel System - Direct Injection

Engine Order Code - L83

Displacement - 5.3L/325

SAE Net Horsepower @ RPM - 355 @ 5600

SAE Net Torque @ RPM - 383 @ 4100

Trans Order Code - MYC

Trans Type - 6

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.03

Second Gear Ratio (:1) - 2.36

Third Gear Ratio (:1) - 1.53

Fourth Gear Ratio (:1) - 1.15

Fifth Gear Ratio (:1) - 0.85

Sixth Gear Ratio (:1) - 0.67

Reverse Ratio (:1) - 3.06

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - Magna MP3023/4

Transfer Case Gear Ratio (:1), High - 1.00

Transfer Case Gear Ratio (:1), Low - 2.69

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 720

Cold Cranking Amps @ 0? F (2nd) -

Maximum Alternator Capacity (amps) - 150

Maximum Alternator Watts -

Total Cooling System Capacity (qts) - 15.6

Engine Oil Cooler - Yes

Frame Type - Hydroformed

Suspension Type - Front - Independent

Suspension Type - Rear - 2-Stage Multi-Leaf

Spring Capacity - Front (lbs) - 3950

Spring Capacity - Rear (lbs) - 3950

Axle Type - Front - Independent Driving

Axle Type - Rear - Semi-Floating

Axle Capacity - Front (lbs) - 3950

Axle Capacity - Rear (lbs) - 3950

Axle Ratio (:1) - Front - 3.42

Axle Ratio (:1) - Rear - 3.42

Shock Absorber Diameter - Front (mm) - 46

Shock Absorber Diameter - Rear (mm) - 35

Stabilizer Bar Diameter - Front (in) - 1.35

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - RBW

Rear Tire Order Code - RBW

Spare Tire Order Code - 4JQ

Front Tire Size - P265/65R18

Rear Tire Size - P265/65R18

Spare Tire Size - LT265/70R17

Front Tire Capacity (lbs) - 3950

Rear Tire Capacity (lbs) - 3950

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - - TBD -

Front Wheel Size (in) - 18 x 8.5

Rear Wheel Size (in) - 18 x 8.5

Spare Wheel Size (in) - 17 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), On Center - 16.3

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 47.2

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.0 x 1.18

Rear Brake Rotor Diam x Thickness (in) - 13.6 x 0.79

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 26

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 42.80

Front Leg Room (in) - 45.27

Front Shoulder Room (in) - 66.03

Front Hip Room (in) - 60.73

Second Head Room (in) - 40.50

Second Leg Room (in) - 40.93

Second Shoulder Room (in) - 65.73

Second Hip Room (in) - 60.27

Wheelbase (in) - 143.5

Length, Overall w/o rear bumper (in) - 230.03

Width, Max w/o mirrors (in) - 80.0

Height, Overall (in) - 73.97

Overhang, Front (in) - - TBD -

Overhang, Rear w/o bumper (in) - - TBD -

Front Bumper to Back of Cab (in) - 150.90

Cab to Axle (in) - 31.97

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) - 34.3

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - - TBD -

Ground Clearance, Front (in) - 8.90

Ground Clearance, Rear (in) - 8.90

Cargo Box Length @ Floor (in) - 69.33

Cargo Box Width @ Top, Rear (in) - - TBD -

Cargo Box Width @ Floor (in) - 64.6

Cargo Box Width @ Wheelhousings (in) - 51.03

Cargo Box (Area) Height (in) - 21.10

Tailgate Width (in) - 62.2

Cargo Volume (ft?) - 53.4

Ext'd Cab Cargo Volume (ft?) - - TBD -

Model Group - Silverado

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 5.3

Engine Camshaft - OHV

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 2

Country of Origin - Mexico Chevrolet - Truck Active
