ENGINE: 3.0L I6 HURRICANE SO TWIN TURBO ESS

DIAMOND BLACK CRYSTAL PEARLCOAT

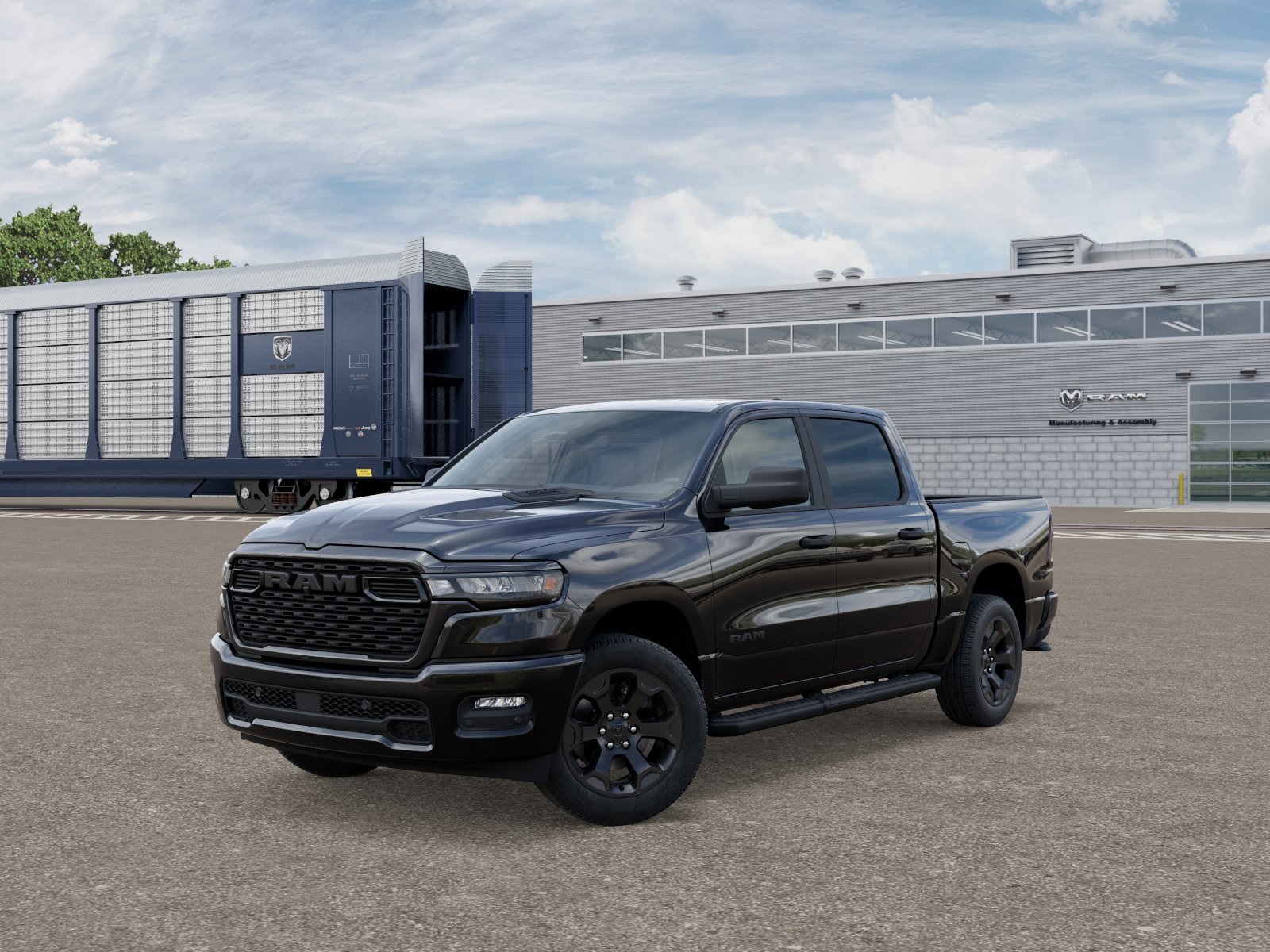

Vehicle Name - Ram 1500

Body Style - Crew Cab

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 5263

Gross Axle Wt Rating - Front (lbs) - 3900

Gross Axle Wt Rating - Rear (lbs) - 4100

Curb Weight - Front (lbs) - 2931

Curb Weight - Rear (lbs) - 2177

EPA Greenhouse Gas Score - 4.0

Gross Vehicle Weight Rating Cap (lbs) - 7100

Fuel Economy Est-Combined (MPG) - 20

EPA Fuel Economy Est - City (MPG) - 18

EPA Fuel Economy Est - Hwy (MPG) - 24

Gross Combined Wt Rating (lbs) - 12900

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 7340

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 734

Maximum Trailering Capacity (lbs) - 7340

Engine Order Code - EFH

Engine Type - Twin Turbo Regular Unleaded I-6

Displacement - 3.0 L/183

Fuel System - Gasoline Direct Injection

SAE Net Horsepower @ RPM - 420 @ 5200

SAE Net Torque @ RPM - 469 @ 3500

Trans Order Code - DFR

Trans Type - 8

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.71

Second Gear Ratio (:1) - 3.14

Third Gear Ratio (:1) - 2.11

Fourth Gear Ratio (:1) - 1.67

Fifth Gear Ratio (:1) - 1.28

Sixth Gear Ratio (:1) - 1.00

Reverse Ratio (:1) - 3.29

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 700

Cold Cranking Amps @ 0? F (2nd) - 700

Tons/yr of CO2 Emissions @ 15K mi/year - 8.8

Maximum Alternator Capacity (amps) - 230

Engine Oil Cooler - None

Suspension Type - Front - Short And Long Arm

Suspension Type - Rear - Multi-Link

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 3.55

Axle Ratio (:1) - Rear - 3.55

Front Tire Order Code - TXP

Rear Tire Order Code - TXP

Spare Tire Order Code - TBB

Front Tire Size - P275/55TR20

Rear Tire Size - P275/55TR20

Spare Tire Size - Full-Size

Front Wheel Size (in) - 20 X 9

Rear Wheel Size (in) - 20 X 9

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 46.2

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 14.9

Rear Brake Rotor Diam x Thickness (in) - 14.8

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 33

Front Head Room (in) - 40.9

Front Leg Room (in) - 40.9

Front Shoulder Room (in) - 66

Front Hip Room (in) - 63.4

Second Head Room (in) - 39.8

Second Leg Room (in) - 45.2

Second Shoulder Room (in) - 65.7

Second Hip Room (in) - 63.4

Wheelbase (in) - 144.5

Length, Overall (in) - 232.9

Width, Max w/o mirrors (in) - 82.1

Height, Overall (in) - 79.2

Cab to Axle (in) - 27.7

Cargo Box Length @ Floor (in) - 67.4

Cargo Box Width @ Top, Rear (in) - 66.4

Cargo Box Width @ Floor (in) - 66.4

Cargo Box Width @ Wheelhousings (in) - 51

Cargo Box (Area) Height (in) - 21.4

Tailgate Width (in) - 60

Cargo Volume (ft?) - 53.9

Seventh Gear Ratio (:1) - 0.84

Eighth Gear Ratio (:1) - 0.67

Gross Traction Battery Capacity (kWh) - 0.4

Model Group - Ram Pickups

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 3.0

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 4

Country of Origin - United States RAM, Jeep Truck
