Barcelona Red Metallic

Graphite

50 STATE EMISSIONS

SR5 UPGRADE PACKAGE

TRD OFF-ROAD PACKAGE

DECK RAIL SYSTEM

CHROME TUBE STEPS (TMS)

ALL WEATHER FLOOR LINER/DOOR SILL PROTECTORS (TMS)

BED MAT (TMS)

PREFERRED OWNERS PORTFOLIO (TMS)

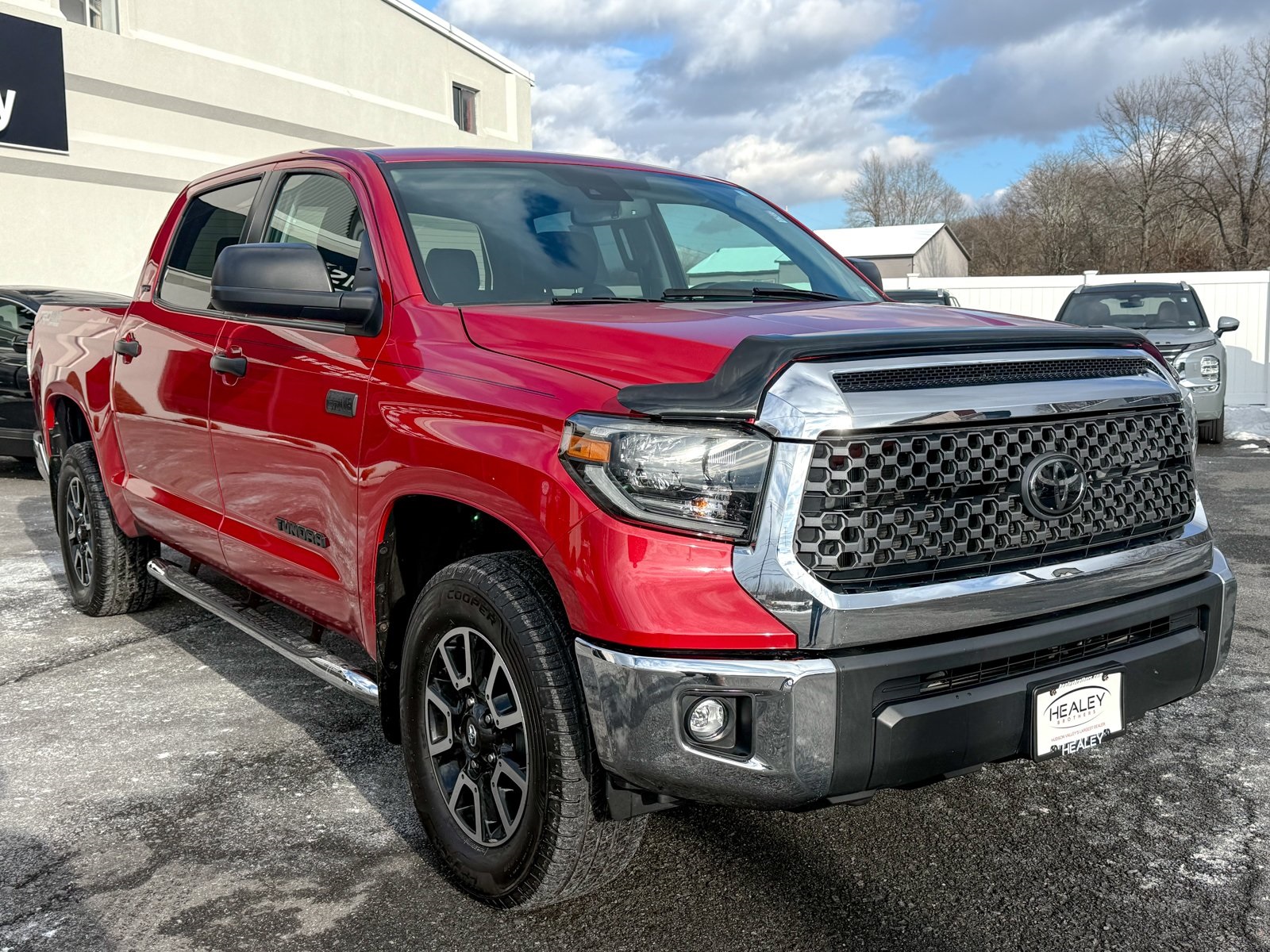

Vehicle Name - Toyota Tundra 4WD

Body Style - CrewMax

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 5640

Gross Axle Wt Rating - Front (lbs) - 4000

Gross Axle Wt Rating - Rear (lbs) - 4150

Gross Vehicle Weight Rating Cap (lbs) - 7200

Fuel Economy Est-Combined - 14

EPA Fuel Economy Est - City (MPG) - 13

EPA Fuel Economy Est - Hwy (MPG) - 17

Gross Combined Wt Rating (lbs) - 16000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 9800

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 980

Maximum Trailering Capacity - 9800

Engine Order Code -

Engine Type - Regular Unleaded V-8

Displacement - 5.7 L/346

Fuel System - Sequential MPI

SAE Net Horsepower @ RPM - 381 @ 5600

SAE Net Torque @ RPM - 401 @ 3600

Trans Order Code -

Trans Type - 6

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 3.33

Second Gear Ratio (:1) - 1.96

Third Gear Ratio (:1) - 1.35

Fourth Gear Ratio (:1) - 1.00

Fifth Gear Ratio (:1) - 0.73

Sixth Gear Ratio (:1) - 0.59

Reverse Ratio (:1) - 3.06

Trans PTO Access - No

Transfer Case Model - Electronic

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 710

Cold Cranking Amps @ 0? F (2nd) - 710

Tons/yr of CO2 Emissions @ 15K mi/year - 12.7

Maximum Alternator Capacity (amps) - 170

Engine Oil Cooler - Regular Duty

Suspension Type - Front - Double Wishbone

Suspension Type - Rear - Leaf

Axle Type - Front - Independent

Axle Type - Rear - Rigid Axle

Axle Ratio (:1) - Front - 4.30

Axle Ratio (:1) - Rear - 4.30

Front Tire Order Code -

Rear Tire Order Code -

Spare Tire Order Code -

Front Tire Size - P275/55TR20

Rear Tire Size - P275/55TR20

Spare Tire Size - Full-Size

Front Wheel Size (in) - 20 X 8

Rear Wheel Size (in) - 20 X 8

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 44

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.9

Rear Brake Rotor Diam x Thickness (in) - 13.6

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 38

Front Head Room (in) - 39.7

Front Leg Room (in) - 42.5

Front Shoulder Room (in) - 65.7

Front Hip Room (in) - 62.6

Second Head Room (in) - 38.9

Second Leg Room (in) - 42.3

Second Shoulder Room (in) - 65.5

Second Hip Room (in) - 60.4

Wheelbase (in) - 145.7

Length, Overall (in) - 228.9

Width, Max w/o mirrors (in) - 79.9

Height, Overall (in) - 76.2

Overhang, Rear w/o bumper (in) - 47.9

Cab to Axle (in) - 27

Ground to Top of Load Floor (in) - 33.7

Ground Clearance, Front (in) - 10.6

Ground Clearance, Rear (in) - 10.6

Cargo Box Length @ Floor (in) - 66.7

Cargo Box Width @ Top, Rear (in) - 66.4

Cargo Box Width @ Floor (in) - 66.4

Cargo Box Width @ Wheelhousings (in) - 50

Cargo Box (Area) Height (in) - 22.2

Model Group - Tundra

Vehicle Segment - Large Pick-up

Vehicle Type - CrewMax

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 5.7

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 8

Engine Valve Count - 4

Country of Origin - United States Toyota Trucks
