Lakeshore Blue Metallic

Jet Black

EMISSIONS, COLORADO, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, MINNESOTA, NEVADA, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT, VIRGINIA AND WASHINGTON STATE REQUIREMENTS

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8 B20-Diesel compatible, (470 hp [350.5 kW] @ 2800 rpm, 975 lb-ft of torque [1322 Nm] @ 1600 rpm)

TRANSMISSION, ALLISON 10-SPEED AUTOMATIC WITH INTEGRATED POWER TAKE-OFF (PTO)

REAR AXLE, 3.42 RATIO

LT PREFERRED EQUIPMENT GROUP includes standard equipment

AUDIO SYSTEM, CHEVROLET INFOTAINMENT 3 PREMIUM SYSTEM with Google built-in compatibility (select service plan required, terms and limitations apply) including navigation capability, 13.4" diagonal HD color touchscreen, includes multi-touch display, AM/FM stereo, Bluetooth streaming audio for music and most phones; featuring Wireless Apple CarPlay and Wireless Android Auto capability for compatible phones, advanced voice recognition, in-vehicle apps, personalized profiles for infotainment and vehicle settings

CONVENIENCE PACKAGE includes instrument panel, (CJ2) dual-zone automatic climate control, (A2X) 10-way power driver seat including power lumbar, (N37) manual tilt/telescoping steering column and (T3U) LED fog lamp

REMOTE START PACKAGE includes (BTV) Remote Start, (UTJ) Theft-deterrent system and (C49) rear-window defogger

HEAT PACKAGE includes (KA1) Heated driver and passenger seats and (KI3) Heated steering wheel

SNOW PLOW PREP PACKAGE includes (KW5) 220-amp alternator, includes increased front GAWR on Heavy Duty models, (NZZ) skid plates (transfer case and oil pan), pass through dash grommet hole and roof emergency light provisions. Contact GM Upfitter Integration at www.gmupfitter.com for plow installation details and assistance

ENGINE BLOCK HEATER

POWER TAKE-OFF Includes (MGU) 10-speed transmission.)

TRANSFER CASE, TWO-SPEED ACTIVE, ELECTRONIC AUTOTRAC with push button control

ALTERNATOR, 220 AMPS

SKID PLATES protect the oil pan, front axle and transfer case

EXHAUST BRAKE

LPO, ASSIST STEPS, CHROMED TUBULAR, 6" RECTANGULAR (dealer-installed)

WINTER GRILLE COVER

FOG LAMPS, FRONT, LED

SEATING, HEATED DRIVER AND FRONT OUTBOARD PASSENGER

SEAT ADJUSTER, DRIVER 10-WAY POWER INCLUDING LUMBAR

LPO, ALL-WEATHER FLOOR LINERS 1st row only on Regular Cab (includes Chevrolet Bowtie logo on front mats)

STEERING COLUMN, MANUAL TILT AND TELESCOPING

STEERING WHEEL, HEATED

REMOTE VEHICLE STARTER SYSTEM

UPFITTER SWITCH KIT, (5) Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories. Kit with all required parts will be shipped loose with the truck for installation by the dealer or upfitter at customer expense. Installation instructions and technical assistance available at www.gmupfitter.com.

THEFT-DETERRENT SYSTEM, UNAUTHORIZED ENTRY

USB PORTS, REAR, DUAL, CHARGE-ONLY

AIR CONDITIONING, DUAL-ZONE AUTOMATIC CLIMATE CONTROL

DEFOGGER, REAR-WINDOW ELECTRIC

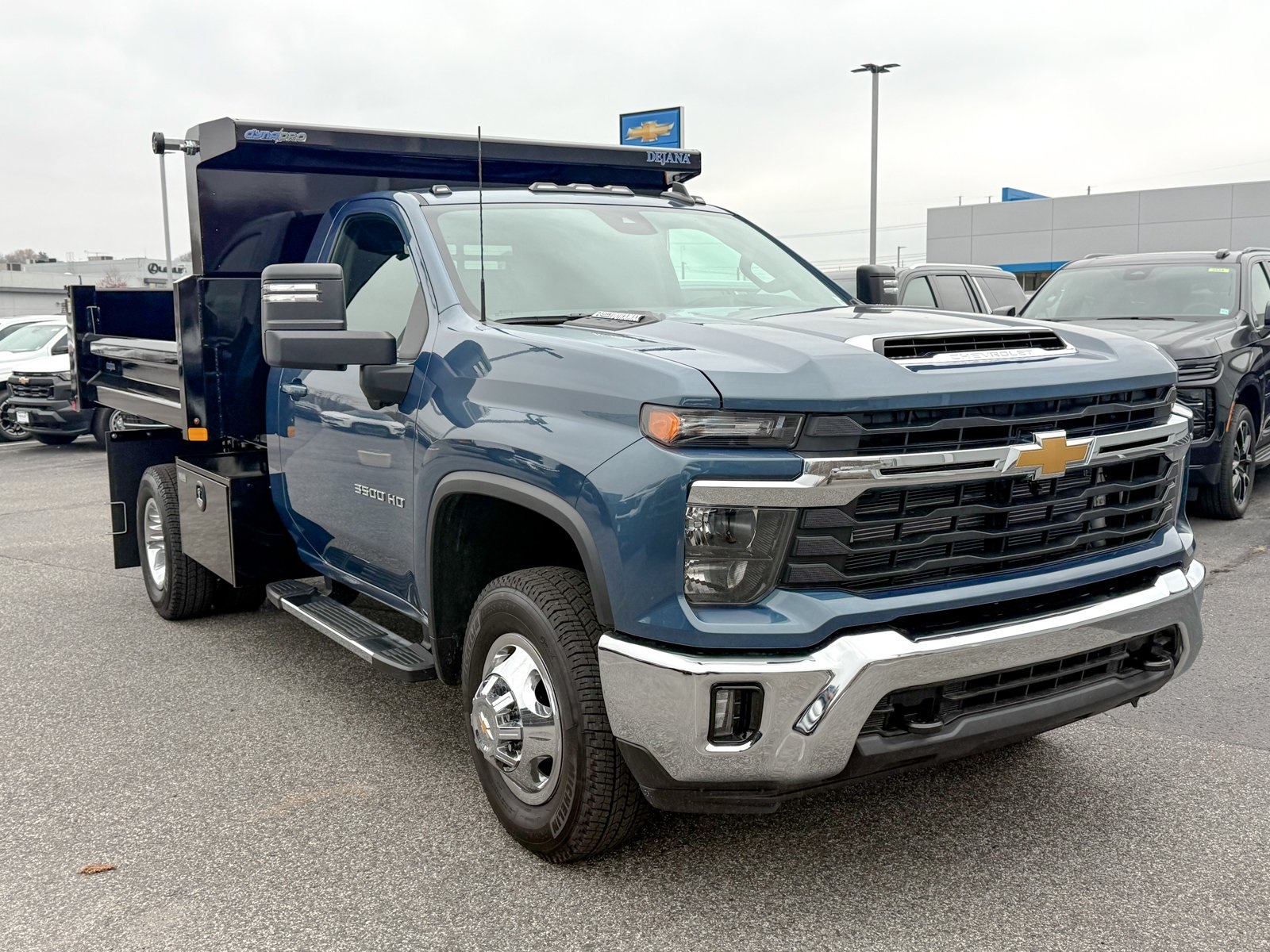

Vehicle Name - Chevrolet Silverado 3500HD CC

Body Style - Regular Cab Chassis Cab

Body Code - ZW9

Drivetrain - Four Wheel Drive

Passenger Capacity - 3

Gross Axle Wt Rating - Front (lbs) - 6000

Gross Axle Wt Rating - Rear (lbs) - 10400

Curb Weight - Front (lbs) - 4020

Curb Weight - Rear (lbs) - 2612

Gross Vehicle Weight Rating Cap (lbs) - 14000

Fuel Economy Est-Combined (MPG) -

EPA Fuel Economy Est - City (MPG) -

EPA Fuel Economy Est - Hwy (MPG) -

Tons/yr of CO2 Emissions @ 15K mi/year -

Gross Combined Wt Rating (lbs) - 40000

Dead Weight Hitch - Max Trailer Wt. (lbs) -

Dead Weight Hitch - Max Tongue Wt. (lbs) -

Wt Distributing Hitch - Max Trailer Wt. (lbs) -

Wt Distributing Hitch - Max Tongue Wt. (lbs) -

Fifth Wheel Hitch - Max Trailer Wt. (lbs) -

Fifth Wheel Hitch - Max Tongue Wt. (lbs) -

Engine Order Code - L5P

Engine Type - Turbocharged Diesel V8

Displacement - 6.6L/- TBD -

Fuel System - - TBD -

SAE Net Horsepower @ RPM - 470 @ 2800

SAE Net Torque @ RPM - 975 @ 1600

Trans Order Code - MGU

Trans Type - 10

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.54

Second Gear Ratio (:1) - 2.87

Third Gear Ratio (:1) - 2.06

Fourth Gear Ratio (:1) - 1.72

Fifth Gear Ratio (:1) - 1.48

Sixth Gear Ratio (:1) - 1.26

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Ninth Gear Ratio (:1) - 0.69

Tenth Gear Ratio (:1) - 0.63

Reverse Ratio (:1) - 4.54

Clutch Size (in) -

Trans Power Take Off - Yes

Trans PTO Access - - TBD -

Transfer Case Model - Magna MP3023/4

Transfer Case Gear Ratio (:1), High - 1.00

Transfer Case Gear Ratio (:1), Low - 2.69

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 730

Cold Cranking Amps @ 0? F (2nd) - 700

Maximum Alternator Capacity (amps) - 220

Maximum Alternator Watts - - TBD -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - Yes

Frame Type - Hydroformed Fully-Boxed

Suspension Type - Front - Short Long Arm Independent

Suspension Type - Rear - Semi-Elliptic Three-Stage Multi-Leaf Spring

Spring Capacity - Front (lbs) - - TBD -

Spring Capacity - Rear (lbs) - - TBD -

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - - TBD -

Axle Capacity - Rear (lbs) - - TBD -

Axle Ratio (:1) - Front - 3.42

Axle Ratio (:1) - Rear - 3.42

Shock Absorber Diameter - Front (mm) - 51

Shock Absorber Diameter - Rear (mm) - 51

Stabilizer Bar Diameter - Front (in) - 1.38

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - QZT

Rear Tire Order Code - QZT

Spare Tire Order Code -

Front Tire Size - LT235/80R17E

Rear Tire Size - LT235/80R17E

Spare Tire Size -

Front Tire Capacity (lbs) - - TBD -

Rear Tire Capacity (lbs) - - TBD -

Spare Tire Capacity (lbs) -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) -

Front Wheel Size (in) - 17 x - TBD -

Rear Wheel Size (in) - 17 x - TBD -

Spare Wheel Size (in) -

Front Wheel Material - Steel

Rear Wheel Material - Steel

Spare Wheel Material -

Steering Type - Pwr Recirculating Ball

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - 47.0

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 14 x 1.6

Rear Brake Rotor Diam x Thickness (in) - 14 x 1.6

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 40

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - Rear

Aux Fuel Tank Location -

Front Head Room (in) - 43.03

Front Leg Room (in) - 44.53

Front Shoulder Room (in) - 66.06

Front Hip Room (in) - 60.09

Wheelbase (in) - 146

Length, Overall (in) - 239.84

Width, Max w/o mirrors (in) - 80.84

Height, Overall (in) - 80.1

Overhang, Front (in) - - TBD -

Overhang, Rear w/o bumper (in) - - TBD -

Front Bumper to Back of Cab (in) - 126.55

Cab to Axle (in) - 60

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) -

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - 95.42

Ground Clearance, Front (in) - 8.15

Ground Clearance, Rear (in) - 8.15

Model Group - Silverado

Vehicle Segment - Chassis

Vehicle Type - Standard Cab

Body Cab Style - Standard Cab

Engine Displacement Units - 6.6

Engine Camshaft - OHV

Engine Block Type - iron

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - United States Active Incomplete Vehicle
