WHITE SANDS

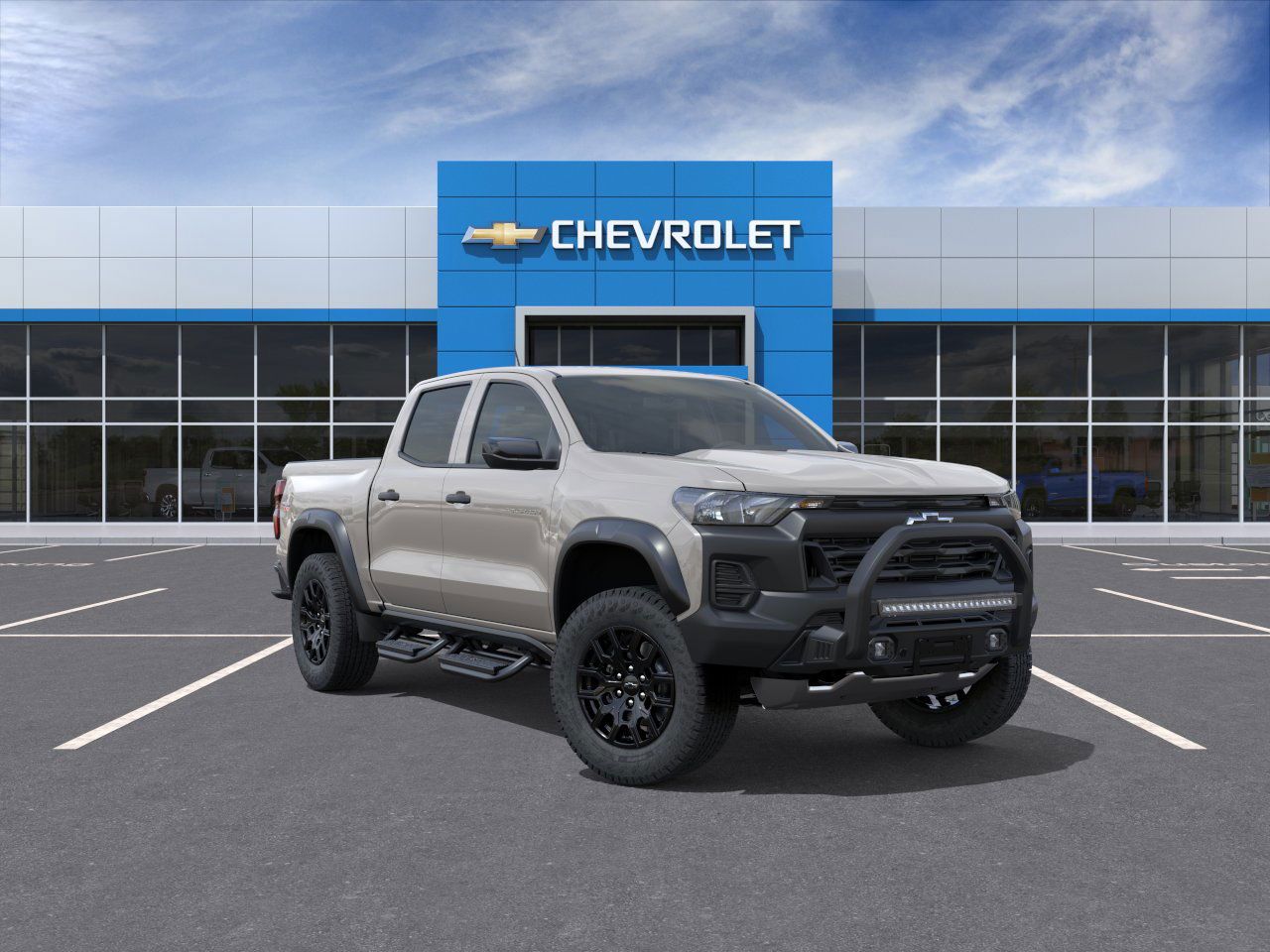

Vehicle Name - Chevrolet Colorado

Body Style - Crew Cab Pickup

Body Code - E63

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Number of Passenger Doors - 4

Gross Axle Wt Rating - Front (lbs) - 3500

Gross Axle Wt Rating - Rear (lbs) - 3600

Curb Weight - Front (lbs) - 2574

Curb Weight - Rear (lbs) - 1950

Fuel Economy Est-Combined (MPG) - 18 (2025)

EPA Fuel Economy Est - City (MPG) - 17 (2025)

EPA Fuel Economy Est - Hwy (MPG) - 20 (2025)

Tons/yr of CO2 Emissions @ 15K mi/year - 8.2 (2025)

Gross Vehicle Weight Rating Cap (lbs) - 6250

Gross Combined Wt Rating (lbs) - 13250

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 7700

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 770

Fifth Wheel Hitch - Max Trailer Wt. (lbs) -

Fifth Wheel Hitch - Max Tongue Wt. (lbs) -

Maximum Trailering Capacity (lbs) - 7700

Engine Order Code - L3B

Engine Type - Turbocharged Gas I4

Displacement - 2.7L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 310 @ 5600

SAE Net Torque @ RPM - 430 @ 3000

Trans Order Code - MFC

Trans Type - 8

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.56

Second Gear Ratio (:1) - 2.97

Third Gear Ratio (:1) - 2.08

Fourth Gear Ratio (:1) - 1.69

Fifth Gear Ratio (:1) - 1.27

Sixth Gear Ratio (:1) - 1.00

Seventh Gear Ratio (:1) - 0.85

Eighth Gear Ratio (:1) - 0.65

Reverse Ratio (:1) - 4.56

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model - Autotrac

Transfer Case Gear Ratio (:1), High - 1.00

Transfer Case Gear Ratio (:1), Low - - TBD -

Transfer Case Power Take Off - - TBD -

Cold Cranking Amps @ 0? F (Primary) - 800

Cold Cranking Amps @ 0? F (2nd) -

Maximum Alternator Capacity (amps) - 220

Maximum Alternator Watts - - TBD -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler -

Frame Type - Fully-boxed

Suspension Type - Front - Independent

Suspension Type - Rear - 2-Stage Multi-Leaf

Spring Capacity - Front (lbs) - 3500

Spring Capacity - Rear (lbs) - 3600

Axle Type - Front - - TBD -

Axle Type - Rear - - TBD -

Axle Capacity - Front (lbs) - 3500

Axle Capacity - Rear (lbs) - 3600

Axle Ratio (:1) - Front - 3.42

Axle Ratio (:1) - Rear - 3.42

Shock Absorber Diameter - Front (mm) -

Shock Absorber Diameter - Rear (mm) -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) - - TBD -

Front Tire Order Code - XD5

Rear Tire Order Code - XD5

Spare Tire Order Code - RMW

Front Tire Size - 275/50R22

Rear Tire Size - 275/50R22

Spare Tire Size - 275/60R20

Front Tire Capacity (lbs) - - TBD -

Rear Tire Capacity (lbs) - - TBD -

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - - TBD -

Front Wheel Size (in) - 20 x - TBD -

Rear Wheel Size (in) - 20 x - TBD -

Spare Wheel Size (in) - 20 x 9

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Aluminum

Steering Type - Electric Rack & Pinion

Steering Ratio (:1), On Center - - TBD -

Steering Ratio (:1), At Lock - - TBD -

Turning Diameter - Curb to Curb (ft) - - TBD -

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 13.4 x - TBD -

Rear Brake Rotor Diam x Thickness (in) - 13.3 x - TBD -

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 21.4

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - - TBD -

Aux Fuel Tank Location -

Front Head Room (in) - 40.29

Front Leg Room (in) - 45.17

Front Shoulder Room (in) - 57.4

Front Hip Room (in) - 54.71

Second Head Room (in) - 38.28

Second Leg Room (in) - 34.7

Second Shoulder Room (in) - 56.13

Second Hip Room (in) - 53.09

Wheelbase (in) - 131.36

Length, Overall (in) - 213.21

Length, Overall w/o rear bumper (in) -

Width, Max w/o mirrors (in) - 78.09 w/Mirrors Folded, 84.4 w/Mirrors

Height, Overall (in) - 79.83

Overhang, Front (in) - 34.51

Overhang, Rear w/o bumper (in) - 47.31

Front Bumper to Back of Cab (in) - - TBD -

Cab to Axle (in) - 23.3

Cab to End of Frame (in) - - TBD -

Ground to Top of Load Floor (in) - - TBD -

Ground to Top of Frame (in) - - TBD -

Frame Width, Rear (in) - - TBD -

Ground Clearance, Front (in) - 9.51

Ground Clearance, Rear (in) - 9.51

Cargo Box Length @ Floor (in) - 61.7

Cargo Box Width @ Top, Rear (in) - - TBD -

Cargo Box Width @ Floor (in) - 58.8

Cargo Box Width @ Wheelhousings (in) - 45.5

Cargo Box (Area) Height (in) - - TBD -

Tailgate Width (in) - - TBD -

Cargo Volume (ft?) - 41.9

Ext'd Cab Cargo Volume (ft?) - - TBD -

Model Group - Colorado

Vehicle Segment - Small Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 2.7

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - United States Chevrolet Trucks
