EMISSIONS, COLORADO, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, MINNESOTA, NEVADA, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT, VIRGINIA AND WASHINGTON STATE REQUIREMENTS

ENGINE, 6.6L V8

TRANSMISSION, 8-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

REAR AXLE, 3.42 RATIO

WORK VAN PREFERRED EQUIPMENT GROUP

PAINT, SOLID

SUMMIT WHITE

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM

MEDIUM PEWTER, CUSTOM CLOTH SEAT TRIM

DRIVER CONVENIENCE PACKAGE

DIFFERENTIAL, HEAVY-DUTY LOCKING REAR

ALTERNATOR, 220 AMPS

TRAILERING EQUIPMENT, HEAVY-DUTY

TRAILERING PROVISIONS, TRAILERING WIRE HARNESS ONLY

GLASS, FIXED REAR DOORS WINDOWS

GLASS, FIXED REAR SIDE DOOR WINDOWS

GLASS, REAR DOORS AND SIDE CARGO DOORS

WINDOW SECURITY BAR, REAR SIDE DOOR GLASS

HORN, DUAL-NOTE HIGH AND LOW

CONSOLE, ENGINE COVER WITH SWING-OUT STORAGE BIN

COMPASS, 8-POINT DIGITAL LOCATED IN THE DRIVER INFORMATION CENTER

REMOTE KEYLESS ENTRY

CRUISE CONTROL

THEFT ALARM NOTIFICATION

LIGHTING, AUXILIARY

FUEL, ADDITIONAL 3-GALLONS

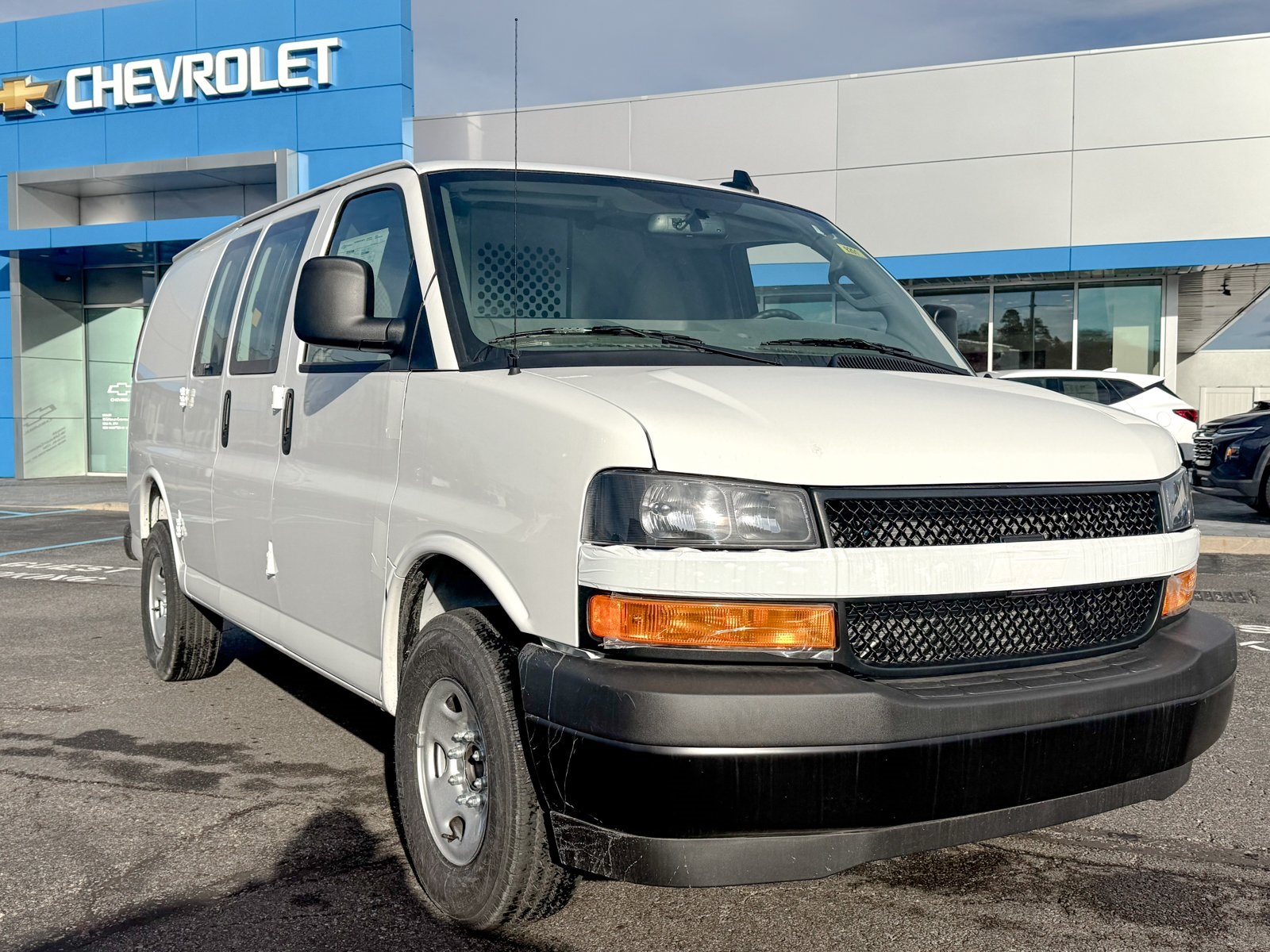

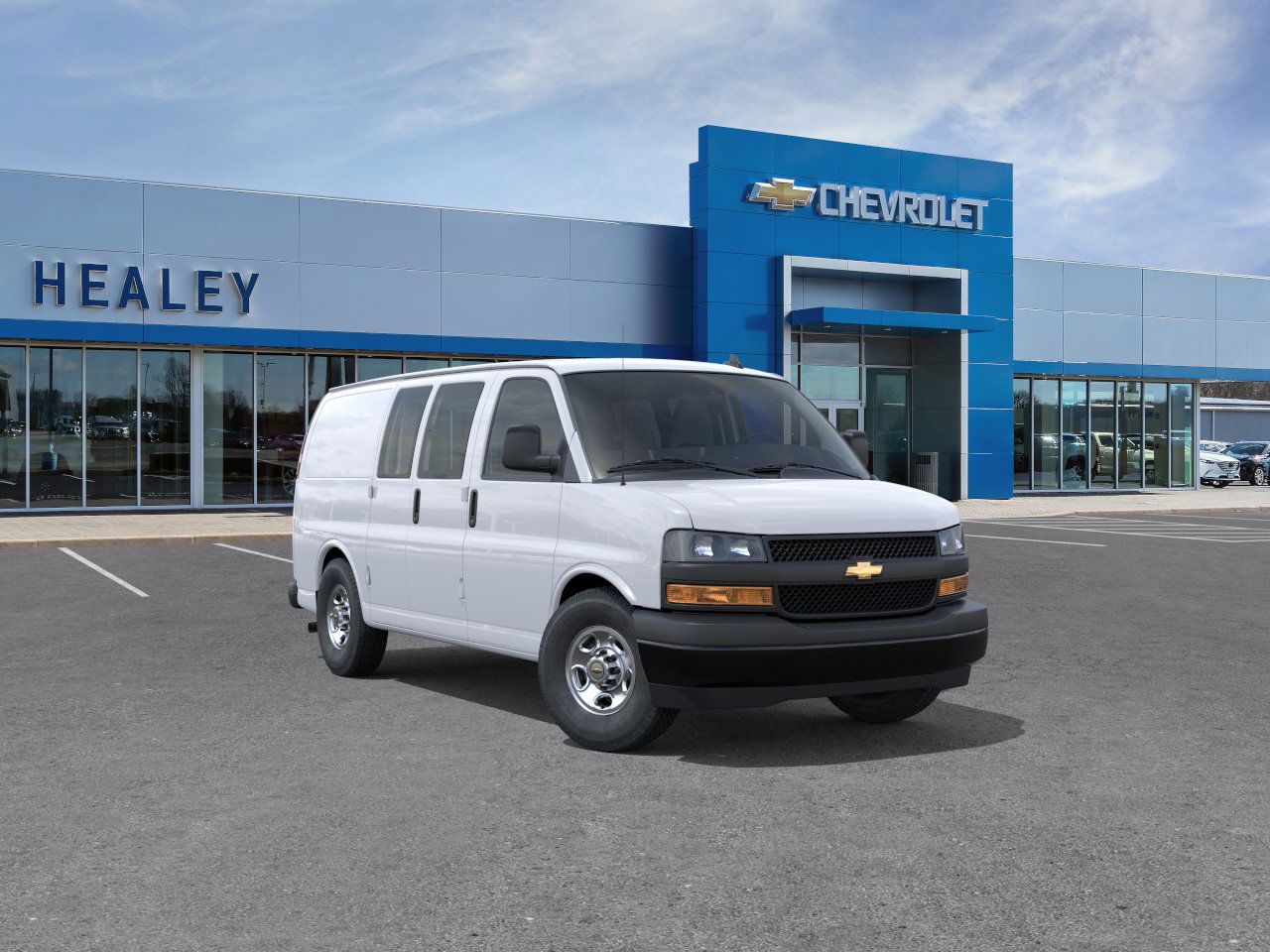

Vehicle Name - Chevrolet Express Cargo Van

Body Style - Cargo Van

Body Code - ZW9

Drivetrain - Rear Wheel Drive

Passenger Capacity - 2

Gross Axle Wt Rating - Front (lbs) - 4300

Gross Axle Wt Rating - Rear (lbs) - 6084

Curb Weight - Front (lbs) - 2892

Curb Weight - Rear (lbs) - 2216

Gross Vehicle Weight Rating Cap (lbs) - 9600

Fuel Economy Est-Combined -

EPA Fuel Economy Est - City (MPG) -

EPA Fuel Economy Est - Hwy (MPG) -

Tons/yr of CO2 Emissions @ 15K mi/year -

Gross Combined Wt Rating (lbs) - 16000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 10000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 1000

Fifth Wheel Hitch - Max Trailer Wt. (lbs) -

Fifth Wheel Hitch - Max Tongue Wt. (lbs) -

Maximum Trailering Capacity - 10000

Engine Order Code - L8T

Engine Type - Gas V8

Displacement - 6.6L/- TBD -

Fuel System - Electronic Fuel Injection

SAE Net Horsepower @ RPM - 401 @ 5200

SAE Net Torque @ RPM - 464 @ 4000

Trans Order Code - N8X

Trans Type - 8

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - - TBD -

Second Gear Ratio (:1) - - TBD -

Third Gear Ratio (:1) - - TBD -

Fourth Gear Ratio (:1) - - TBD -

Fifth Gear Ratio (:1) - - TBD -

Sixth Gear Ratio (:1) - - TBD -

Seventh Gear Ratio (:1) - - TBD -

Eighth Gear Ratio (:1) - - TBD -

Reverse Ratio (:1) - - TBD -

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model -

Transfer Case Gear Ratio (:1), High -

Transfer Case Gear Ratio (:1), Low -

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 770

Cold Cranking Amps @ 0? F (2nd) - 770

Maximum Alternator Capacity (amps) - 220

Maximum Alternator Watts - - TBD -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - Yes

Frame Type - Ladder

Suspension Type - Front - Coil Spring

Suspension Type - Rear - Hypoid Multi-Leaf

Spring Capacity - Front (lbs) - 4300

Spring Capacity - Rear (lbs) - 6084

Axle Type - Front - Independent

Axle Type - Rear - Full-Floating

Axle Capacity - Front (lbs) - 4300

Axle Capacity - Rear (lbs) - 6084

Axle Ratio (:1) - Front -

Axle Ratio (:1) - Rear - 3.42

Shock Absorber Diameter - Front (mm) - N/A

Shock Absorber Diameter - Rear (mm) - N/A

Stabilizer Bar Diameter - Front (in) - 1.38

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - XLP

Rear Tire Order Code - YLP

Spare Tire Order Code - ZLP

Front Tire Size - LT245/75R16E

Rear Tire Size - LT245/75R16E

Spare Tire Size - LT245/75R16E

Front Tire Capacity (lbs) - 2205

Rear Tire Capacity (lbs) - 3042

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - - TBD -

Front Wheel Size (in) - 16 x 6.5

Rear Wheel Size (in) - 16 x 6.5

Spare Wheel Size (in) - 16 x 6.5

Front Wheel Material - Steel

Rear Wheel Material - Steel

Spare Wheel Material - Steel

Steering Type - Pwr

Steering Ratio (:1), On Center - 17.2

Steering Ratio (:1), At Lock - 17.2

Turning Diameter - Curb to Curb (ft) - 49.2

Turning Diameter - Wall to Wall (ft) - N/A

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.8 x 1.5

Rear Brake Rotor Diam x Thickness (in) - 13.0 x 1.1

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 31

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - Mid-Frame

Aux Fuel Tank Location -

Front Head Room (in) - 40.85

Front Leg Room (in) - 41.35

Front Shoulder Room (in) - 68.85

Front Hip Room (in) - 65.47

Wheelbase (in) - 135

Length, Overall (in) - 224.05

Width, Max w/o mirrors (in) - 79.25

Height, Overall (in) - 84.75

Overhang, Front (in) - 39.7

Overhang, Rear w/bumper (in) - - TBD -

Ground to Top of Load Floor (in) - 30.3

Ground Clearance, Front (in) - 9.72

Ground Clearance, Rear (in) - 8.62

Rear Door Type - Dual Swing-Out

Rear Door Opening Height (in) - 49.4

Rear Door Opening Width (in) - 53.42

Side Door Type - Swing-Out

Side Door Opening Height (in) - - TBD -

Side Door Opening Width (in) - - TBD -

Step Up Height - Front (in) - 27.67

Step Up Height - Side (in) - 28.25

Cargo Area Length @ Floor to Console (in) - 154.7

Cargo Area Length @ Floor to Seat 1 (in) - 126.75

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - 52.47

Cargo Box (Area) Height (in) - 55.08

Cargo Volume (ft?) - 239.4

Model Group - Express

Vehicle Segment - Large Van

Vehicle Type - Cargo Van

Body Cab Style - Cargo Van

Engine Displacement Units - 4.3

Engine Camshaft - OHV

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 2

Country of Origin - United States Chevrolet Trucks
