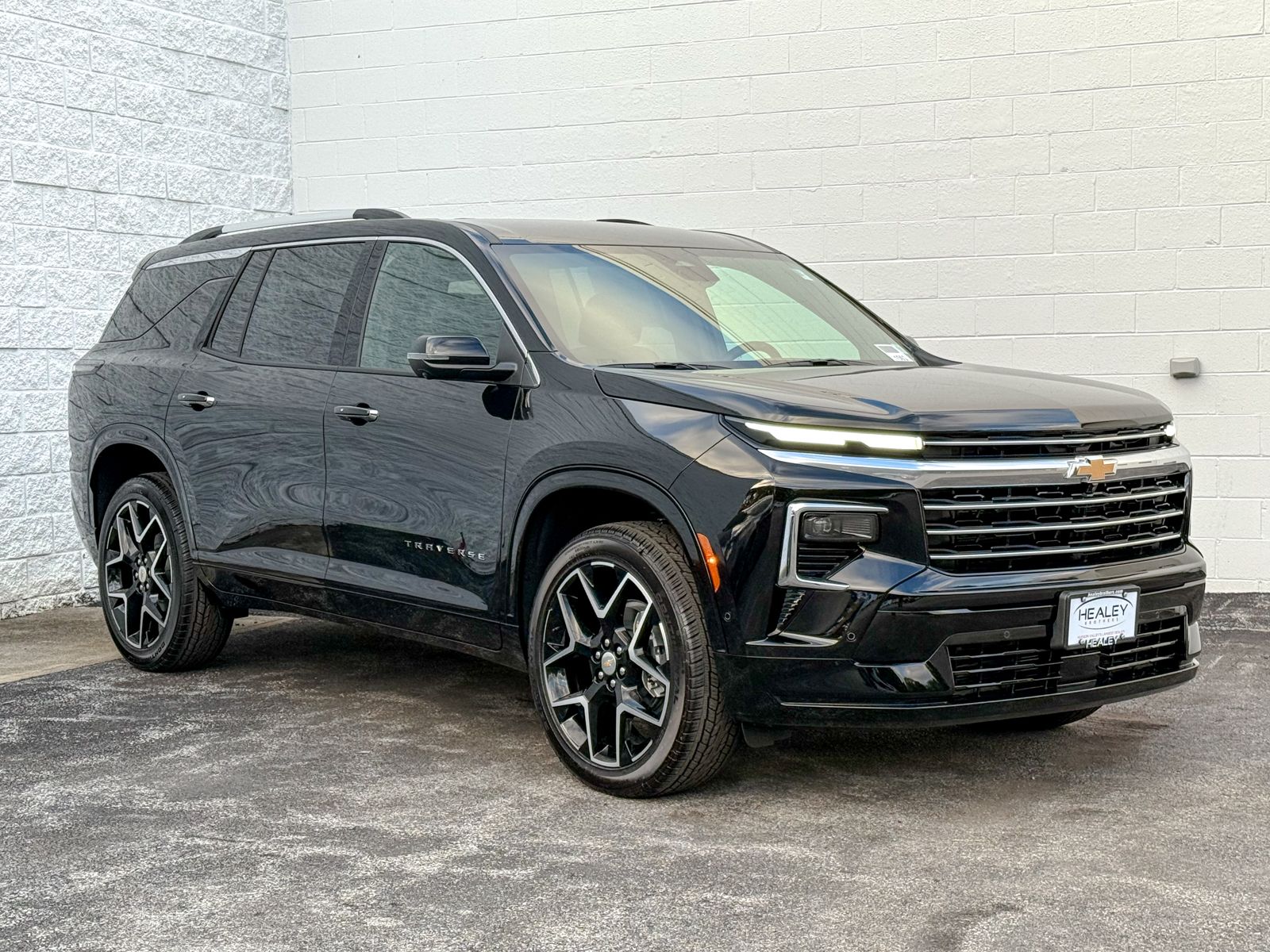

MOSAIC BLACK METALLIC

Vehicle Name - Chevrolet Traverse

Body Style - Sport Utility Vehicle

Drivetrain - All Wheel Drive

EPA Classification - Standard Sport Utility Vehicle 4WD

Passenger Capacity - 7

Passenger Volume (ft?) - - TBD -

Base Curb Weight (lbs) - 4793

Tons/yr of CO2 Emissions @ 15K mi/year - - TBD -

Fuel Economy Est-Combined (MPG) - 21 (Est)

EPA Fuel Economy Est - City (MPG) - 19 (Est)

EPA Fuel Economy Est - Hwy (MPG) - 24 (Est)

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 5000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 500

Engine Order Code - LK0

Engine Type - Gas I4

Displacement - 2.5L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 328 @ 5500

SAE Net Torque @ RPM - 326 @ 3500

Trans Order Code - MF8

Trans Type - 8

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - - TBD -

Second Gear Ratio (:1) - - TBD -

Third Gear Ratio (:1) - - TBD -

Fourth Gear Ratio (:1) - - TBD -

Fifth Gear Ratio (:1) - - TBD -

Sixth Gear Ratio (:1) - - TBD -

Seventh Gear Ratio (:1) - - TBD -

Eighth Gear Ratio (:1) - - TBD -

Reverse Ratio (:1) - - TBD -

Clutch Size (in) -

Final Drive Axle Ratio (:1) - 3.49

Transfer Case Gear Ratio (:1), High -

Transfer Case Gear Ratio (:1), Low -

Cold Cranking Amps @ 0? F (Primary) - - TBD -

Maximum Alternator Capacity (amps) - 220

Total Cooling System Capacity (qts) - - TBD -

Suspension Type - Front - MacPherson Strut

Suspension Type - Rear - 5-Link Independent

Suspension Type - Front (Cont.) -

Suspension Type - Rear (Cont.) -

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - - TBD -

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - QZR

Rear Tire Order Code - QZR

Spare Tire Order Code - ZCD

Front Tire Size - 275/45R22

Rear Tire Size - 275/45R22

Spare Tire Size - T135/70R18

Front Wheel Size (in) - 22 x - TBD -

Rear Wheel Size (in) - 22 x - TBD -

Spare Wheel Size (in) - 18 x - TBD -

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Electric Variable Rack & Pinion

Steering Ratio (:1), Overall - - TBD -

Lock to Lock Turns (Steering) - - TBD -

Turning Diameter - Curb to Curb (ft) - - TBD -

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.6 x 1.2

Rear Brake Rotor Diam x Thickness (in) - 12.4 x 0.9

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 21.7

Front Head Room (in) - 40.67

Front Leg Room (in) - 44.29

Front Shoulder Room (in) - 62.28

Front Hip Room (in) - 58.7

Second Head Room (in) - 38.19

Second Leg Room (in) - 41.46

Second Shoulder Room (in) - 62.17

Second Hip Room (in) - 58.58

Third Head Room (in) - 38.54

Third Leg Room (in) - 32.13

Third Shoulder Room (in) - 57.72

Third Hip Room (in) - 48.62

Wheelbase (in) - 121

Length, Overall (in) - 204.49

Width, Max w/o mirrors (in) - 79.57

Height, Overall (in) - 69.57

Track Width, Front (in) - 67.28

Track Width, Rear (in) - 67.05

Min Ground Clearance (in) - 6.77

Rear Door Opening Height (in) - 32.4

Rear Door Opening Width (in) - 49.1

Cargo Area Length @ Floor to Seat 1 (in) - - TBD -

Cargo Area Length @ Floor to Seat 2 (in) - 55.47

Cargo Area Length @ Floor to Seat 3 (in) - - TBD -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - - TBD -

Cargo Box (Area) Height (in) - - TBD -

Liftover Height (in) - 30.71

Cargo Volume to Seat 1 (ft?) - 97.6

Cargo Volume to Seat 2 (ft?) - 56.6

Cargo Volume to Seat 3 (ft?) - 22.9

Model Group - Traverse

Vehicle Segment - Intermediate Sport Utility

Vehicle Type - Sport Utility

Engine Displacement Units - 2.5

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - United States Chevrolet Active MPV
