ENGINE: DUAL EMOTOR - EXTENDED RANGE BATTERY

SPACE WHITE METALLIC

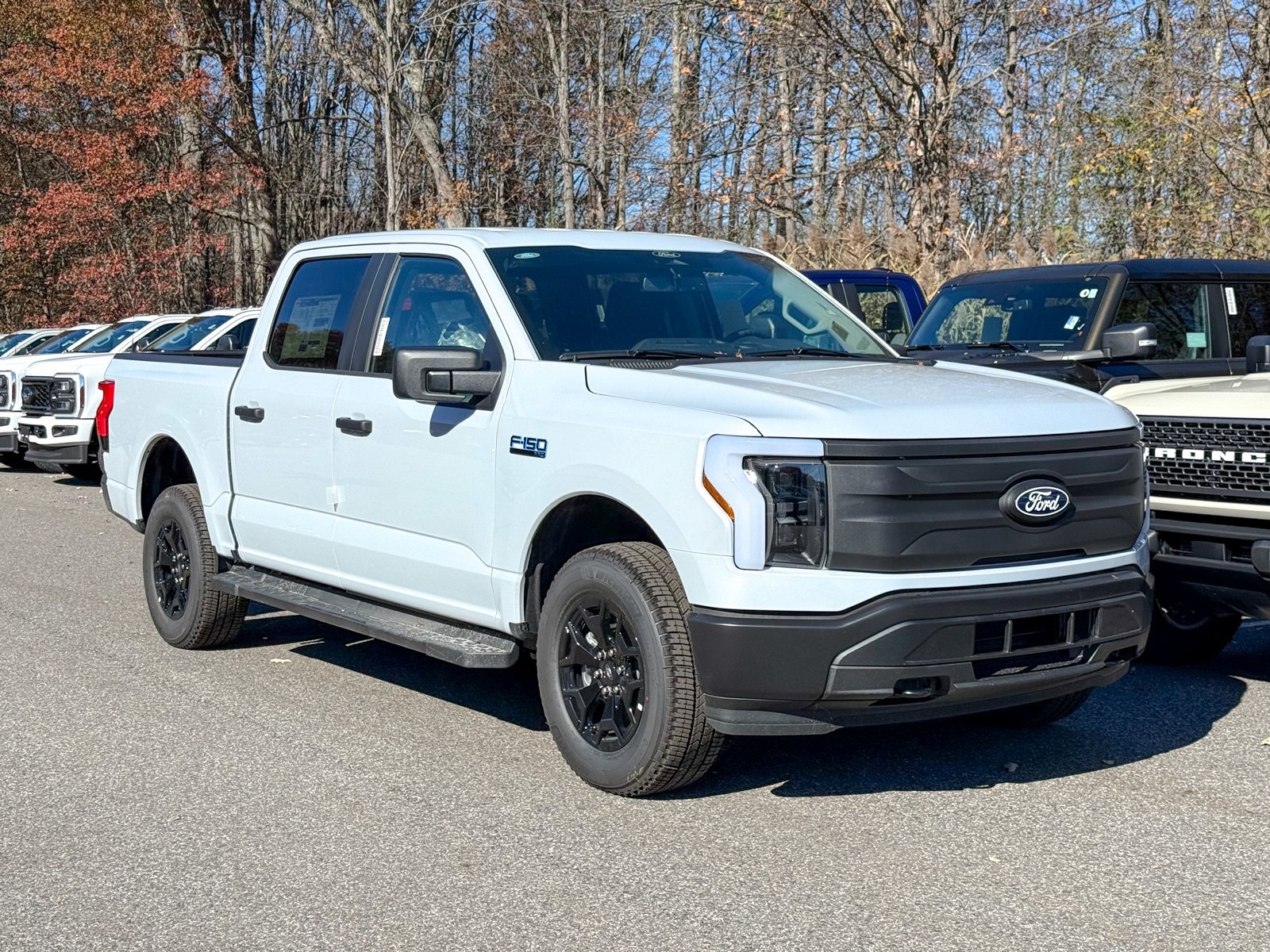

Vehicle Name - Ford F-150 Lightning

Body Style - SuperCrew Cab

Body Code - T

Drivetrain - All Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 6361

Gross Axle Wt Rating - Front (lbs) - 3940

Gross Axle Wt Rating - Rear (lbs) - 4950

Curb Weight - Front (lbs) - 3129

Curb Weight - Rear (lbs) - 2886

EPA Greenhouse Gas Score - 10.0 (Est)

Gross Vehicle Weight Rating Cap (lbs) - 8550

Fuel Economy Est-Combined (MPG) - - TBD -

EPA Fuel Economy Est - City (MPG) - - TBD -

EPA Fuel Economy Est - Hwy (MPG) - - TBD -

Gross Combined Wt Rating (lbs) - 11700

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 5100

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 510

Maximum Trailering Capacity (lbs) - 5100

Engine Order Code - 99U

Engine Type - Electric

SAE Net Horsepower @ RPM - 536

SAE Net Torque @ RPM - 775

Trans Order Code - 44L

Trans Type - 1

Trans Description Cont. - Automatic

Trans Description Cont. Again -

Trans PTO Access - No

Transfer Case Model - None

Transfer Case Power Take Off - No

Tons/yr of CO2 Emissions @ 15K mi/year - - TBD -

Engine Oil Cooler - None

Suspension Type - Front - Double Wishbone

Suspension Type - Rear - Trailing Arm

Spring Capacity - Front (lbs) - 3940

Spring Capacity - Rear (lbs) - 4950

Axle Type - Front - Independent

Axle Type - Rear - Independent

Axle Capacity - Front (lbs) - 3900

Axle Capacity - Rear (lbs) - 4150

Axle Ratio (:1) - Front - 9.61

Axle Ratio (:1) - Rear - 9.61

Front Tire Order Code - NONTR1

Rear Tire Order Code - NONTR1

Spare Tire Order Code - 60S

Front Tire Size - P275/60SR20

Rear Tire Size - P275/60SR20

Spare Tire Size - Full-Size

Front Tire Capacity (lbs) - 4050

Rear Tire Capacity (lbs) - 4498

Front Wheel Size (in) - 20 X 8.5

Rear Wheel Size (in) - 20 X 8.5

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Aluminum

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 47.8

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 14

Rear Brake Rotor Diam x Thickness (in) - 13.8

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Front Head Room (in) - 40.8

Front Leg Room (in) - 43.9

Front Shoulder Room (in) - 66.7

Front Hip Room (in) - 62.5

Second Head Room (in) - 40.4

Second Leg Room (in) - 43.6

Second Shoulder Room (in) - 66

Second Hip Room (in) - 62.6

Wheelbase (in) - 145

Length, Overall (in) - 231.7

Width, Max w/o mirrors (in) - 79.9

Height, Overall (in) - 77.2

Overhang, Front (in) - 37.8

Cargo Box Length @ Floor (in) - 66

Cargo Box Width @ Top, Rear (in) - 65.2

Cargo Box Width @ Floor (in) - 65.2

Cargo Box Width @ Wheelhousings (in) - 50.6

Cargo Box (Area) Height (in) - 21.4

Tailgate Width (in) - 60.3

Cargo Volume (ft?) - 52.8

EPA MPG Equivalent - City - 76.0 (2024)

EPA MPG Equivalent - Hwy - 61.0 (2024)

EPA MPG Equivalent - Combined - 68.0 (2024)

Estimated Battery Range (mi) - 300.0

Usable/net Traction Battery Capacity (kWh) - 123.0

Model Group - F-Series Pickups

Vehicle Segment - Large Pick-up

Vehicle Type - SuperCrew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Country of Origin - United States Ford
